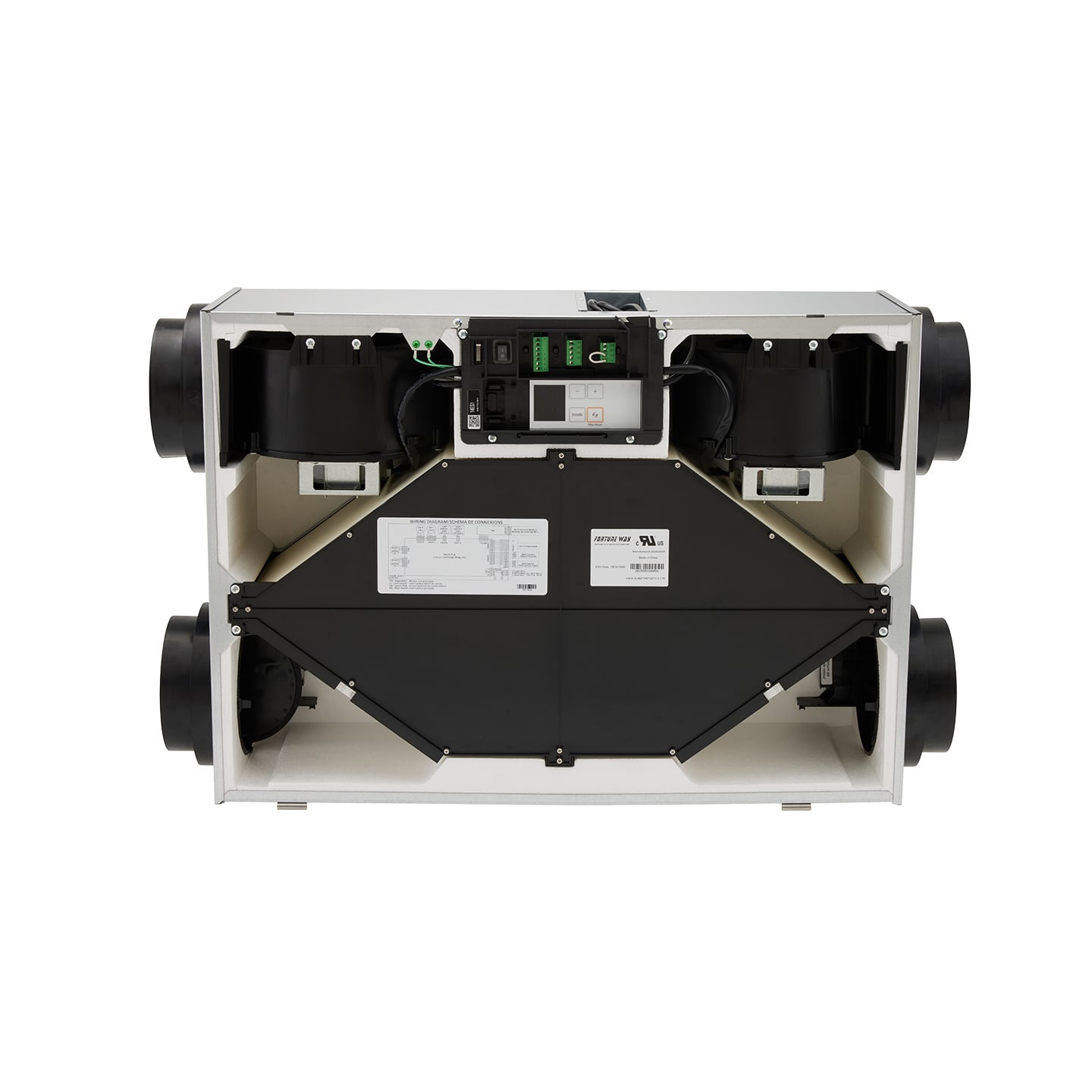

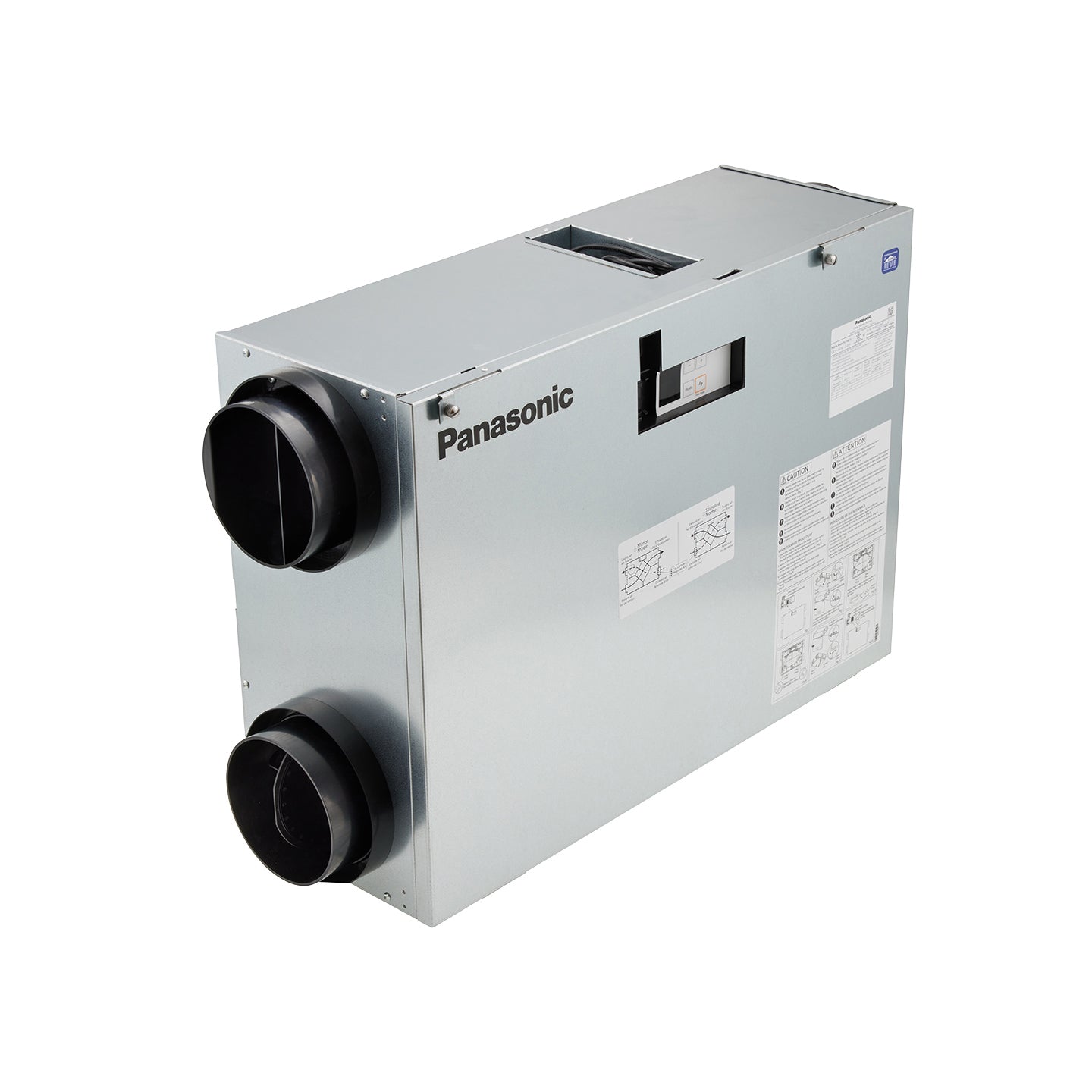

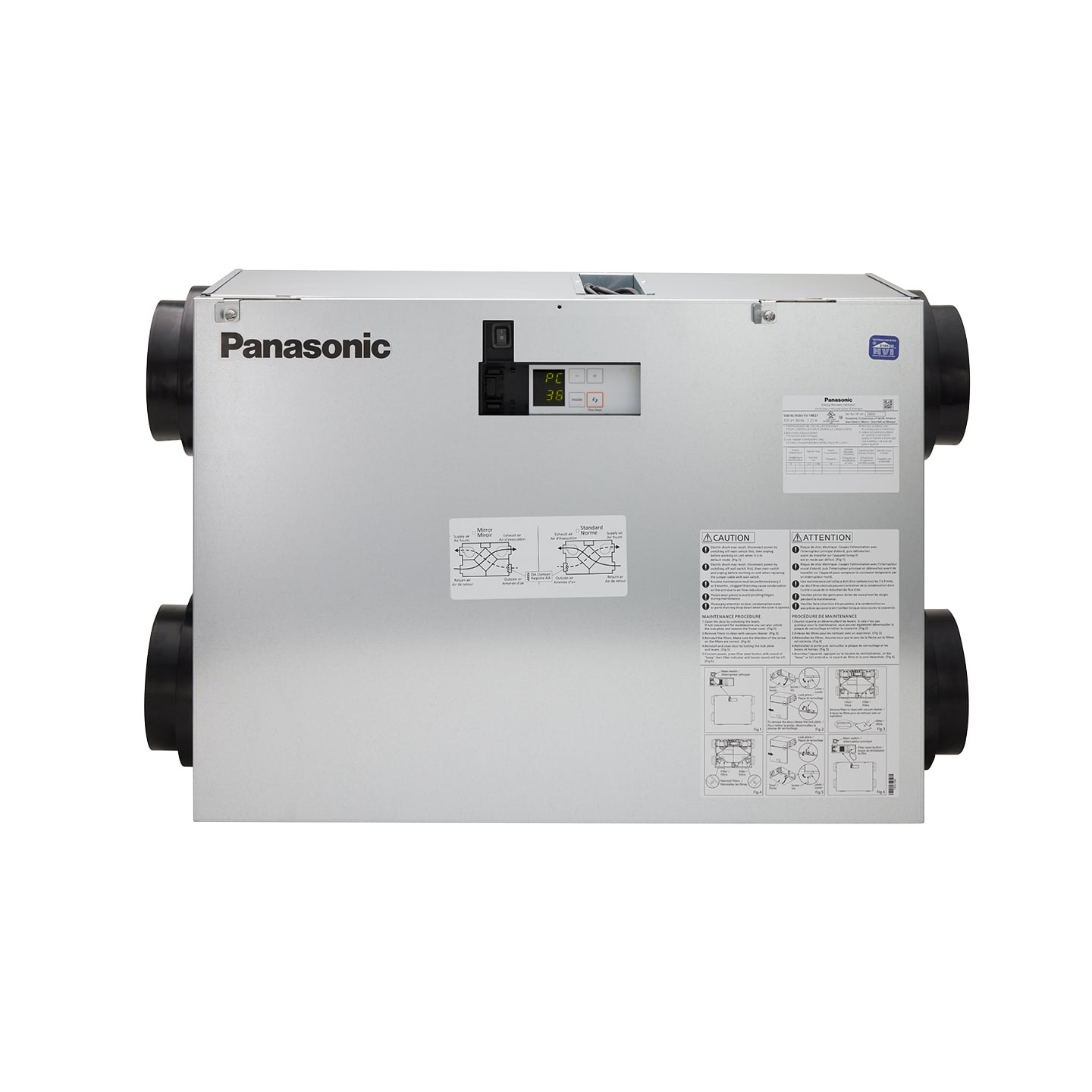

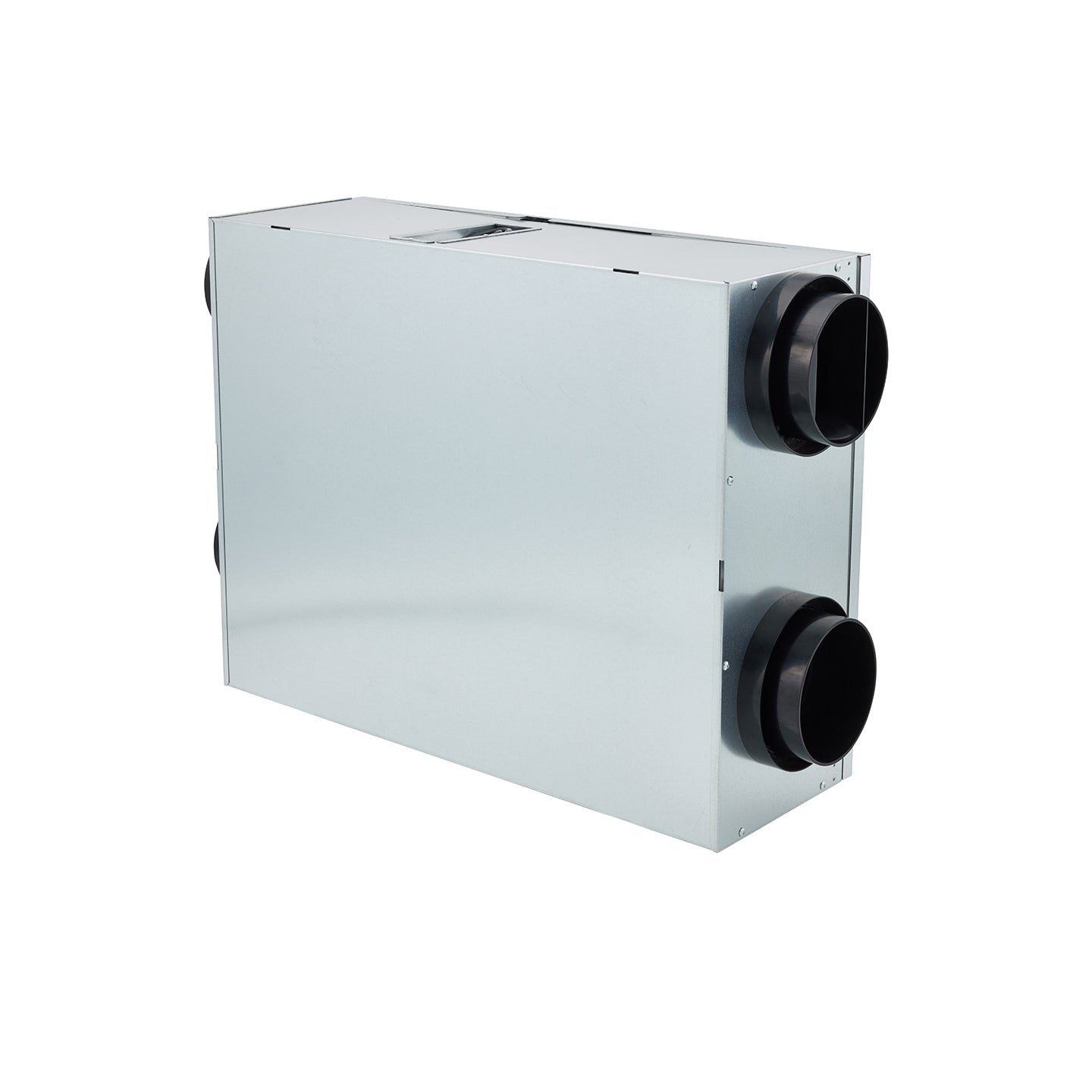

Panasonic FV-11ES1 Intelli-Balance 110 Elite Energy Recovery Ventilator (ERV) 30-110 CFM

Product Description

The PANASONIC FV-11ES1 Intelli-Balance Elite Energy Recovery Ventilator (ERV) is designed for multifamily units and new home build constructions. Customizable for high energy recovery performance, it meets Green Building Code standards. Engineered for versatility and installation flexibility in temperate climate zones. The occupant-controlled boost function can move the ERV fan speed to maximum CFM when activated.

• All models can be adjusted for mirror installation and are equipped with a standard power cord and a hardwire adaptor kit
• Two powerful ECM motors with Smart Flow technology ensure optimum CFM output by overcoming static pressure to effectively remove contaminated air and replace with fresh air
• Multi-speed selector provides customizable airflow to create balanced, positive or negative pressure within the home

Product Highlights

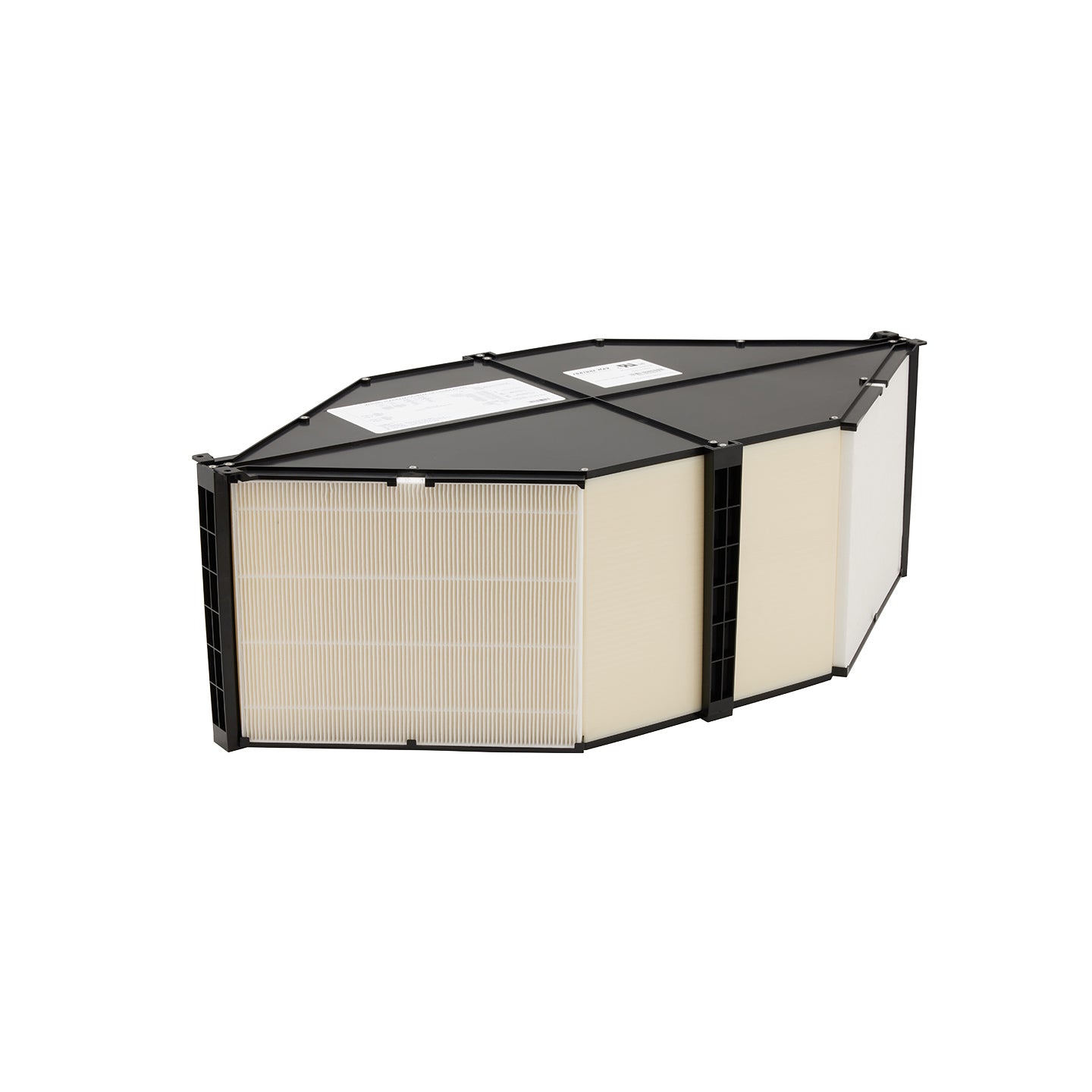

This Energy Recovery Ventilator features a multi-speed selector, ECM motors, and can be adjusted for mirror installation. It also includes MERV 13 filters.

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: FV-11ES1
• Country of Origin: Mexico

Technical Specifications

• Duct Size: 6"
• Air Flow Capacity (CFM): 110, 30
• MERV: MERV 13, MERV 6
• Energy Star Rated: Yes
• Min Airflow (CFM): 30
• Max Airflow (CFM): 110
• Model: FV-11ES1
• Sensible Recovery Efficiency (SRE) (Heat)*: 110CFM/88%
• Total Recovery Efficiency (Cool)*: 110CFM/82%
• Product Type: ERV
• Installation Type: Wall, Ceiling or Floor Mount
• CFMs: 30 - 110
• Amps: NA
• Watts: Varies
• Voltage: 110-120V
• Plug Face: Hardwire Optional
• Type: Centrifugal Inline
• Country of Origin: Mexico
