Product Description

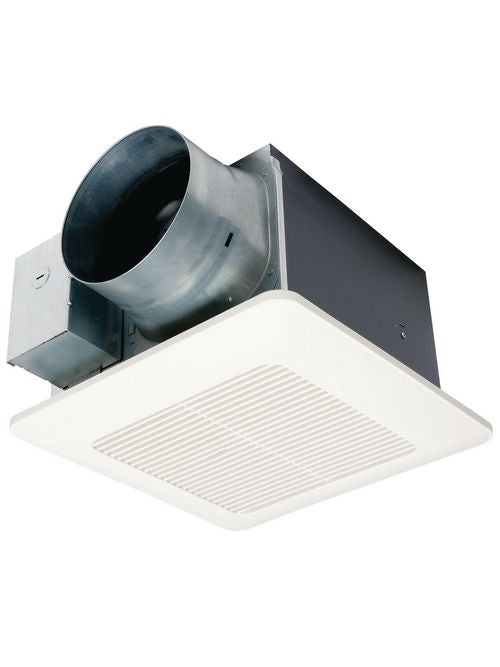

Panasonic FV-1115VQ1 is a ventilation fan designed for ceiling installation. The fan allows for versatile airflow options with settings of one hundred ten, one hundred thirty, or one hundred fifty cubic feet per minute (CFM). This product features a direct current electronically commutated motor (ECM), providing energy efficient operation. It is suitable for bathrooms, laundry rooms, and other ventilation applications, ensuring a comfortable indoor environment.
- Adjustable airflow with pick-a-flow speed selector
- Low noise operation with sound levels below point three sones
- Flexible installation with the included installation bracket
Product Highlights
This fan meets the latest energy efficiency guidelines and certifications, making it an excellent choice for modern building requirements. It includes a built-in damper to reduce backdrafts.
Product Information
Standard Information
-
Brand: Panasonic Eco Products
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: FV-1115VQ1
-
Voltage Rating: 120 VAC
-
Amperage Rating: 0.12 to 0.19 A
-
Frequency Rating: 60 Hz
-
Power Rating: 6.8/9/11.8/12.1/15.7/20.2 W
-
Flow Rate: 110/130/150 CFM
-
Mounting Type: Ceiling
-
Housing Material: Zinc Aluminum Magnesium
-

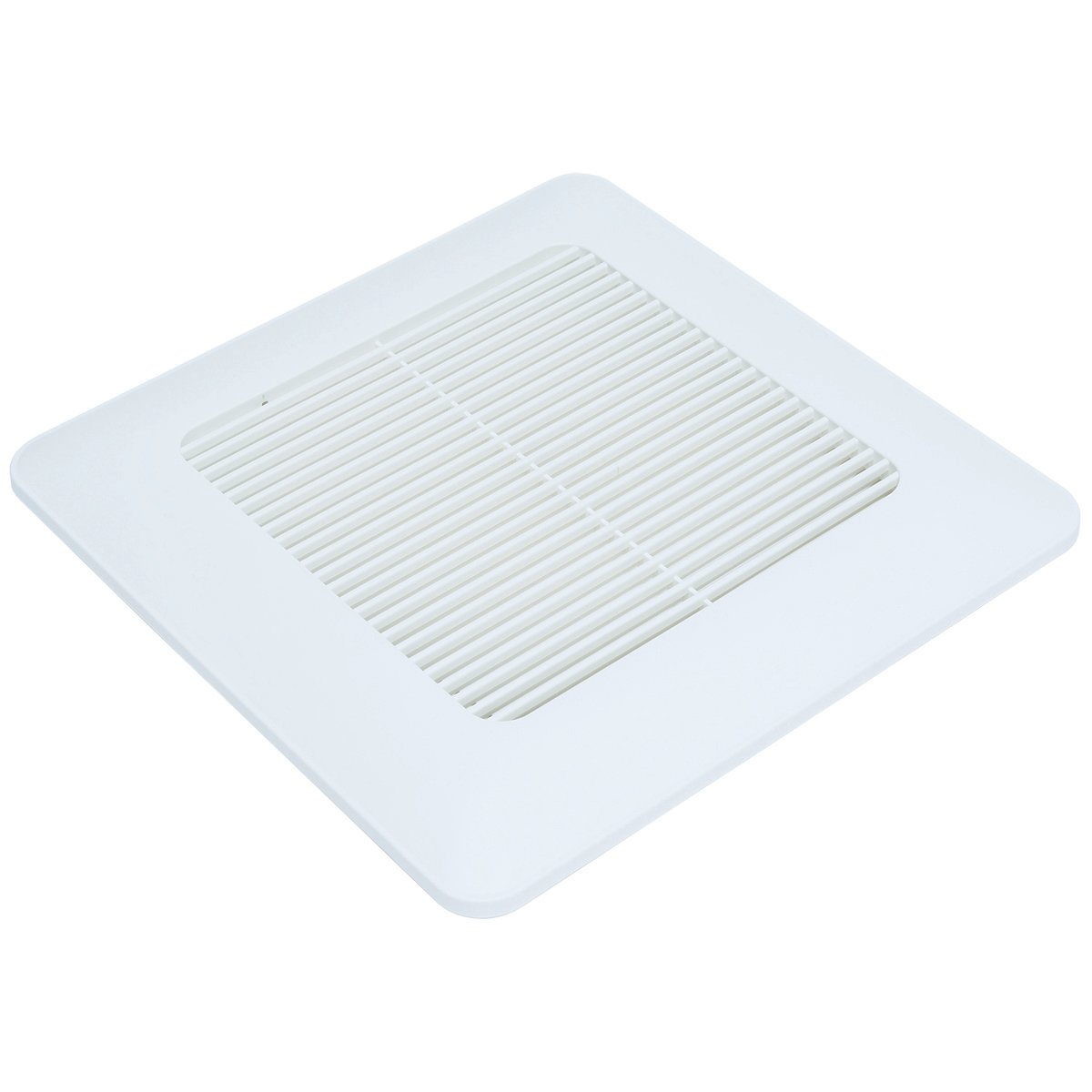

Grille Size: 13 in x 13 in
-
Housing Dimensions: 10-1/4 in length x 10-1/4 in width x 7-3/8 in height
