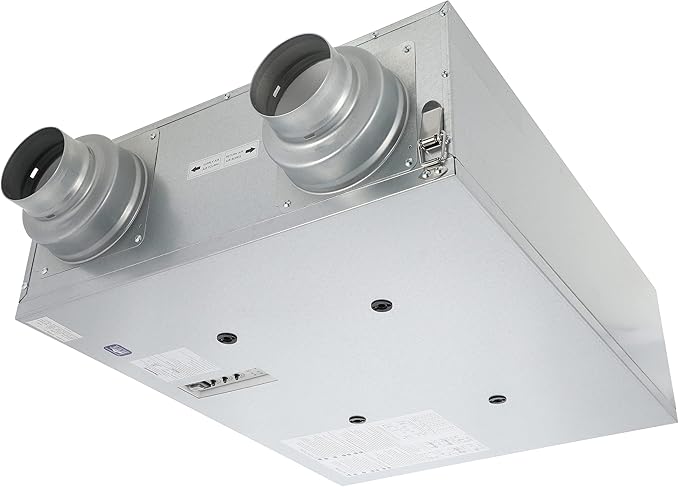

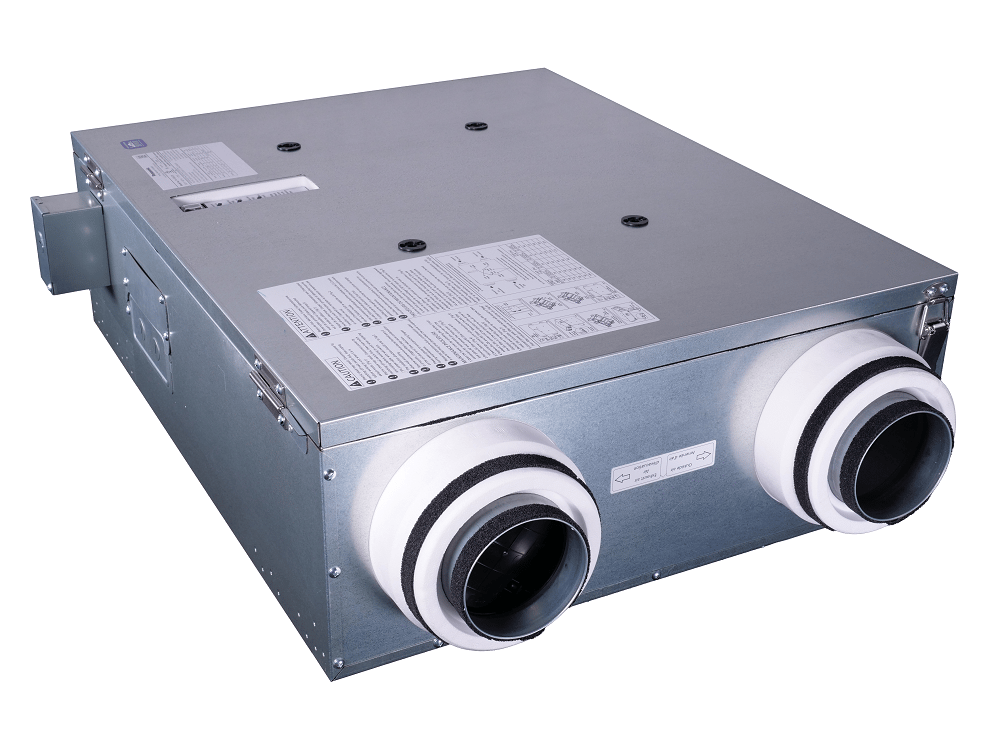

Panasonic FV-10VE2H Intelli-Balance 100 Climate ERV 30 - 100 CFM

Product Description

The Panasonic FV-10VE2H Intelli-Balance 100 is an energy recovery ventilator designed for effective air management in homes. It meets ASHRAE 62.2 standards, ensuring high performance and efficiency. The unit supplies fresh air to replace stale air using a balanced ventilation system.

• Boost function increases fan speed when needed.
• Two DC motors with Smart Flow technology optimize airflow.
• Adjustable multi-speed settings from thirty to one hundred CFM.

Product Highlights

This compact and versatile ERV can be ceiling or wall-mounted, helping to expel moisture and enhance indoor air quality.

Product Information

Standard Information

• Model: FV-10VE2H
• Installation Type: Ceiling Mounted, Wall Mounted

Technical Specifications

• Air Volume Exhaust (CFM): 95 @ 0.1inch SP, 95 @ 0.4inch SP
• Air Volume Supply (CFM): 99 @ 0.1inch SP, 101 @ 0.4inch SP

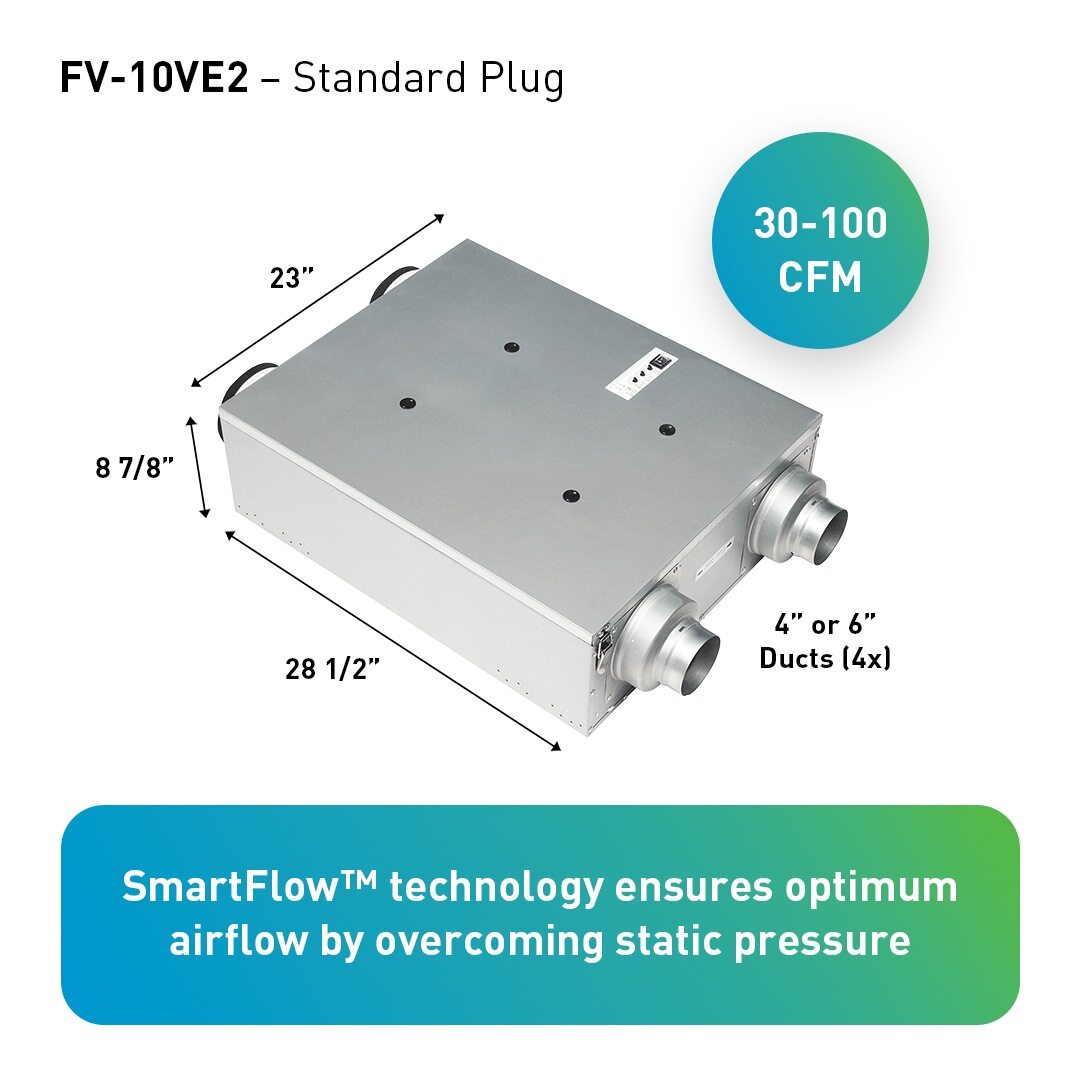

• Duct Diameter: (4) 4inch or 6inch Round
• Power Consumption (Watts): 62 @ 0.1inch SP, 80 @ 0.4inch SP
• Motor Type: (2) DC Motors
• Voltage: 120V
• CFM (High): 100
• Energy Recovery: Yes
