Product Description

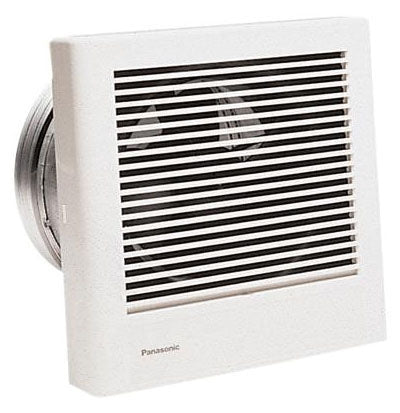

The Panasonic Corporation FV-08WQ1 is a through-the-wall ventilation fan. This fan operates at a voltage rating of one hundred twenty volt AC and offers an airflow rate of seventy cubic feet per minute (CFM). It is designed for residential and light commercial applications where ceiling fan installation is not possible.
- Airflow rate of seventy CFM for effective ventilation.
- Constructed with a rustproof painted galvanized steel housing.
- Includes a thermal cutoff fuse for safety.
Product Highlights
This model is specifically designed for quiet operation, featuring a large double suction blower wheel that moves air efficiently while maintaining a low sound level of one point one sones.
Product Information
Standard Information
-
Brand: Panasonic Corporation
-
Manufacturer: Panasonic
Technical Specifications
-
Voltage Rating: 120 Volt AC 60 Hertz
-
Current Rating: 0.2 Amp
-
Air Flow Rate: 70 CFM
-
Sound Level: 1.1 Sones
-

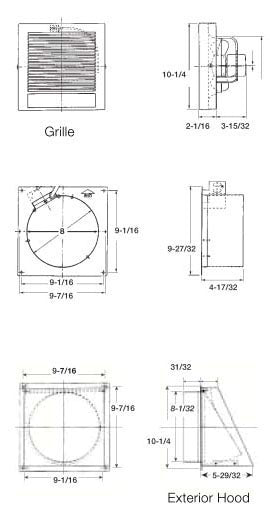

Duct Shape: Round
-
Duct Size: 8 Inch Diameter
-
Grill Shape: Square
-
Grill Size: 10-1/4 Inch Length x 10-1/4 Inch Width
-
Grill Material: ABS Plastic
-
Housing Shape: Square
-
Housing Material: Rustproof Painted Galvanized Steel
-
Power Rating: 18 Watt
-
Speed Rating: 660 RPM
-
Energy Efficiency: 3.9 CFM per Watt
-
Static Pressure Rating: 0.03 Inch WG
