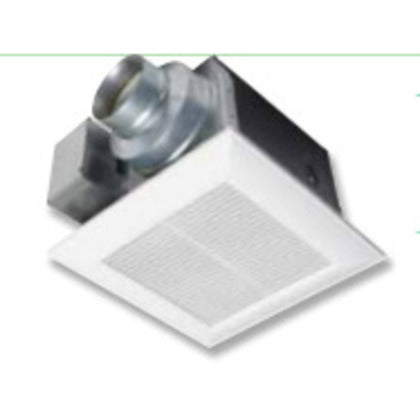

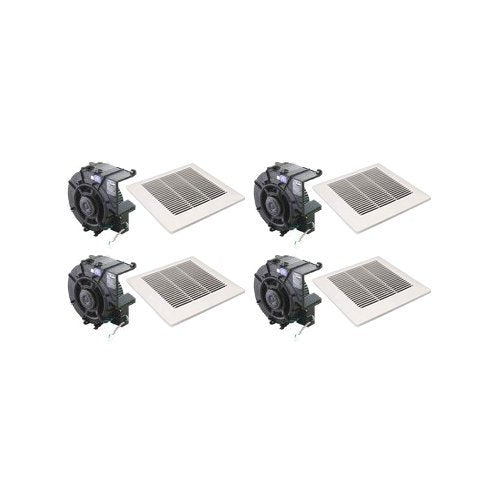

Panasonic FV-08VSB3 WhisperValue, Motor/Grille Assembly 80 CFM Contractor Pack FV-08VS3

Product Description

The Panasonic FV-08VSB3 WhisperValue Motor/Grille Assembly is a low-noise ventilating fan designed for ceiling or wall mount installations. Rated for continuous operation, this 80 CFM unit is ENERGY STAR® certified and HVI listed, ensuring efficient air movement. It operates at 120 volts, 60 Hz, and is UL/cUL listed for tub/shower enclosures when used with a GFCI protected circuit and in insulated ceilings (TYPE I.C). The assembly features a durable galvanized steel body with rust-proof paint.

• Low noise operation at 1 Sone and rated for continuous run, ideal for quiet ventilation.
• ENERGY STAR® rated and HVI certified for energy efficiency and performance.
• UL and cUL listed for tub/shower enclosures with GFCI protected circuits and insulated ceilings (TYPE I.C).

Product Highlights

This Panasonic FV-08VSB3 assembly provides 80 CFM airflow with a 1.0 Sone noise level, featuring a thermal-cutoff fuse motor and a built-in backdraft damper for enhanced safety and performance.

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: FV-08VSB3
• Country of Origin: Japan

Technical Specifications

• Manufacturer: Panasonic Ventilation
• Catalog Number: FV-08VSB3
• Product Type: ELECTRIC_FAN
• Noise Level: 1 Sone
• Amperage: 0.18
• Airflow Capacity: 80 CFM
• Duct Size: 4 inch oval, round compatible
• Energy Star Certified: Yes
• Motor Type: Four-pole totally enclosed condenser motor
• Input Voltage: 120 volts
• Frequency: 60 Hz
• Housing Material: Galvanized steel with rust proof paint
• Grille Material: PP material
• Installation Type: Ceiling or wall mount
• Insulated Ceiling Rating: TYPE I.C
• Grille Finish: White
• Duct Discharge: Horizontal
• Grille Length: 13"
• Grille Width: 13"
• Heater Included: No
• Housing Depth: 3-3/8"
• Housing Height: 10.25"
• Housing Width: 10.25"
• Humidity Sensing: No
• HVI Certified: Yes
• Light Included: No
• Includes Remote: No
• Includes Thermostat: No
• Fan Type: Project Pack
• Housing Shape: Square
• Night Light: No
• RPM: 997
• Speeds: 1
• Approved for Commercial Use: No
• Certifications: ASHRAE, HVI, UL
• Collection: WhisperValue
• Location Rating: Damp Location
• Title 24: Yes
