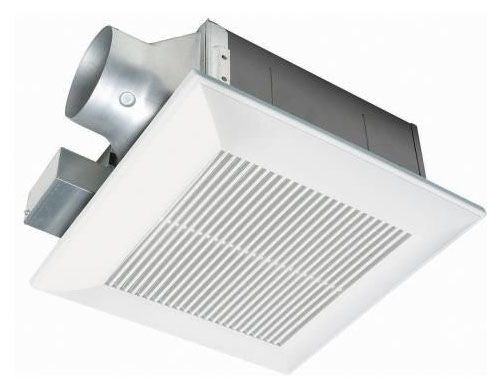

Panasonic FV-08-11VF5 WhisperFit Fan 80/110 CFM Duct Adapter

Product Description

The Panasonic FV-08-11VF5 is a ceiling ventilation fan that features dual airflow settings of eighty or one hundred ten CFM. This model is designed to provide efficient air circulation in bathrooms and other small spaces while minimizing noise. It includes a Pick-A-Flow speed selector allowing for easy adjustments based on ventilation needs.

• Suitable for both new construction and renovations
• Low profile housing fits standard ceiling spaces
• Includes backdraft damper and metal flange for easier installation

Product Highlights

This fan is energy-efficient and equipped with an enclosed DC brushless motor that operates quietly at minimal sound levels.

Product Information

Standard Information

• Brand: Panasonic
• Manufacturer: Panasonic Ventilation

Technical Specifications

• MPN: FV-08-11VF5
• Voltage Rating: 120 Volt AC 60 Hertz
• Current Rating: 0.18 Amp at 80 CFM, 0.23 Amp at 110 CFM
• Air Flow Rate: 80/110 CFM
• Sound Level: 0.3 Sones at 80 CFM, 0.8 Sones at 110 CFM
• Duct Size: 3 or 4 Inch Diameter
• Grill Size: 13 Inch Length x 13 Inch Width
• Housing Size: 10-1/4 Inch Length x 10-1/4 Inch Width x 5-5/8 Inch Height
• Housing Material: Rustproof Epoxy and Polyester Resin Coated 26 Gauge Galvanized Steel
• Approval: UL, CUL, HVI
• Energy Efficiency: 4.2 CFM per Watt
