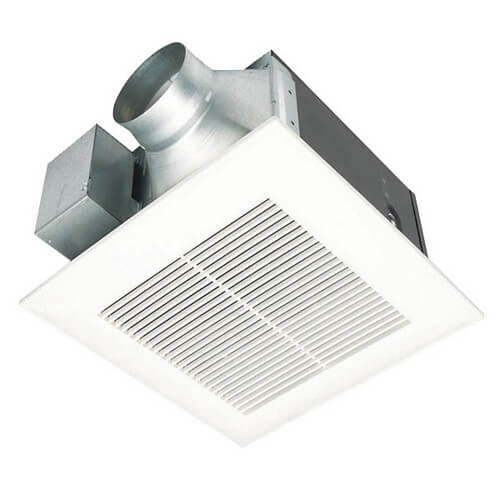

Panasonic FV-05VQ5 Whisper Ceiling Exhaust Fan 50 CFM

Product Description

The PANASONIC FV-05VQ5 WhisperCeiling ENERGY STAR rated exhaust fan is super quiet, energy efficient and easy to install. This model meets ASHRAE 62.2, the ventilation standard required by LEED for Homes, CA Title 24 and other green building standards. It features a totally enclosed AC condenser motor for long-life and energy efficiency.

• Ideal for new and remodel residential applications
• Built-in metal flange provides blocking for penetrations through drywall as an air barrier
• Integrated 4 or 6 in duct adaptor gives you flexibility in duct layout and design

Product Highlights

This exhaust fan is quiet and powerful, perfect for residential applications. It is ENERGY STAR certified and meets various green building standards.

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: FV-05VQ5
• Country of Origin: CN

Technical Specifications

• Type: 1-Phase
• Sones: 0.3
• Flow Rate: 50 cfm
• Current/Amps: 0.09 A
• Duct Diameter: 4 and 6 in
• Housing Width: 10.25 in.
• Mounting Type: Ceiling
• Certifications: ASHRAE 62.2|ENERGY STAR Certified|HVI/LEED Certified|UL Listed|Washington VIAQ|PROP65
• Housing Height: 7-2/5 in
• Housing Length: 10.25 in.
• Motion Sensing: No
• Voltage Rating: 120 VAC
• Grille Material: Polypropylene
• Frequency Rating: 60 Hz
• Housing Material: Galvanized Steel
• Humidity Sensing: No
• Country of Origin: CN
• Wattage Consumption: 11.1 W
• Brand: Panasonic
• Model / MPN: FV-05VQ5
• Application: Bathroom
• Motor: Condenser
• Blower Wheel Type: Sirocco
• Motor Bearing: Ball
• Mount: Ceiling Recessed
• Thermal Fuse Protection: Yes
• Warranty: 3 Year (Parts)
• Airflow: 50 CFM
• Sound Level: Less than 0.3 sones
• Ducting: 4" or 6" round (adapter included)
• EnergyStar Certified: Yes
• CFM: 50
• CFM (High): 50
• Cutout Height: 10.5 in.
• Housing Depth: 7.4 in.
• Max Ventilation Area: 45 sq. ft.
• Heater Included: No
• Includes Remote: No
• Includes Thermostat: No
• Light Included: No
• Fan Type: Bath Fan
• Grille Finish: Whites
• Grille Shape: Square
• Housing Shape: Rectangle
• Series: WhisperCeiling
• Energy Star: Yes
• Location Rating: Wet Location
• Manufacturer Warranty: 3 Year Limited
• Title 24: Yes
• Mounting: Ceiling
• Sone: < 0.3
