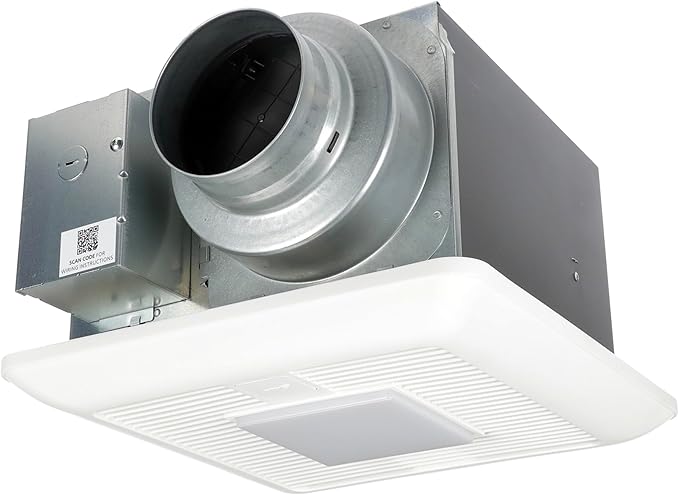

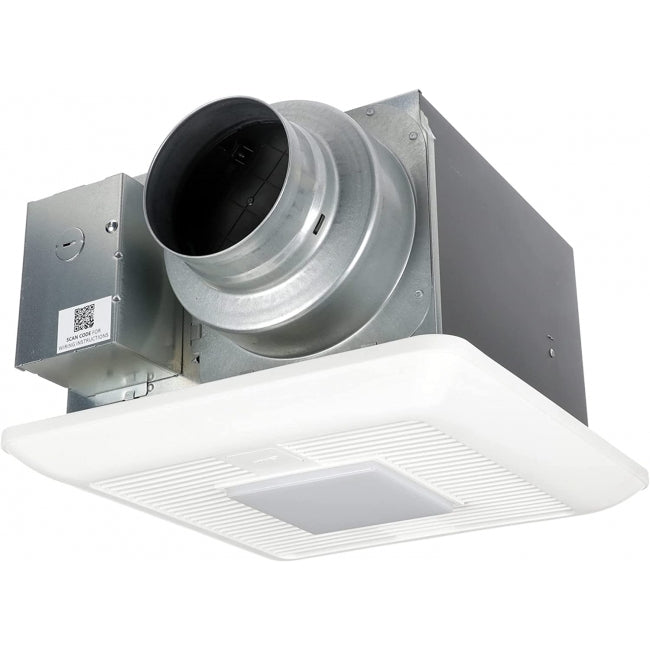

Panasonic FV-0511VKSL2 WhisperGreen Select Fan Multi-Speed 50-80-110 CFM

Product Description

The Panasonic FV-0511VKSL2 WhisperGreen Select fan is designed to enhance indoor air quality in various spaces. It features a Flex-Z Fast bracket for flexible installation. This fan is suitable for bathrooms, laundry rooms, and garages. It complies with ASHRAE 62.2 and ENERGY STAR standards.

• Pick-A-Flow airflow technology allows selection of airflow (50-80-110 CFM).
• Includes Plug 'N Play modules for customization.
• Equipped with an ECM motor and SmartFlow technology for efficient ventilation.

Product Highlights

This fan provides multiple airflow options and enhances ventilation precision.

Product Information

Standard Information

• Model: FV-0511VKSL2
• Fan Type: Fan/Light - LED

Technical Specifications

• Advanced Features: Pick-A-Flow Airflow Selector, ECM motor with SmartFlow technology, Multi-Speed with Time Delay, Dimmable LED Light
• Air Volume Supply (CFM): @0.1= 30,40,50,60,70,80,90,100,110 @0.25= 30,41,50,60,70,80,90,101,110 @0.375= 30,40,50,60,69,78,90,99,103
• Noise (Sones): 0.3 – 0.8
• Power Consumption (Watts): Ranges from 2.5 to 10.5 depending on CFM rating
• Energy Efficiency (CFM/Watt): Ranges from 10.5 to 16.2
• Current (Amps): Ranges from 0.04 to 0.11
• Power Rating (V/Hz): 120/60
• Motor Type: DC (ECM)
• ENERGY STAR Certified: Yes
• Duct Diameter: 4 inches
• Mounting Options: Horizontal
• Warranty: 6 years for ECM motor, 3 years for other parts
• Indoor/Outdoor Usage: Indoor
• Housing Material: Galvanized Steel
• Dimensions: 11 inches x 10.25 inches x 7.375 inches
• Weight: 11.464 pounds
