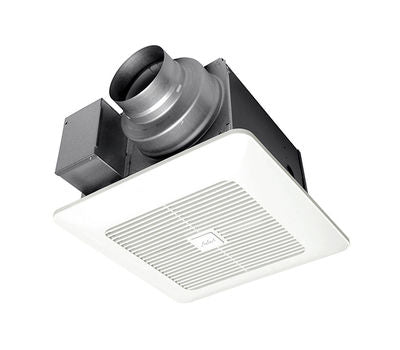

Panasonic FV-0511VKS2 WhisperGreen Select Fan 50-80-110 CFM

Product Description

The Panasonic FV-0511VKS2 WhisperGreen Select is a whole house indoor air quality solution designed for effective ventilation. Its single-hinged Flex-Z Fast bracket ensures flexible installation in various settings. The fan features an environmentally safe housing made from 26 gauge Zinc-Aluminum-Magnesium (ZAM) material. It includes a dual access junction box simplifying the wiring process. This fan is suitable for bathrooms, laundry rooms, sun rooms, basements, or garages.

• Built-in speed selector ranging from 50 to 110 CFM with SmartFlow technology
• Environmentally friendly housing construction
• Flexible and easy installation with improved Flex-Z Fast single-hinge bracket

Product Highlights

The Panasonic FV-0511VKS2 is designed for versatility and efficiency in ventilation needs.

Product Information

Standard Information

• Model: FV-0511VKS2
• Fan Type: Fan only

Technical Specifications

• Advanced Features: Pick-A-Flow Airflow Selector, ECM motor with SmartFlow technology, Multi-Speed with Time Delay
• Air Volume Supply (CFM): 30-110 at various static pressures
• Noise (Sones): Less than 0.3 to 0.8 at specified CFM
• Power Consumption (Watts): Ranges from 2.4 to 9.9 depending on speed
• Energy Efficiency (CFM/Watt): Up to 16.7
• Power Rating (V/Hz): 120/60
• Motor Type: DC (ECM)
• ENERGY STAR Certified: Yes
• Other Approvals: ASHRAE 62.2, LEED, CA T-24, CALGreen
• Duct Diameter: 4 inches
• Mounting Options: Horizontal
• Ventilation Design Approach: Bathroom Exhaust Fan
• Warranty: 6 years for ECM Motor, 3 years for other parts
• Industry: Residential, Light Commercial
• Radiation Damper Available: Yes, PC-RD05C5
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
