Panasonic FV-0510VSL1 WhisperValue DC Fan and Light 50-80-100 CFM Replacement MPN

Product Description

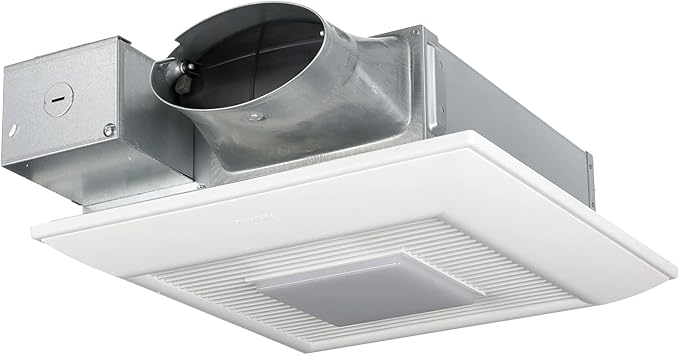

The Panasonic FV-0510VSL1 WhisperValue DC Fan and LED Light is a low-profile bathroom ventilation fan designed for residential use. This unit features an ECM motor with SmartFlow technology and a Pick-A-Flow Airflow Selector, allowing users to adjust airflow to 50, 80, or 100 CFM based on specific needs. The slim housing fits easily into ceilings or walls, accommodating tight spaces typical of a two by four stud configuration.

• Customizable airflow with Pick-A-Flow selector for tailored ventilation.
• SmartFlow technology automatically adjusts fan speed for consistent performance.
• Low-profile design with a housing depth of three and three-eighths inches.

Product Highlights

This fan is ideal for both continuous and spot ventilation in various settings, such as single-family homes, multi-family buildings, and renovations.

Product Information

Standard Information

• Brand: Panasonic
• MPN: FV-0510VSL1

Technical Specifications

• Model: FV-0510VSL1
• Air Volume Exhaust (CFM): 50 @ 0.1inch SP, 100 @ 0.1inch SP
• Current (Amps): 50 CFM= 0.08A, 100 CFM= 0.18A
• Duct Diameter: 4inch Oval
• Energy Efficiency (CFM/Watt): 100 CFM = 8.2 CFM/W
• Noise (Sones): 100 @ 0.1inch SP = 0.9
• Voltage: 120V
• Weight: 9.92

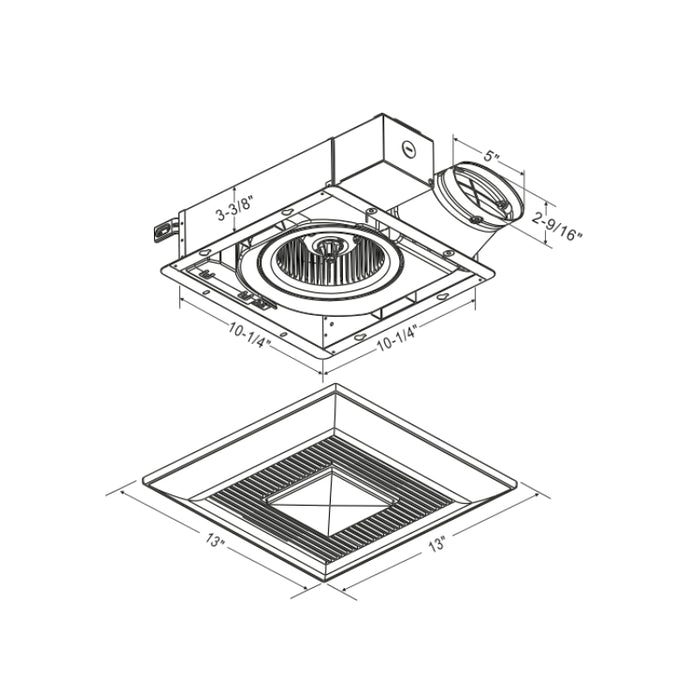

• Dimensions (L x W x H): 10.25inch x 10.25inch x 3.38inch
• Warranty: 6 year DC Motor, 3 Year Parts
