Panasonic FV-0510VS1 Ventilation Fan 50-80-100 CFM Replacement MPN FV-0510VS1

Product Description

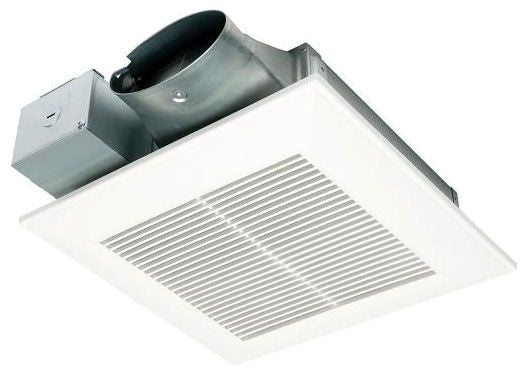

The Panasonic FV-0510VS1 is a ventilation fan designed for ceiling or wall installation. It is a low-profile fan rated for continuous operation and is ENERGY STAR certified. This fan operates on a 120 Volt AC supply and can switch between 50, 80, or 100 CFM using its Pick-A-Flow technology.

• Power consumption ratings of 4.4 W at 50 CFM, 7.2 W at 80 CFM, and 11.1 W at 100 CFM.
• Includes features such as a built-in backdraft damper, metal flange, and L-shaped installation bracket.
• Sound ratings of less than 0.3 sones at 50 CFM and 1.3 sones at 100 CFM ensures quiet operation.

Product Highlights

This fan is ideal for residential applications, including single-family and multi-family homes. The fan's compact design fits easily into tight spaces. It is easy to install and meets various standards, including ASHRAE 62.2 and California Title 24.

Product Information

Standard Information

• Manufacturer: Panasonic
• UPC: 88517030629

Technical Specifications

• Air Flow Rate: 50/80/100 CFM
• Power Rating: 120 VAC
• Current Rating: 0.39 A
• Sound Level: 0.9 Sones at 0.1 Inch WG, 1.3 Sones at 0.25 Inch WG
• Grill Size: 13 Inch Length x 13 Inch Width
• Duct Size: 4 Inch Diameter
• Housing Material: 26 Gauge Galvanized Steel
• Approval: UL (Canada and US), CUL, HVI
• Energy Efficiency: 9.2 CFM per Watt at 100 CFM
