Panasonic BR2325 Coin Type Primary Lithium Battery 3 V (23.0 mm) BR2325-1HB

Product Description

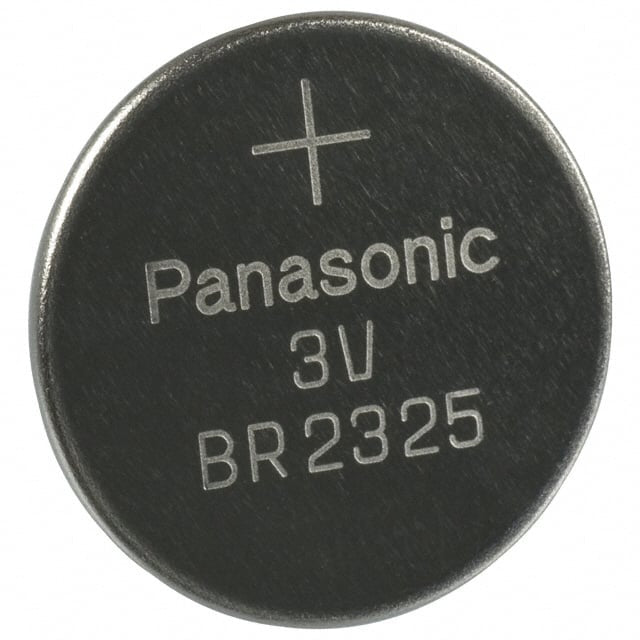

Panasonic BR2325 is a coin-type primary lithium battery with a nominal voltage of 3 V and a nominal capacity of 165 mAh. The cell measures 23.0 mm in diameter and 2.5 mm in height, weighs approximately 3.0 g, and has a very low standard continuous drain of 0.03 mA. Operating temperature range is -40 to 85 °C and the cell is certified to IEC 60086-4 and UL 1642.

• Nominal voltage 3 V and nominal capacity 165 mAh in a 23.0 mm coin cell form factor
• Very low standard continuous drain: 0.03 mA (30 μA); typical for low-drain devices
• Operating temperature -40 to 85 °C; certified to IEC 60086-4 and UL 1642 (File No.: MH12210)

Product Highlights

3 V, 165 mAh coin lithium cell; 23.0 mm x 2.5 mm; 0.03 mA standard drain; IEC 60086-4 and UL 1642 certified

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: BR2325
• Country of Origin: Indonesia
