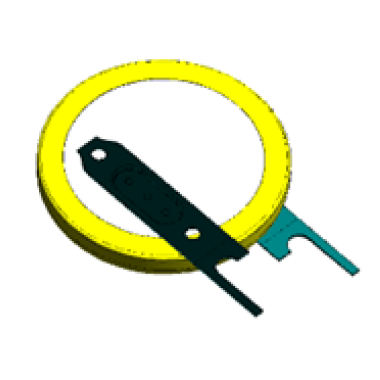

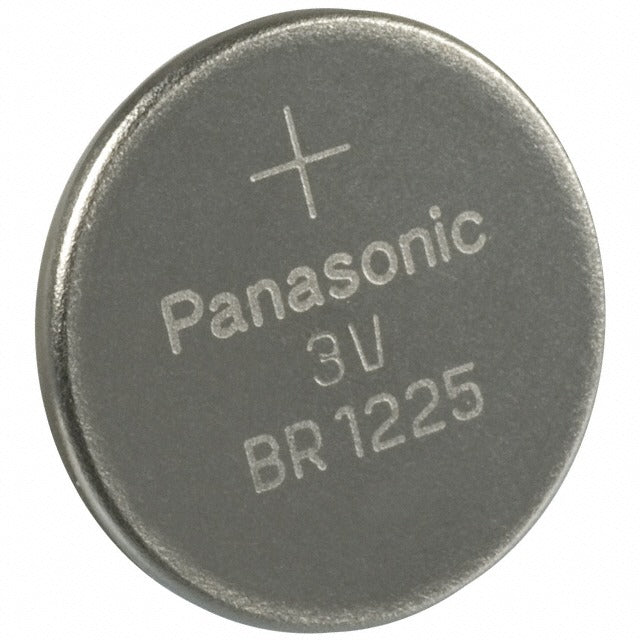

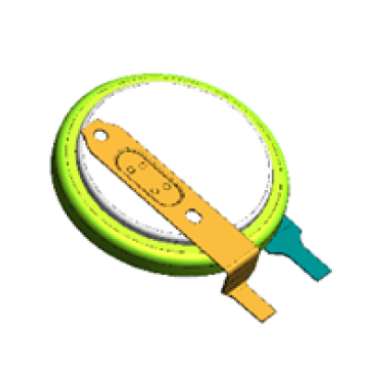

Panasonic BR1225 Primary Lithium Coin Battery 3V (12.5mm x 2.5mm)

Product Description

Panasonic BR1225 is a coin-type primary lithium battery providing a nominal voltage of 3 V and a nominal capacity of 48 mAh. The cell measures 12.5 mm diameter by 2.5 mm height, weighs approximately 0.8 g, and supports a typical continuous load of 0.03 mA. Operating temperature range is -40 to 85 °C. The battery conforms to IEC 60086-4 and UL 1642 (File No. MH12210).

• Nominal voltage 3 V and nominal capacity 48 mAh for low-drain applications
• Physical size 12.5 mm diameter × 2.5 mm height; weight about 0.8 g; typical continuous load 0.03 mA
• Wide operating range −40 to 85 °C; IEC 60086-4 and UL 1642 certified

Product Highlights

3 V BR-series primary lithium coin cell, 48 mAh, 12.5×2.5 mm, low continuous drain, IEC 60086-4 and UL 1642 certified

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: BR1225
