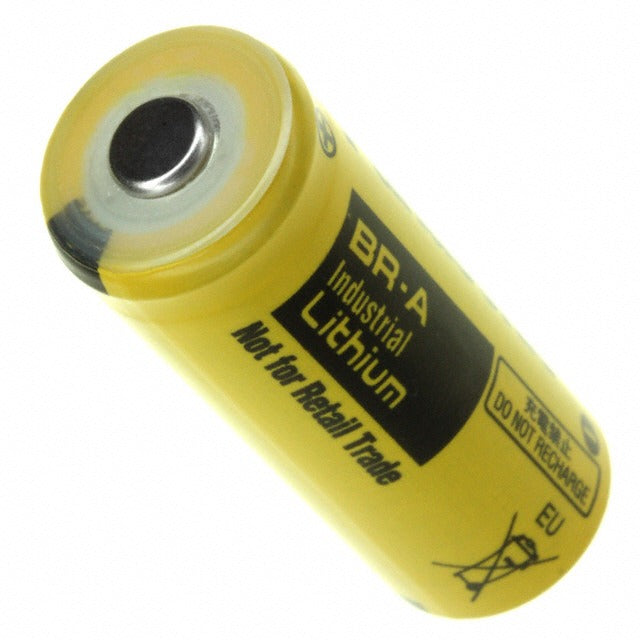

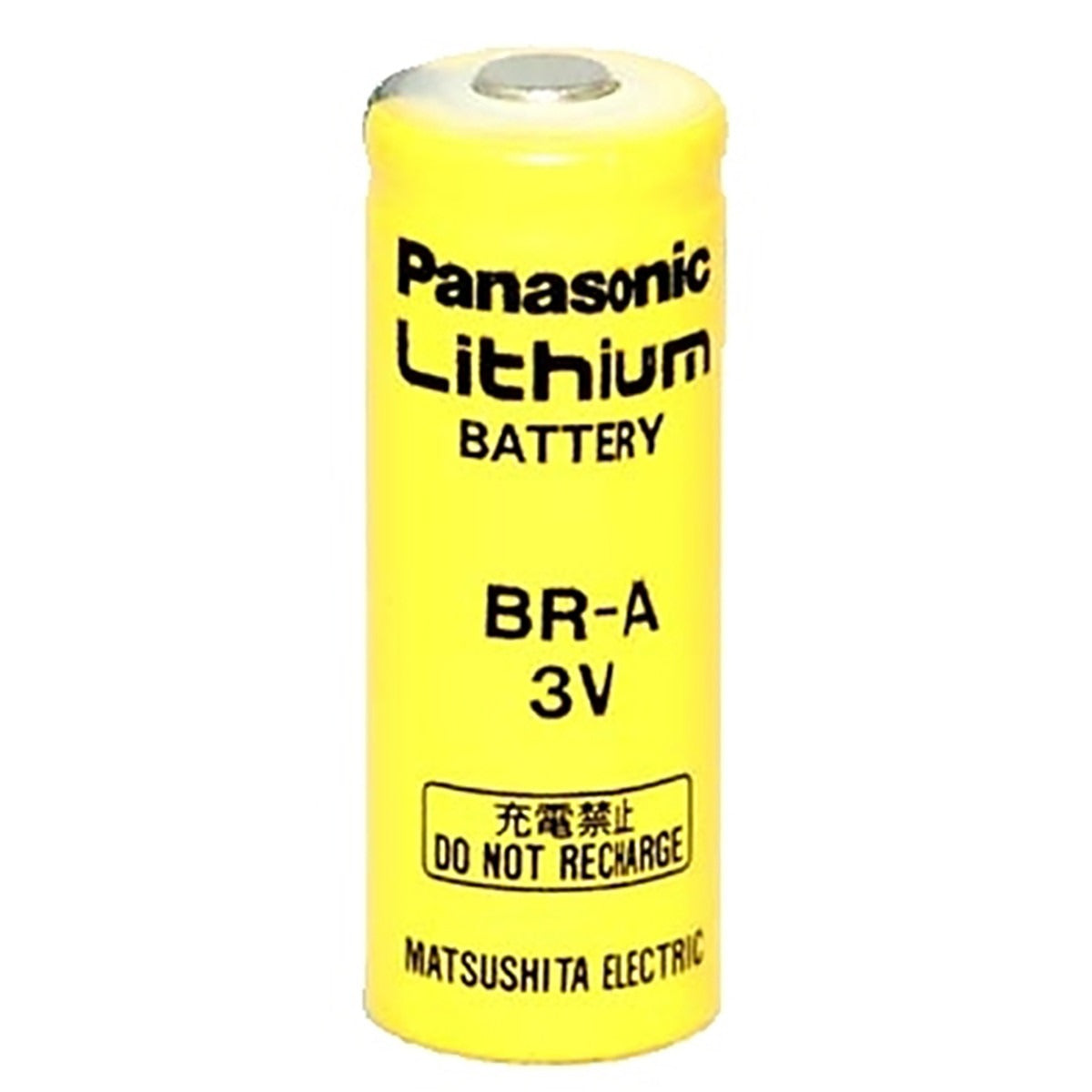

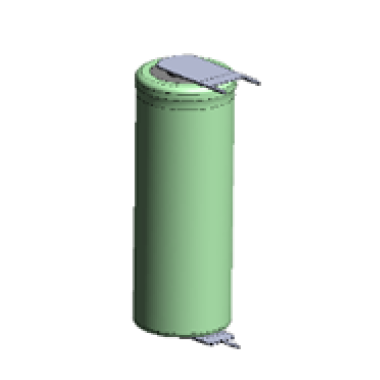

Panasonic BR-A Primary Lithium Battery 3 V (A size / 17.0 x 45.5 mm) BR17455

Product Description

The Panasonic BR-A is a primary cylindrical lithium battery (MPN BR-A) with a nominal voltage of 3 V and nominal capacity of 1800 mAh. It is designed for long-life power in low-drain continuous applications and industrial memory backup, with a typical continuous drain of 2.5 mA and pulse capability up to 1.0 A. The cell measures 17.0 mm diameter by 45.5 mm height, weighs about 18 g, and operates from -40 to 85 °C; it is IEC 60086-4 and UL 1642 certified.

• Nominal 3 V voltage and 1800 mAh nominal capacity; primary non-rechargeable lithium cell
• Continuous discharge 2.5 mA; pulse discharge up to 1.0 A; button-top (extending) termination
• Dimensions 17.0 mm x 45.5 mm (A size); weight ~18 g; operating temperature -40 to 85 °C; IEC 60086-4 and UL 1642 certified

Product Highlights

A-size primary lithium cell, 3 V / 1800 mAh, 17.0 x 45.5 mm, continuous drain 2.5 mA, IEC 60086-4 and UL 1642 certified

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: BR-A
• Country of Origin: Japan
