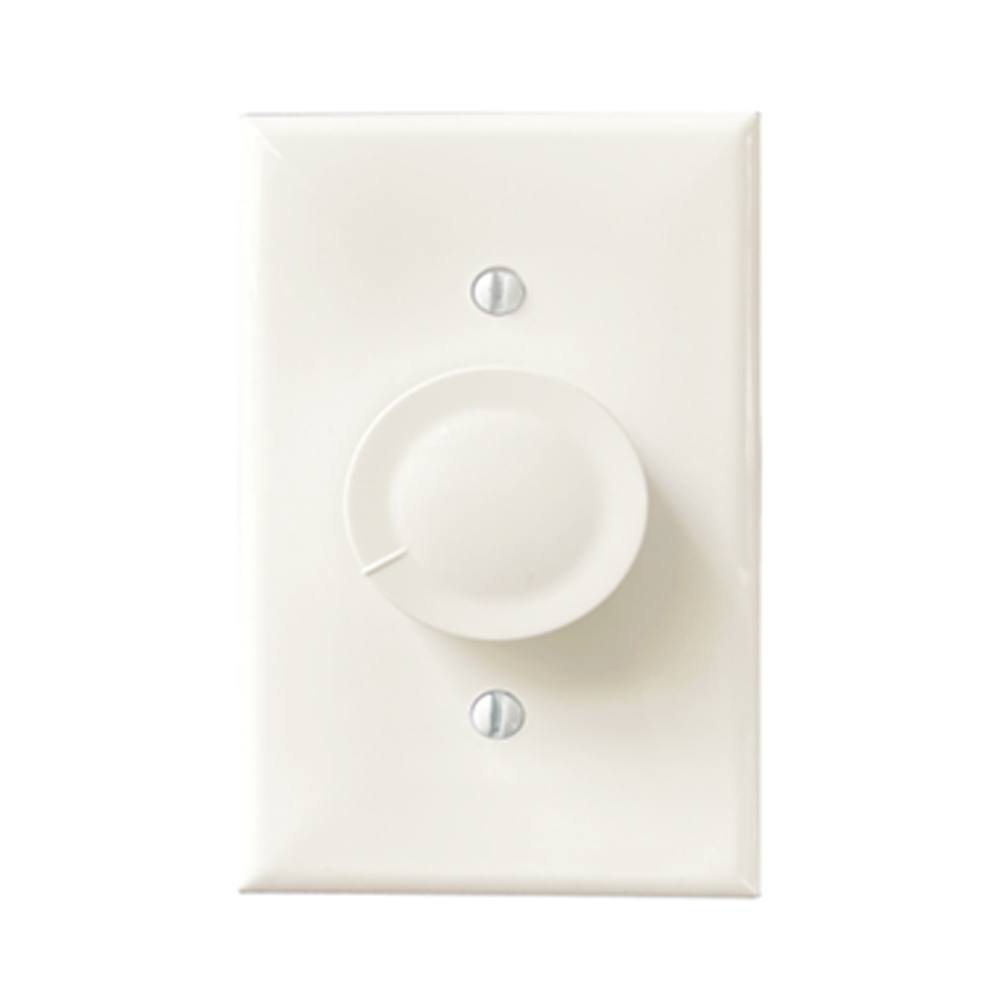

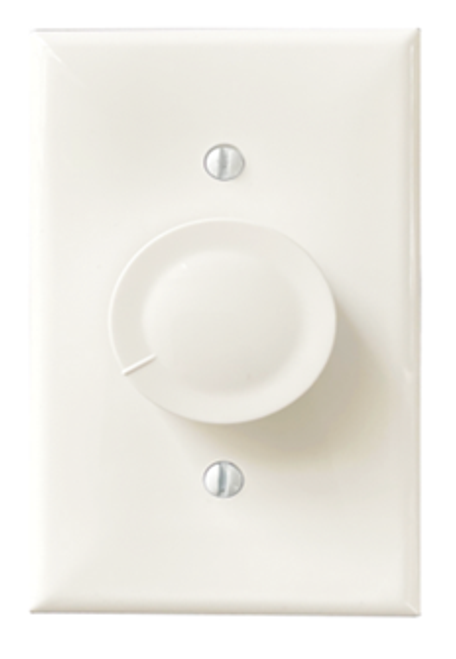

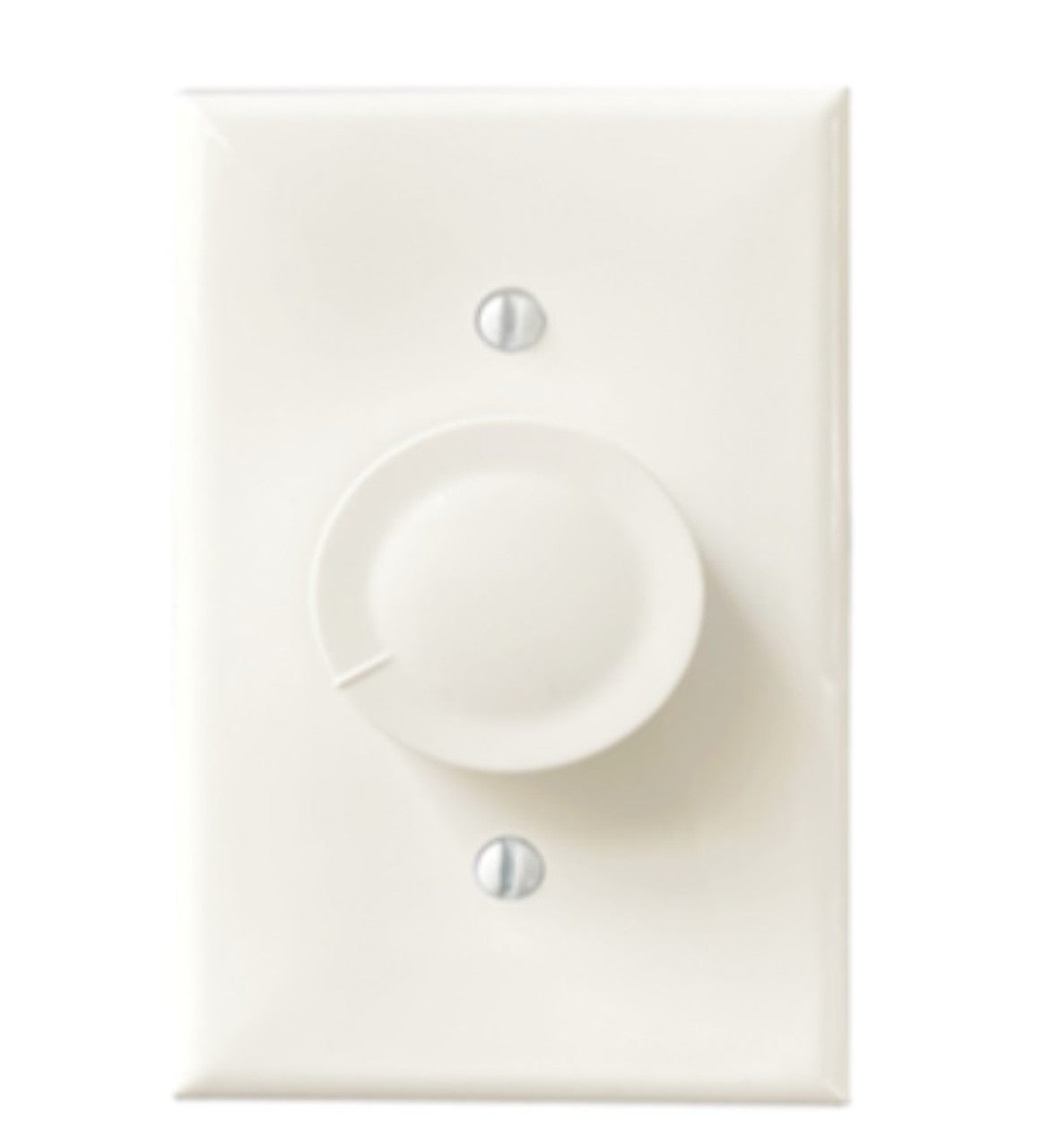

PANASONIC AVR-5 Atmosphere Solid State Variable Speed AC Motor Control

Product Description

The PANASONIC AVR-5 is a solid state variable speed AC motor control designed for inline fans that operate on one hundred fifteen volts alternating current. This unit features an On/Off line switch and includes a high-gain RFI noise suppression filter to reduce electrical interference. It provides adjustable speed settings to optimize airflow as needed, making it suitable for both residential and commercial ventilation applications.

• Fully variable speed control
• Rotary-style fan control for ease of use
• Impact-resistant thermoplastic housing for durability

Product Highlights

The AVR-5 is a reliable and efficient option for controlling fan speed and enhancing ventilation in various environments.

Product Information

Standard Information

• Brand: Panasonic
• Model: AVR-5

Technical Specifications

• Voltage: One hundred fifteen volts
• Current: Five amps
• Frequency: Fifty/sixty hertz
• Control Type: Rotary variable speed with On/Off switch
• Mounting: Fits standard two inches by four inches wall box
• Max Amperage: Five amps
• Max Operating Temperature: One hundred four degrees Fahrenheit
• Depth: One and fifteen-sixteenth inches
• Height: Three inches
• Width: Six inches
• Material: Plastic
• Approved for Commercial Use: Yes
• Housing Material: Impact-resistant thermoplastic
• Outdoor Approved: No
