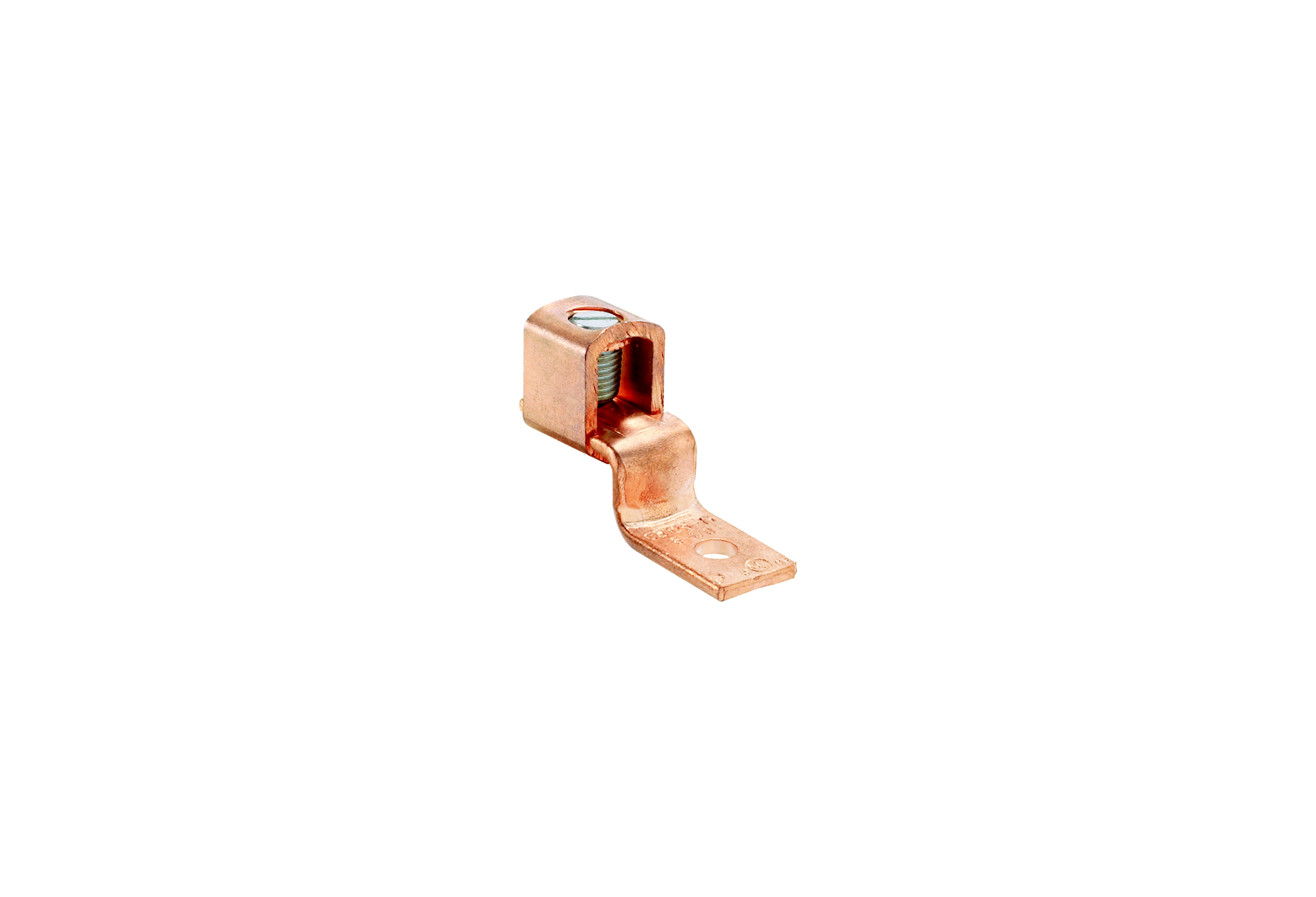

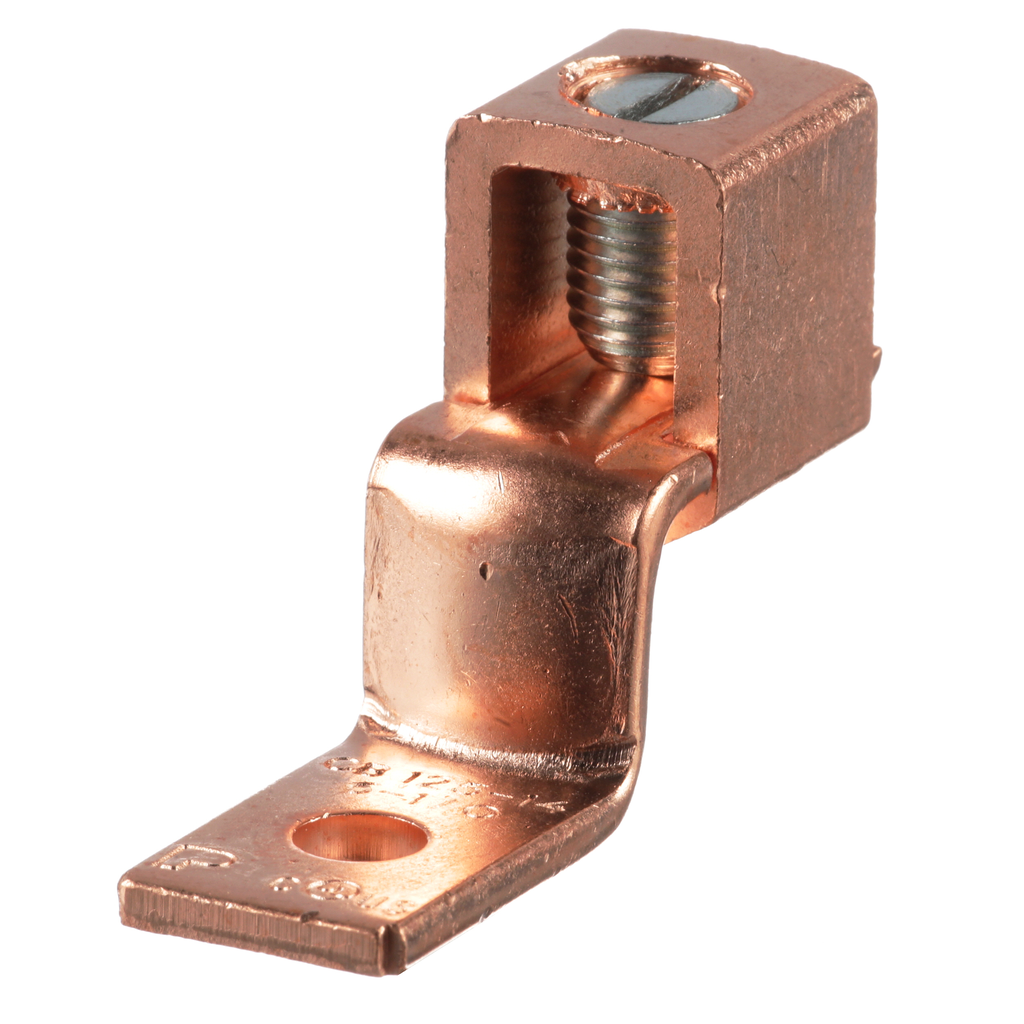

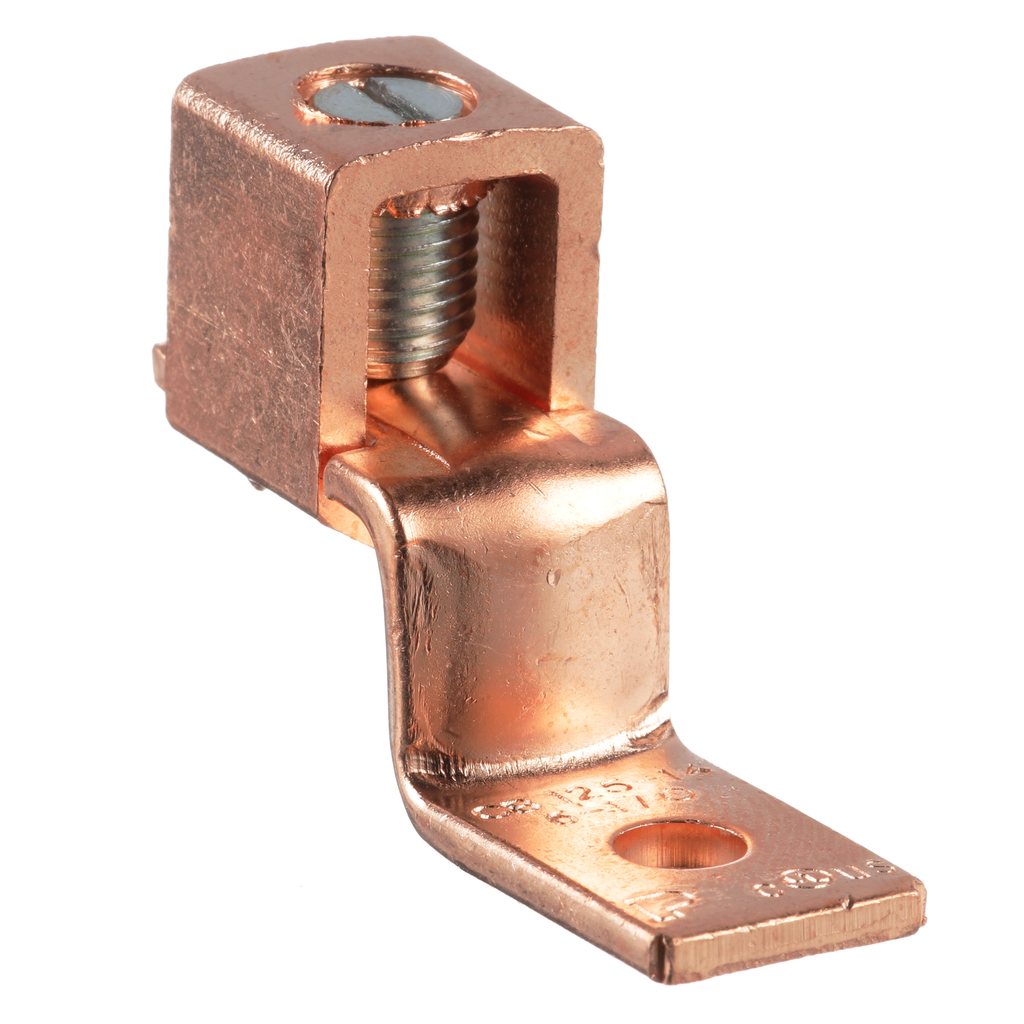

Pan-Lug CB125-14-QY 1-Hole 1-Barrel Offset Floating Tongue Copper Mechanical Lug

Product Description

The Pan-Lug CB125-14-QY is a mechanical copper lug designed for reliable wire connections. This product features a single barrel with an offset floating tongue. It accommodates wire sizes from #6 to 1/0 AWG with a stud hole size of one-fourth inch.

• Made from copper for effective conductivity
• Rated for a maximum voltage of six hundred volts
• Suitable for various electrical applications

Product Highlights

This lug is ideal for secure wire connections in electrical systems.

Product Information

Standard Information

• Brand: Pan-Lug
• Manufacturer: Panduit Corp

Technical Specifications

• Catalog Number: CB125-14-QY
• Material: Copper
• Amperage: 125 Amp
• Voltage: 600 Volt
• Stud Size: 1/4 Inch
• Overall Length: 1.98 inches
• Height: 0.9 inches
• Tongue Type: Offset Floating
• Number of Holes: 1 Hole
• Tongue Width: 0.62 inches
• Tongue Thickness: 0.11 inches
• Temperature Rating: 90 C
• Country of Origin: Mexico
