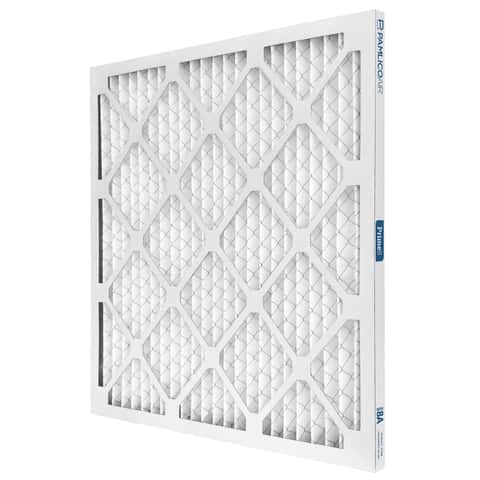

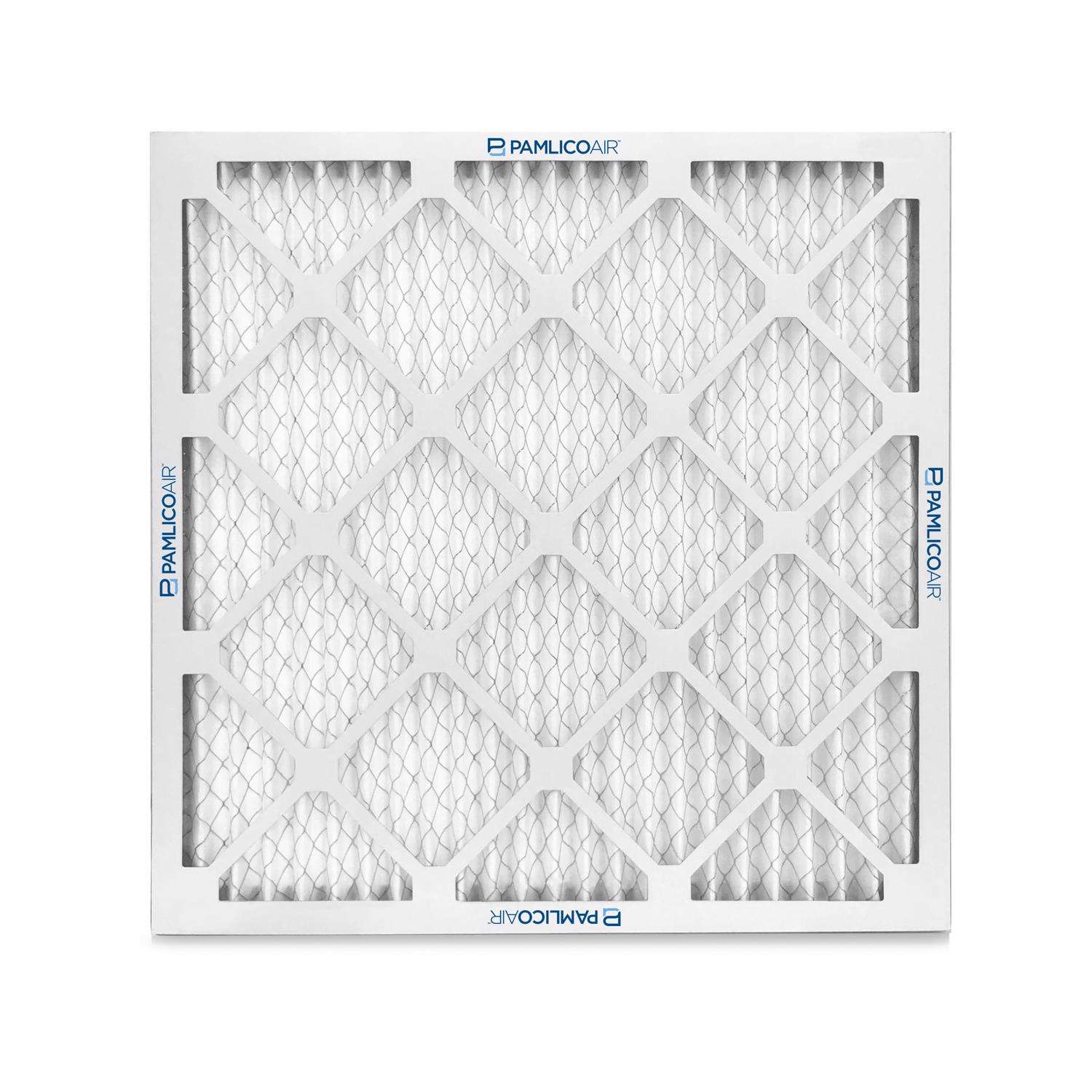

Pamlicoair 21208-011630 Pleated Filter 16 inchesx30 inchesx1 inches (Case Qty: 12)

Product Description

The PAMLICOAIR 21208-011630 is a pleated filter designed to provide high efficiency and high dust holding capacity with low pressure drop. This extended surface air filter performs at superior levels compared to standard pleated filters. It has a MERV 8A rating per ASHRAE Test Standards 522-Appendix J and is ANSI/UL 900 Classified. The filter is made with synthetic media.

• MERV 8A-medium efficiency
• Extended surface
• High dust holding capacity

Product Highlights

This pleated filter features wire supported mechanical media and a moisture resistant beverage board frame. It has a maximum operating temperature of 180 deg F and is UL 900 Classified.

Product Information

Standard Information

• Brand: PAMLICOAIR
• Manufacturer Part Number: 21208-011630

Technical Specifications

• MPN: 21208-011630
• Brand: PAMLICOAIR
• Depth: 1 in
• Domestic/Import: Domestic
• Filter Type: Pleated
• Final Resistance: 1 in-WG
• Height: 30 in
• Initial Resistance: 0.25 in-WG
• MERV: 8
• Media Material: Synthetic
• Pleats per Linear Feet: 13
• Rated Velocity: 300 fpm
• Series: Prime8 Series
• Temperature Rating: 180 deg F
• Width: 16 in
