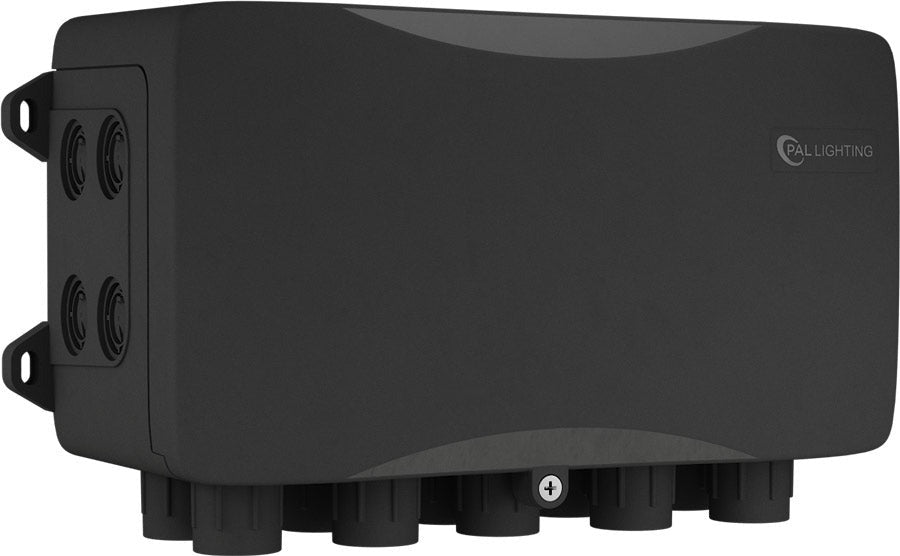

Pal Lighting 64-pcr-3dmx-500-8z Dmx Led Controller 500W 8Z

Product Description

The PAL LIGHTING 64-pcr-3dmx-500-8z is a DMX-protocol LED light controller designed for multi-zone architectural and commercial pool or landscape lighting installations. Rated at 500 watts and 24 volts, it supports control of up to 8 independent zones, allowing installers to segment and address lighting circuits separately over a single DMX signal path. Optional remote and Wi-Fi accessories are available but not included. This controller is installed by licensed electricians and pool lighting technicians working on low-voltage DMX lighting systems.

The 64-pcr-3dmx-500-8z fits into EvenGlow LED lighting installations where zone-level DMX control is required. Typical applications include commercial pool decks, water features, and architectural accent lighting where individual zone programming and dimming are part of the design. The 8-zone capacity makes it suitable for medium-to-large installations that require discrete channel control without running separate controllers per zone. No integrated Wi-Fi or app remote is built in, though optional accessories can add those capabilities.

Key Features

• DMX control protocol for industry-standard lighting system integration
• 500-watt capacity handles substantial LED load across multiple circuits
• Supports up to 8 independently addressable lighting zones
• 24-volt operating voltage compatible with low-voltage LED fixtures
• Optional remote and Wi-Fi expansion available for added control flexibility

Compatibility

Designed for use with PAL LIGHTING EvenGlow DMX LED lighting systems requiring multi-zone controller hardware.

Installation Notes

Installation should be performed by a licensed electrician familiar with low-voltage DMX wiring practices and applicable NEC requirements. Power down all connected circuits before making any wiring connections. DMX signal polarity and termination must be observed per the DMX512 standard to avoid signal degradation across zones. Consult the manufacturer wiring diagram for proper zone and load terminal assignments before energizing the controller.
