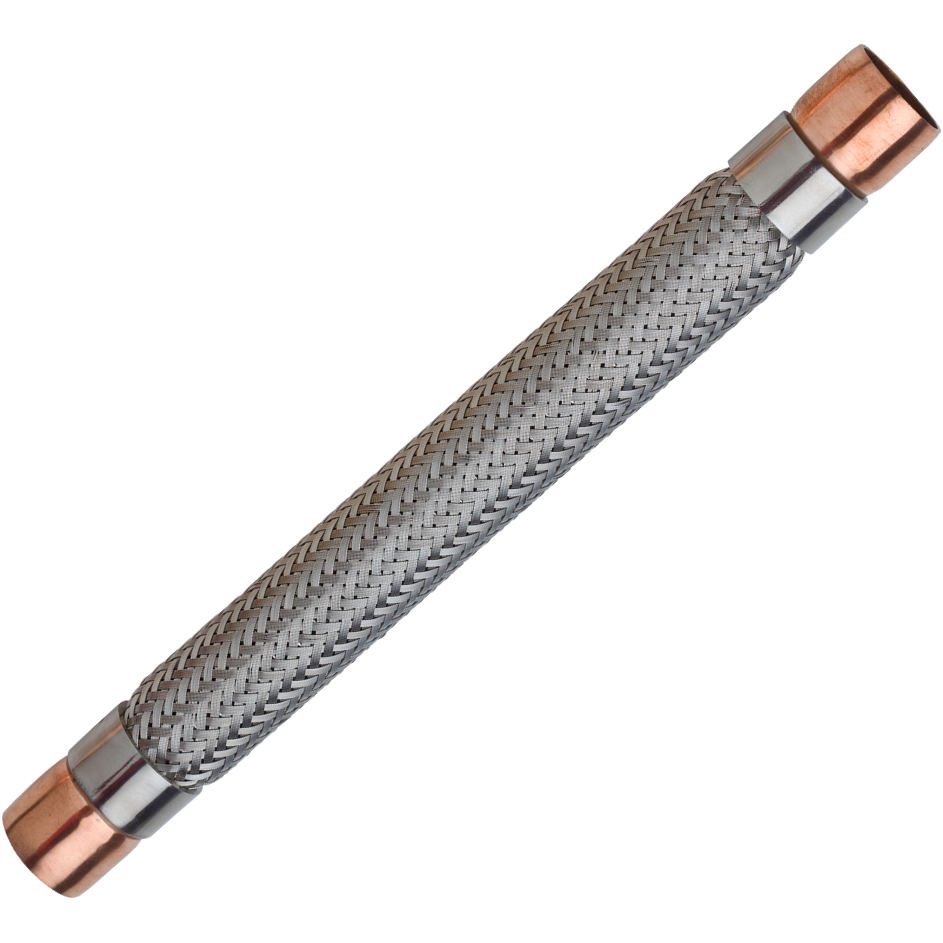

Packless VAFS-9 Vibration Absorber 13 Inch Length

Product Description

The PACKLESS VAFS-9 vibration absorber, with a 13 inch length, is designed for installation on refrigerant suction and discharge lines. Constructed from stainless steel tubing, braid, and copper connections, it is pressure and vacuum tested, cleaned, dehydrated, and sealed in plastic film. It is suitable for air conditioning, heating, and refrigeration systems.

• Made in USA
• Suitable for Air Conditioning, Heating and Refrigeration Systems
• Complies with UL, CE, and ISO 9001 Standards

Product Highlights

This vibration absorber dampens compressor vibration, is UL recognized, and compatible with A1, A2L, and A3 refrigerants.

Product Information

Standard Information

• Brand: PACKLESS
• Manufacturer Part Number: VAFS-9
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: VAFS-9
• Item: Vibration Absorber
• Size: 13 Inch Length
• Material: Stainless Steel (Tube, Braid, Ferrule), Copper (Connection)
• Used On Item: Suction and Discharge Lines of Air Conditioning, Heating and Refrigeration System
• Applicable Standard: UL (Canada and US), CE, ISO 9001
• End Connection: 1-1/8 Inch Internal Diameter x 29/32 Inch Length
• Tube Size: 8-7/8 Inch Length
• Flexible Tube Size: 1 Inch Internal Diameter
• Pressure Rating: 650 PSIG (Working), 3250 PSIG (Burst)
• Category: HVAC/R & Fans
• Manufacturer Name: Packless
• Series/Model: VAFS
• UNSPSC Code: 40101700
• Max Pressure: 650
• Vendor: PACKLESS
• MfgNum: VAFS-9
• Main Category: Refrigeration
• SubCat: Vibration Eliminators
• ItemNum: VAFS-9
• Vendor Name: PACKLESS
• Model: VAFS-9
• Tube Material: Stainless Steel
• Braid Material: Stainless Steel
• Ferrule Material: Stainless Steel
• Connection Material: Copper
• A - Connection Size (ID): 1 1/8 in
• B - Connection Length: 29/32 in
• C - Tube Length: 8 7/8 in
• D - Total Length: 13 in
• Flexible Tube Size (ID): 1 in
• Working Pressure: 650 psig
• Burst Pressure: 3250 psig
• UL Recognized Number: VAFS-9
• Brand: PACKLESS
• Country of Origin: United States
