Packless VAFS-6 Vibration Absorber 3/4 Inch

Product Description

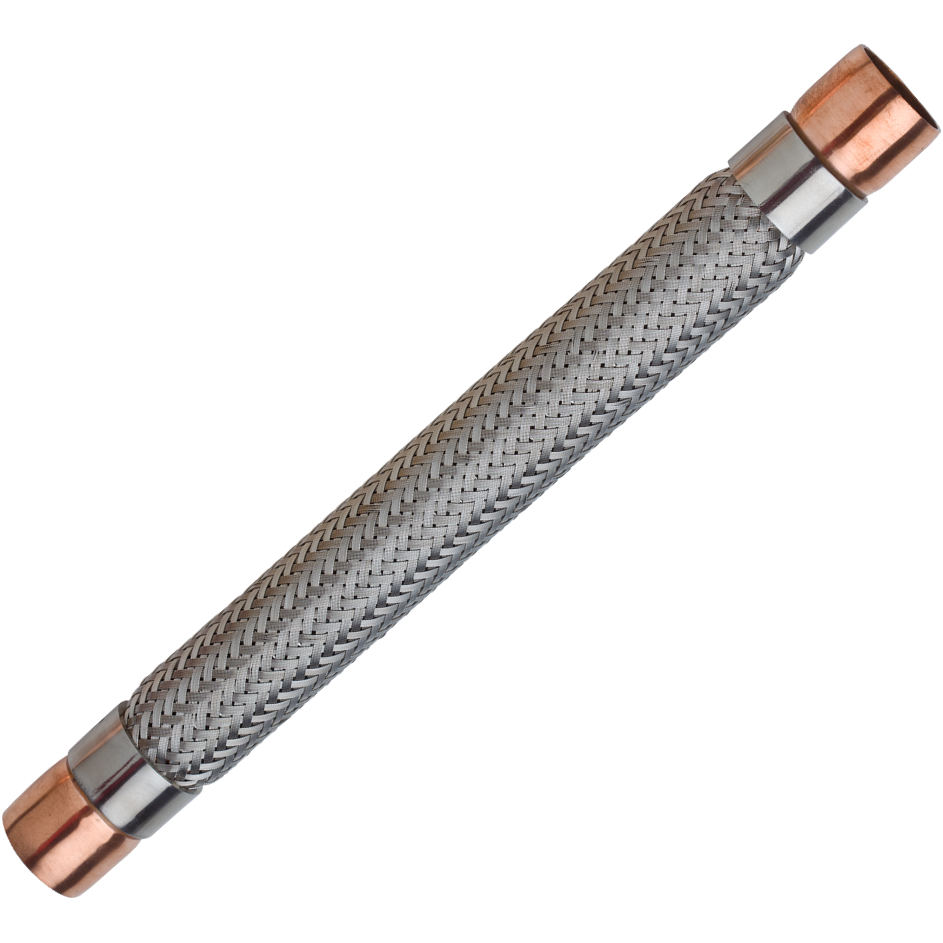

The PACKLESS VAFS-6 vibration absorber is designed for installation in the suction and discharge lines of air conditioning, heating, and refrigeration systems. It is constructed from stainless steel (tube, braid, ferrule) and copper (connection). This vibration absorber is pressure and vacuum tested, cleaned, dehydrated, and sealed in plastic film.

• Made in USA
• Suitable for Air Conditioning, Heating, and Refrigeration Systems
• Complies with UL, CE, and ISO 9001 Standards

Product Highlights

Designed to dampen compressor-induced vibration in system piping, the VAFS-6 is compatible with all HFC, HCFC, and CFC refrigerants.

Product Information

Standard Information

• Brand: PACKLESS
• Manufacturer Part Number: VAFS-6
• Country of Origin: USA

Technical Specifications

• Item: Vibration Absorber
• Size: 10-1/2 Inch Length
• Category: HVAC/R & Fans
• Material: Stainless Steel (Tube, Braid, Ferrule), Copper (Connection)
• UNSPSC Code: 40101700
• Series/Model: VAFS
• Used On Item: Suction and Discharge Lines of Air Conditioning, Heating and Refrigeration System
• Applicable Standard: UL (Canada and US), CE, ISO 9001
• Additional Information: End Connection 3/4 Inch Internal Diameter x 5/8 Inch Length; Tube Size 7-7/16 Inch Length; Flexible Tube Size 5/8 Inch Internal Diameter; Pressure Rating 650 PSIG (Working), 3250 PSIG (Burst)
• Manufacturer Part Number: VAFS-6
• Manufacturer Name: Packless
• End Connection: 3/4 Inch Internal Diameter x 5/8 Inch Length
• Tube Size: 7-7/16 Inch Length
• Flexible Tube Size: 5/8 Inch Internal Diameter
• Pressure Rating: 650 PSIG (Working), 3250 PSIG (Burst)
• Actual I.D.: 3/4"
• Flex Tubing I.D. A: 5/8"
• Max Working Pressure: 650 PSIG
• Max Pressure: 650
• Tube Material: Stainless Steel
• Braid Material: Stainless Steel
• Ferrule Material: Stainless Steel
• Connection Material: Copper
• Connection Type: OD
• Length: 10-1/2 in
• Manufacturer: Packless Industries
• Model No.: VAFS-6
• Working Pressure: 650 psig 45 bar
• Burst Pressure: 3250 psig 224 bar
• A - Connection Size (ID): 3⁄4 in 19.1 mm
• B - Connection Length: 5⁄8 in 15.9 mm
• C - Tube Length: 7 7⁄16 in 188.9 mm
• D - Total Length: 10 1⁄2 in 266.7 mm
• Flexible Tube Size (ID): 5⁄8 in 15.9 mm
