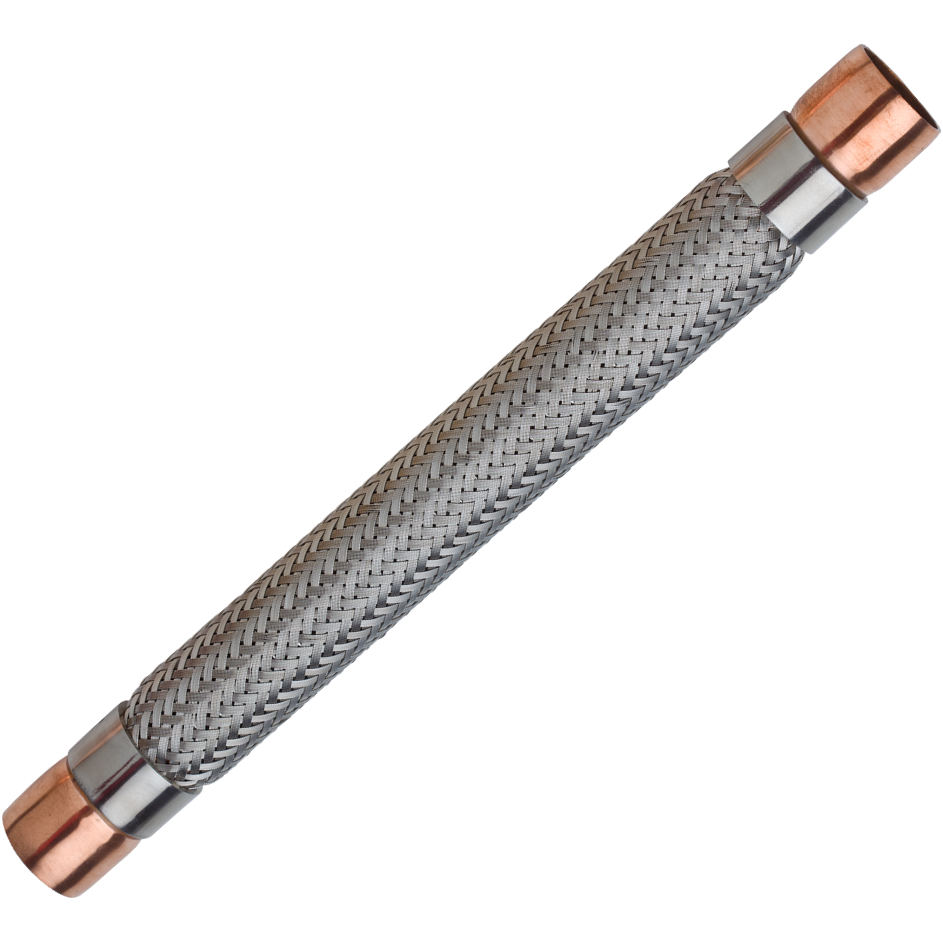

Packless VAFS-5 Vibration Absorber 5/8 Inch

Product Description

The PACKLESS VAFS-5 vibration absorber is designed for installation in the suction and discharge lines of air conditioning and refrigeration systems. It is constructed from stainless steel tubing and braid, with copper connections. This vibration absorber is suitable for use with HFC, HCFC, and CFC refrigerants. Its 9-3/4 inch length helps dampen compressor-induced vibration.

• Made of stainless steel and copper
• Suitable for air conditioning, heating, and refrigeration systems
• Complies with UL, CE, and ISO 9001 standards

Product Highlights

The PACKLESS vibration absorber is pressure and vacuum tested, cleaned, dehydrated, and sealed in plastic film.

Product Information

Standard Information

• Brand: PACKLESS
• Manufacturer Part Number: VAFS-5
• Country of Origin: USA

Technical Specifications

• Item: Vibration Absorber
• Size: 9-3/4 Inch Length
• Material: Stainless Steel (Tube, Braid, Ferrule), Copper (Connection)
• Used On Item: Suction and Discharge Lines of Air Conditioning, Heating and Refrigeration System
• Applicable Standard: UL (Canada and US), CE, ISO 9001
• End Connection: 5/8 Inch Internal Diameter x 1/2 Inch Length
• Tube Size: 7-3/16 Inch Length
• Flexible Tube Size: 1/2 Inch Internal Diameter
• Pressure Rating: 650 PSIG (Working), 3250 PSIG (Burst)
• Manufacturer Name: Packless
• Manufacturer Part Number: VAFS-5
• Series/Model: VAFS
• UNSPSC Code: 40101700
• Actual I.D.: 5/8"
• Flex Tubing I.D. A: 1/2"
• C: 7 3/16"
• D: 9 3/4"
• Max Working Pressure: 650 PSIG
• B: 1/2"
• Max Pressure: 650
• MfgNum: VAFS-5
• Main Category: Refrigeration
• Category: Refrigerant Handling
• SubCat: Vibration Eliminators
• ItemNum: VAFS-5
• Model: VAFS-5
• Tube Material: Stainless Steel
• Braid Material: Stainless Steel
• Ferrule Material: Stainless Steel
• Connection Material: Copper
• A - Connection Size (ID): 5/8 in 15.9 mm
• B - Connection Length: 1/2 in 12.7 mm
• C - Tube Length: 7 3/16 in 182.6 mm
• D - Total Length: 9 3/4 in 247.7 mm
• Flexible Tube Size (ID): 1/2 in 12.7 mm
• Working Pressure: 650 psig 45 bar
• Burst Pressure: 3250 psig 224 bar
• Brand: Packless
• Type: Vibration absorber
• MPN: VAFS-5
• Country of Origin: United States
• Connection Type: OD
• Length: 9-3/4 in
