Packless VAFS-3 Vib Eliminator 3/8 Inch

Product Description

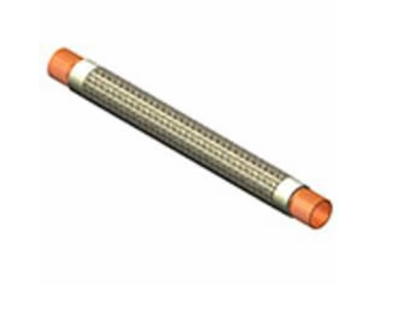

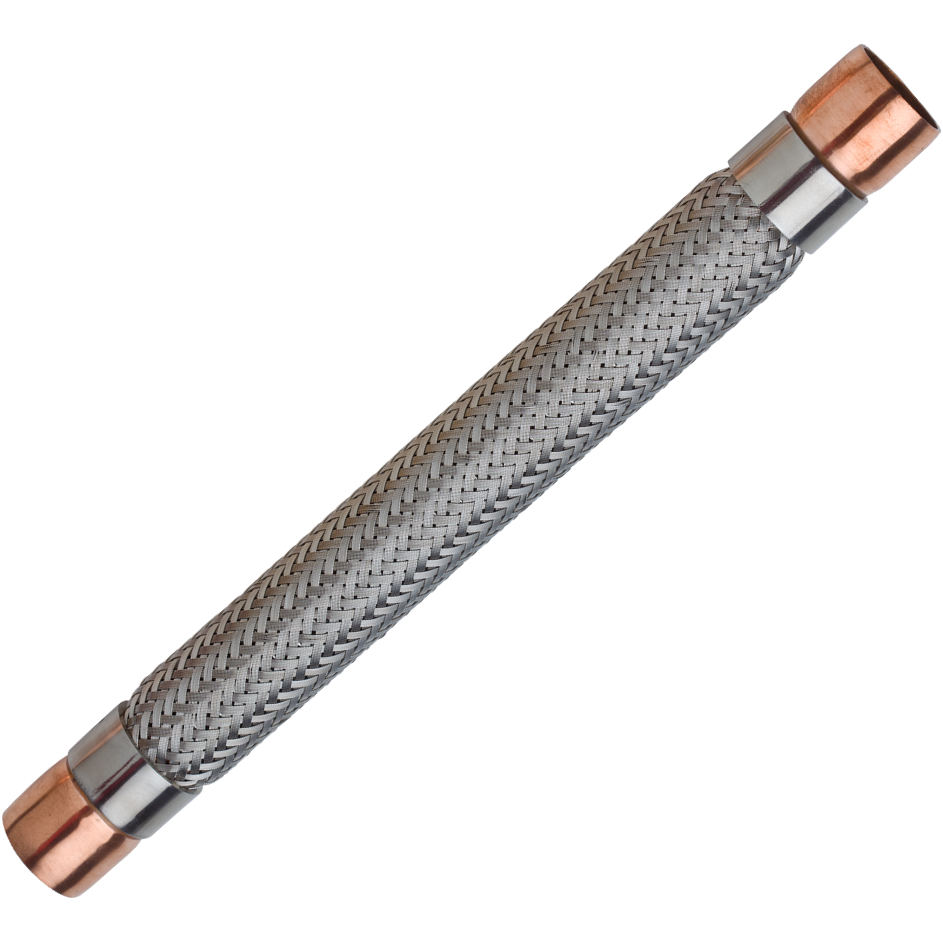

The Packless VAFS-3 vibration absorber is designed for installation on refrigerant suction and discharge lines. Constructed from stainless steel and copper, it is suitable for air conditioning, heating, and refrigeration systems. It meets UL, CE, and ISO 9001 standards and is pressure tested and vacuum sealed in plastic film.

• Made in USA
• End connection 3/8 Inch Internal Diameter x 5/16 Inch Length
• Pressure Rating 650 PSIG (Working), 3250 PSIG (Burst)

Product Highlights

This vibration absorber is designed to dampen compressor vibrations in HVAC/R systems. It features stainless steel tubing and copper connections.

Product Information

Standard Information

• Brand: PACKLESS
• Manufacturer Part Number: VAFS-3
• Country of Origin: USA

Technical Specifications

• Item: Vibration Absorber
• Size: 8-1/4 Inch Length
• Category: HVAC/R & Fans
• Material: Stainless Steel (Tube, Braid, Ferrule), Copper (Connection)
• UNSPSC Code: 40101700
• Series/Model: VAFS
• Used On Item: Suction and Discharge Lines of Air Conditioning, Heating and Refrigeration System
• Applicable Standard: UL (Canada and US), CE, ISO 9001
• Additional Information: End Connection 3/8 Inch Internal Diameter x 5/16 Inch Length; Tube Size 6-7/16 Inch Length; Flexible Tube Size 5/16 Inch Internal Diameter; Pressure Rating 650 PSIG (Working), 3250 PSIG (Burst)
• Manufacturer Name: Packless
• Manufacturer Part Number: VAFS-3
• End Connection: 3/8 Inch Internal Diameter x 5/16 Inch Length
• Tube Size: 6-7/16 Inch Length
• Flexible Tube Size: 5/16 Inch Internal Diameter
• Pressure Rating: 650 PSIG (Working), 3250 PSIG (Burst)
• Max Pressure: 650
• MfgNum: VAFS-3
• Main Category: Refrigeration
• SubCat: Vibration Eliminators
• ItemNum: VAFS-3
• Model: VAFS-3
• Tube Material: Stainless Steel
• Braid Material: Stainless Steel
• Ferrule Material: Stainless Steel
• Connection Material: Copper
• A - Connection Size (ID): 3⁄8 in 9.5 mm
• B - Connection Length: 5⁄16 in 7.9 mm
• C - Tube Length: 6 7⁄16 in 163.5 mm
• D - Total Length: 8 1⁄4 in 209.6 mm
• Flexible Tube Size (ID): 5⁄16 in 7.9 mm
• Working Pressure: 650 psig 45 bar
• Burst Pressure: 3250 psig 224 bar
• Connection (ID): 3⁄8 in 9.5 mm
• Length: 8-1/4 in
• Connection Type: OD
