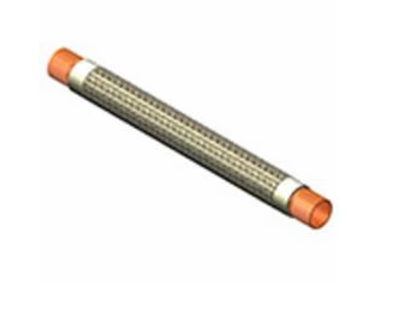

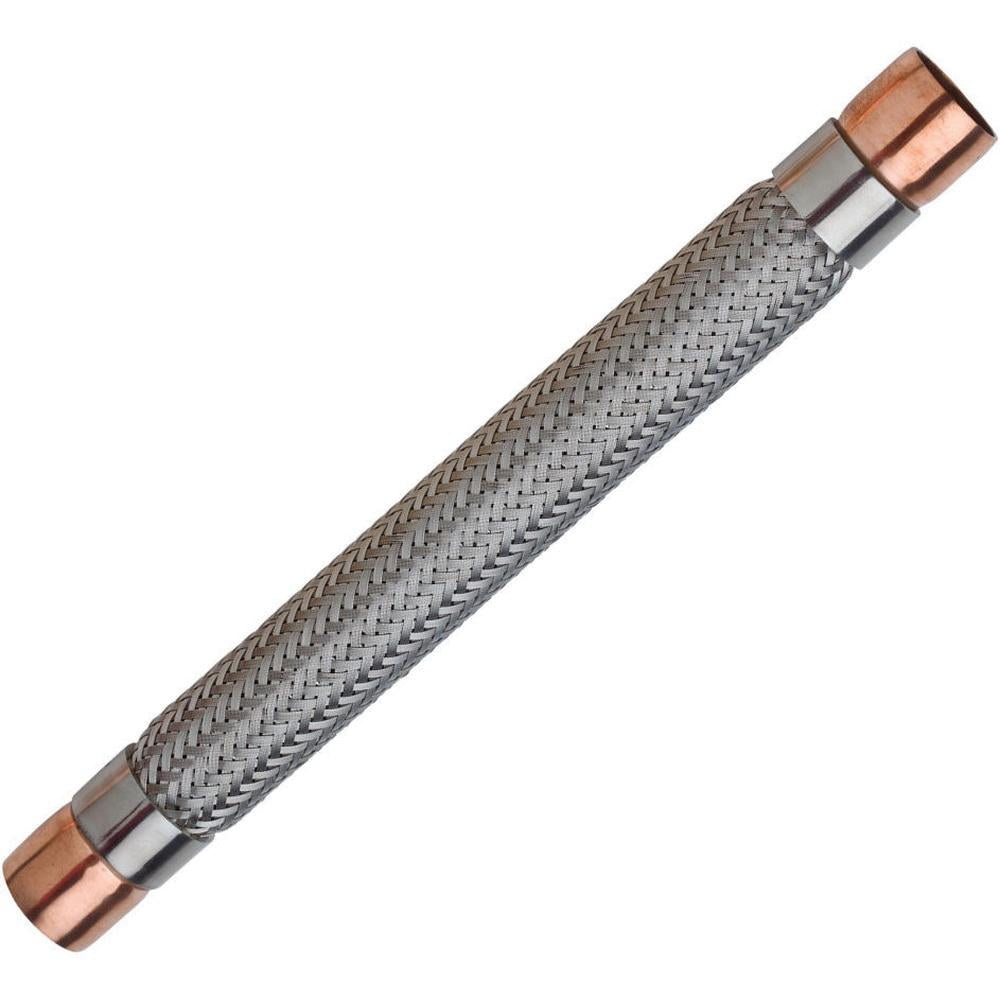

Packless VAFS-10 Vibration Absorber 1-3/8 inches OD

Product Description

The Packless VAFS-10 vibration absorber is designed for installation in the suction and discharge lines of air conditioning and refrigeration systems to dampen compressor-induced vibration. Constructed with deep pitch corrugated stainless steel tubing and high tensile stainless steel wire braid, it provides flexibility and strength. Features female copper end connections for sweat connections to refrigerant piping.

• Designed for installation in the suction and discharge lines of air conditioning and refrigeration systems
• Dampens the transmission of compressor-induced vibration through system piping
• Compatible with all HFC, HCFC and CFC refrigerants

Product Highlights

The Packless vibration absorber is pressure and vacuum tested, cleaned, dehydrated, and sealed in plastic film. Recognized under Underwriter’s Laboratories component programs.

Product Information

Standard Information

• Brand: PACKLESS
• Manufacturer Part Number: VAFS-10
• Country of Origin: USA

Technical Specifications

• Brand: Packless
• Manufacturer Part Number: VAFS-10
• Composition: Steel, Copper
• Prop 65: Yes
• Applicable Standard: UL (Canada and US), CE, ISO 9001
• Material: Stainless Steel (Tube, Braid, Ferrule), Copper (Connection)
• Used On Item: Suction and Discharge Lines of Air Conditioning, Heating and Refrigeration System
• Working Pressure: 650 psig 45 bar
• Burst Pressure: 3250 psig 224 bar
• Connection ID: 1 3/8 in.
• Tube Material: Stainless Steel
• Braid Material: Stainless Steel
• Ferrule Material: Stainless Steel
• Connection Material: Copper
• A - Connection Size (ID): 1 3⁄8 in 34.9 mm
• B - Connection Length: 31⁄32 in 24.6 mm
• C - Tube Length: 10 5⁄8 in 269.9 mm
• D - Total Length: 14 3⁄4 in 374.7 mm
• Flexible Tube Size (ID): 1 1⁄4 in 31.8 mm
• Country of Origin: USA
