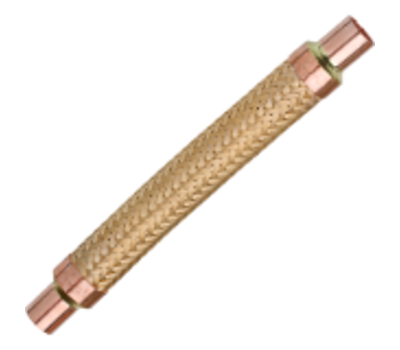

Packless Industries VAF-8 Vibration Absorber 7/8 OD Red Brass Tube Bronze Braid

Product Description

Packless Industries offers the VAF-8 vibration absorber that is designed for effective vibration control in refrigeration systems. This component is best installed close to the compressor and perpendicular to the main direction of vibration. For optimal performance, secure the refrigerant line at the end furthest from the vibration source. Installing the vibration absorber horizontally when possible enhances its efficiency. Additionally, proper spacing is important to prevent static compression or tension after soldering. The vibration absorbers should be installed in a straight line as they are not intended to adjust for offset piping.

• Model: VAF-8
• Size: 7/8 inches outer diameter
• Material: Red brass tube with bronze braid

Product Highlights

This vibration absorber effectively minimizes operational vibration in HVAC systems.

Product Information

Standard Information

• Brand: Packless Industries
• MPN: VAF-8

Technical Specifications

• Outer Diameter: 7/8 inches
• Length: 11-1/2 inches
• Material: Red brass and bronze
