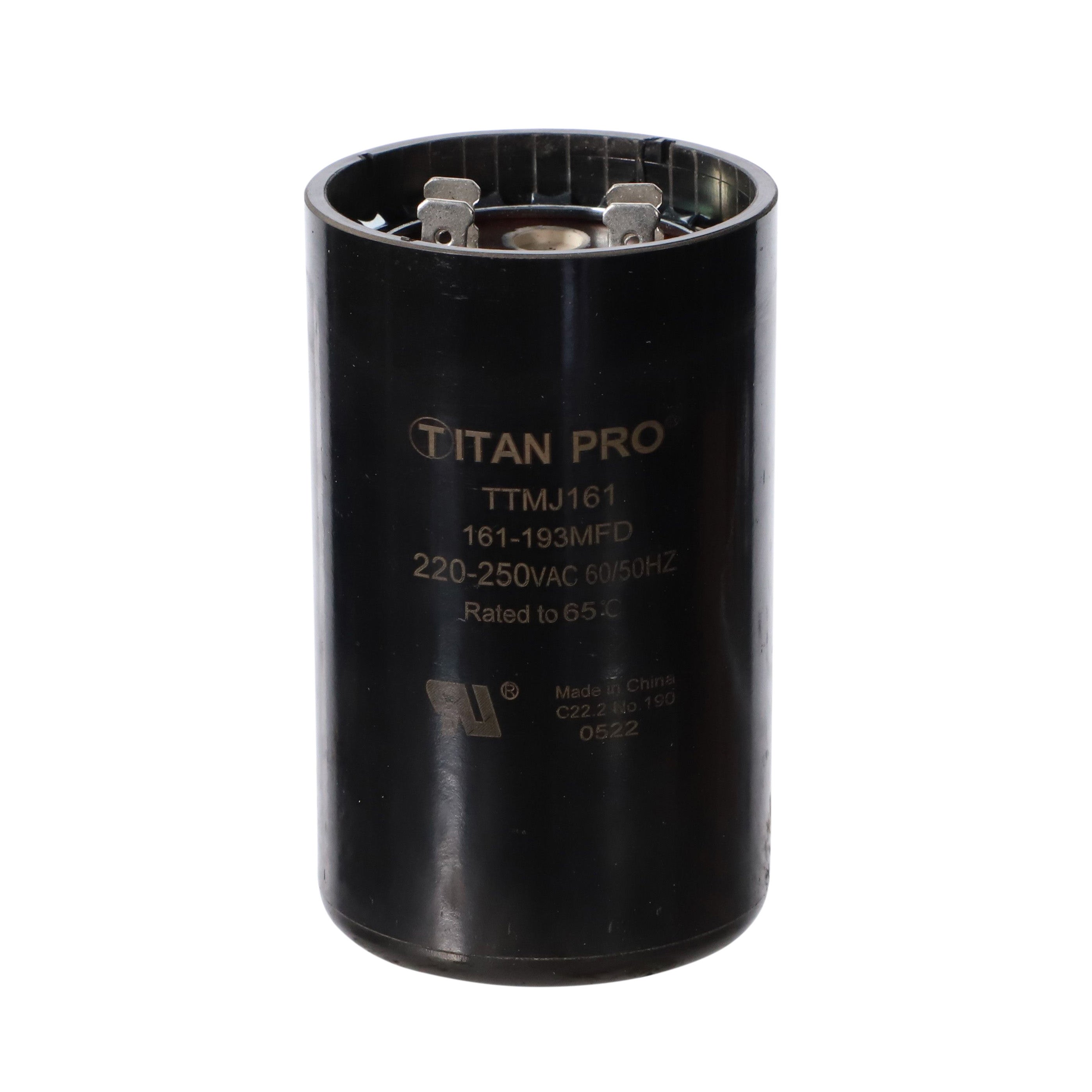

Packard TTMJ161 Start Capacitor 161-193 MFD (Round/Each) PTMJ161

Product Description

The Packard TTMJ161 is a start capacitor rated 161-193 MFD and 220-250 V for HVAC and refrigeration motor starting applications. It is a dry electrolytic, non-polarized capacitor in a round case with standard dual blade terminals, designed for intermittent motor starting on single-phase systems and compatible with potential and current relays.

• Capacitance: 161-193 MFD; voltage rating: 220-250 V for motor start applications
• Intermittent-duty start capacitor with dry electrolytic, non-polarized construction and dual blade terminals
• Round molded case (moisture- and oil-resistant phenolic/plastic); suitable for 50/60 Hz single-phase HVAC/R motors

Product Highlights

161-193 MFD start capacitor for 220-250 V single-phase HVAC/R motors; round case with dual blade terminals.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: TTMJ161

Technical Specifications

• Brand: Packard
• Manufacturer Part Number: TTMJ161
• Capacitance: 161-193 MFD
• Voltage Rating: 220-250 V
• Type: Start capacitor
• Function: Start
• Phase: Single phase
• Shape: Round
• Construction: Dry electrolytic, non-polarized
• Duty: Intermittent motor starting
• Rated Start Duration: 3-second start
• Starts Per Hour: 20 starts per hour
• Operating Temperature Range: -40 to 65 C (-40 to 149 F)
• Frequency: 50/60 Hz
• Terminal Type: Standard dual blade terminals
• Case Material: Moisture- and oil-resistant molded phenolic resin or plastic
• Dimensions: 3.38 x 2.04 x 2.04 inches
• Weight: 0.41 lbs
• Unit of Measure: Each
• Manufacturer: Packard
• Alternate Part Numbers: PTMJ161; 250-124-149; 840899130606; MOTPTMJ161; PACPTMJ161
