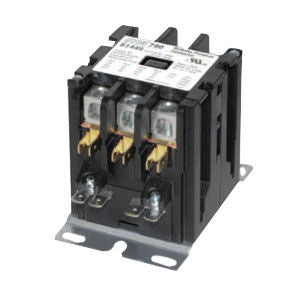

Packard TMX360A2 Mars 61470 Definite Purpose Contactor, 24V Coil, 60A Inductive, 75A Resistive, 30HP, 3Pole, 50/60Hz

The Packard TMX360A2 Mars 61470 Contactor is a definite purpose contactor with a 24 V coil, 60 A inductive, 75 A resistive, 30 hp, 3 pole, 5060 Hz, silver cadmium oxide contact, and box lug dual quick connect terminal. It is designed for use in food equipment, HVAC, industrial, lighting, refrigeration, and welding equipment. This contactor features a large arch window box lugs, recessed push-to test button (not on 75 and 90 A contactors), SEMS screws or box lugs available on 30 A contactors, enclosed body design, accepts Mars 780 and Furnas auxiliary switches, use standard Mars 780 replacement coils, dual qc coil terminals plus screw terminal for easy termination and jumper arrangements, and coils with class F insulation, 600 V, footprint compatible. It is approved by ARI 780 and 790, CE Certified, and cULus Listed. Dimensions: 4.04 Inch L x 2.87 Inch W x 3.11 Inch H.

• Large arch window box lugs
• Recessed Push-to test button (not on 75 and 90 A contactors)
• SEMS screws or box lugs available on 30 A contactors
• Enclosed body design
• Accepts Mars 780 and Furnas auxiliary switches
