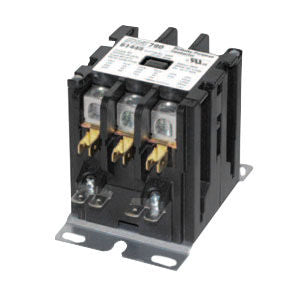

Packard TMX340A2 Mars 61445 Definite Purpose Contactor, 24V Coil, 40A Inductive, 50A Resistive, 20hp, 3Pole, 5060Hz

The Packard TMX340A2 Mars 61445 Contactor is a definite purpose contactor designed for use in food equipment, HVAC, industrial, lighting, refrigeration and welding equipment. This contactor features a 24 V coil, 40 A inductive, 50 A resistive, 20 hp, 3 pole, 5060 Hz, silver cadmium oxide contact, box lug dual quick connect terminal, 3.69 inch L x 2.38 inch W x 2.87 inch H, large arch window box lugs, recessed push-to test button (not on 75 and 90 A contactors), SEMS screws or box lugs available on 30 A contactors, enclosed body design, accepts Mars 780 and Furnas auxiliary switches, use standard Mars 780 replacement coils, dual qc coil terminals plus screw terminal for easy termination and jumper arrangements, coils: class F insulation, 600 V, footprint compatible, standard approvals: ARI 780 and 790, CE Certified, cULus Listed.

• 24 V Coil
• 40 A Inductive, 50 A Resistive, 20 hp, 3 Pole, 5060 Hz, Silver Cadmium Oxide Contact
• Box Lug Dual Quick Connect Terminal, 3.69 Inch L x 2.38 Inch W x 2.87 Inch H
• Large arch window box lugs
• Recessed Push-to test button (not on 75 and 90 A contactors)
