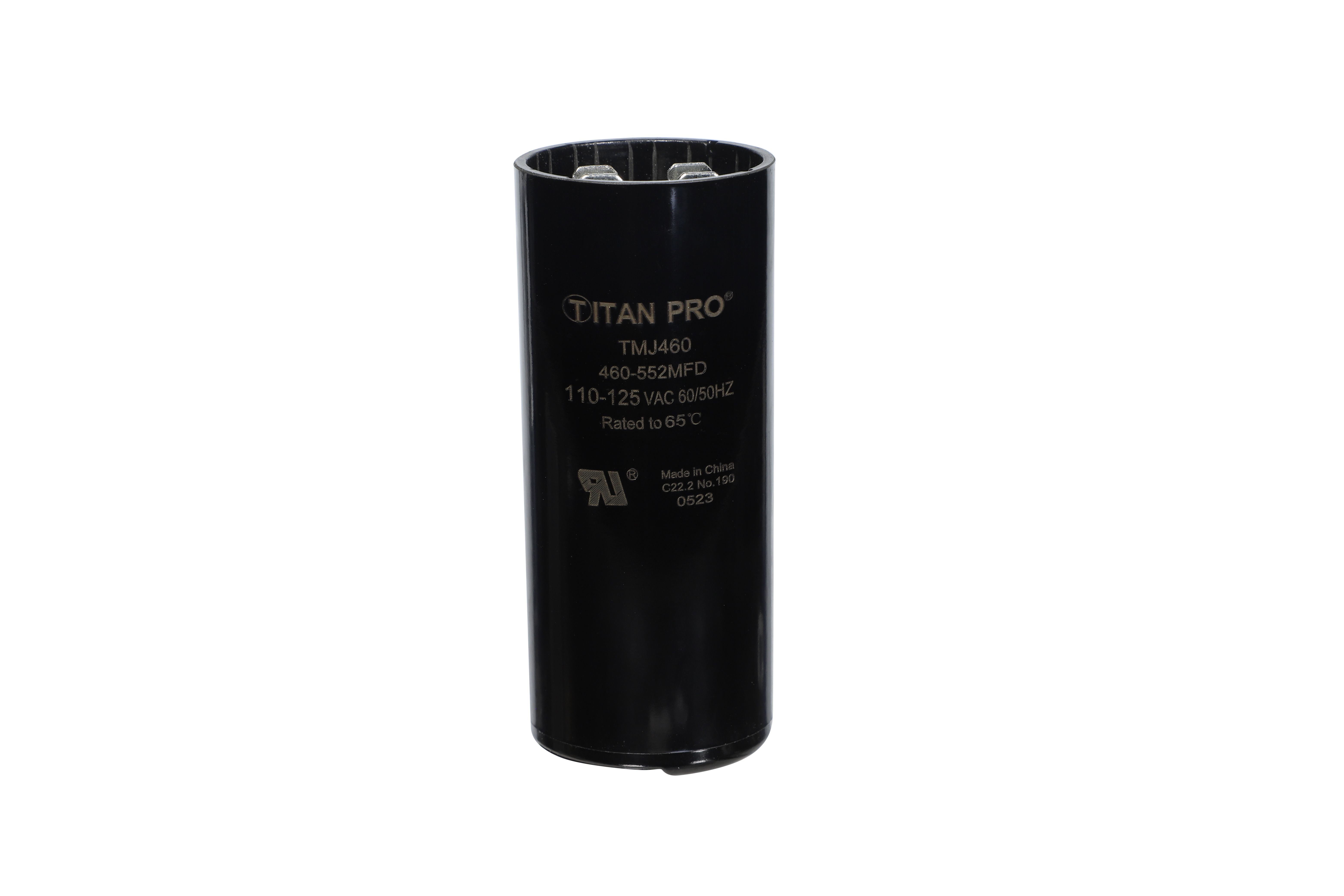

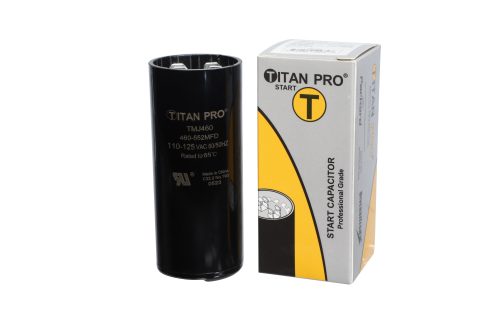

Packard TMJ460 Start Capacitor 460-552 MFD (110-125V)

Product Description

Packard TMJ460 is a start capacitor rated 460-552 MFD and 110-125 VAC for single-phase HVAC and refrigeration motor starting applications. It is a dry, electrolytic, non-polarized capacitor housed in a round, moisture- and oil-resistant molded phenolic case with standard dual blade terminals. The capacitor is intended for intermittent duty, rated for 3-second starts and up to 20 starts per hour, and meets EIA RS-463 type 2 for 50/60 Hz operation.

• Capacitance 460-552 MFD, voltage 110-125 VAC for single-phase motor starting
• Dry electrolytic, non-polarized design in a moisture- and oil-resistant phenolic case with dual blade terminals
• Intermittent duty: 3-second start rating, up to 20 starts per hour; meets EIA RS-463 type 2; suitable for 50/60 Hz

Product Highlights

460-552 MFD start capacitor for 110-125 VAC single-phase motors; 3-second start rating and up to 20 starts per hour; meets EIA RS-463 type 2.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: TMJ460

Technical Specifications

• Brand: Packard
• Manufacturer Part Number: TMJ460
• Type: Start Capacitor
• Capacitance: 460-552 MFD
• Voltage: 110-125 VAC
• Phase: Single Phase
• Function: Start
• Construction: Dry electrolytic, non-polarized
• Duty: Intermittent duty
• Rated Start Time: 3-second start
• Starts Per Hour: 20
• Operating Temperature Range: -40 to 149 F (-40 to 65 C)
• Standards: Meets or exceeds Electronic Industries Association (EIA) RS-463 type 2
• Frequency: 50/60 Hz
• Can Size: 2
• Diameter: 1-7/16 in.
• Height: 3 3/8 in.
• Material: Moisture- and oil-resistant molded phenolic resin or plastic
• Terminals: Standard dual blade terminals
• Shape: Round
