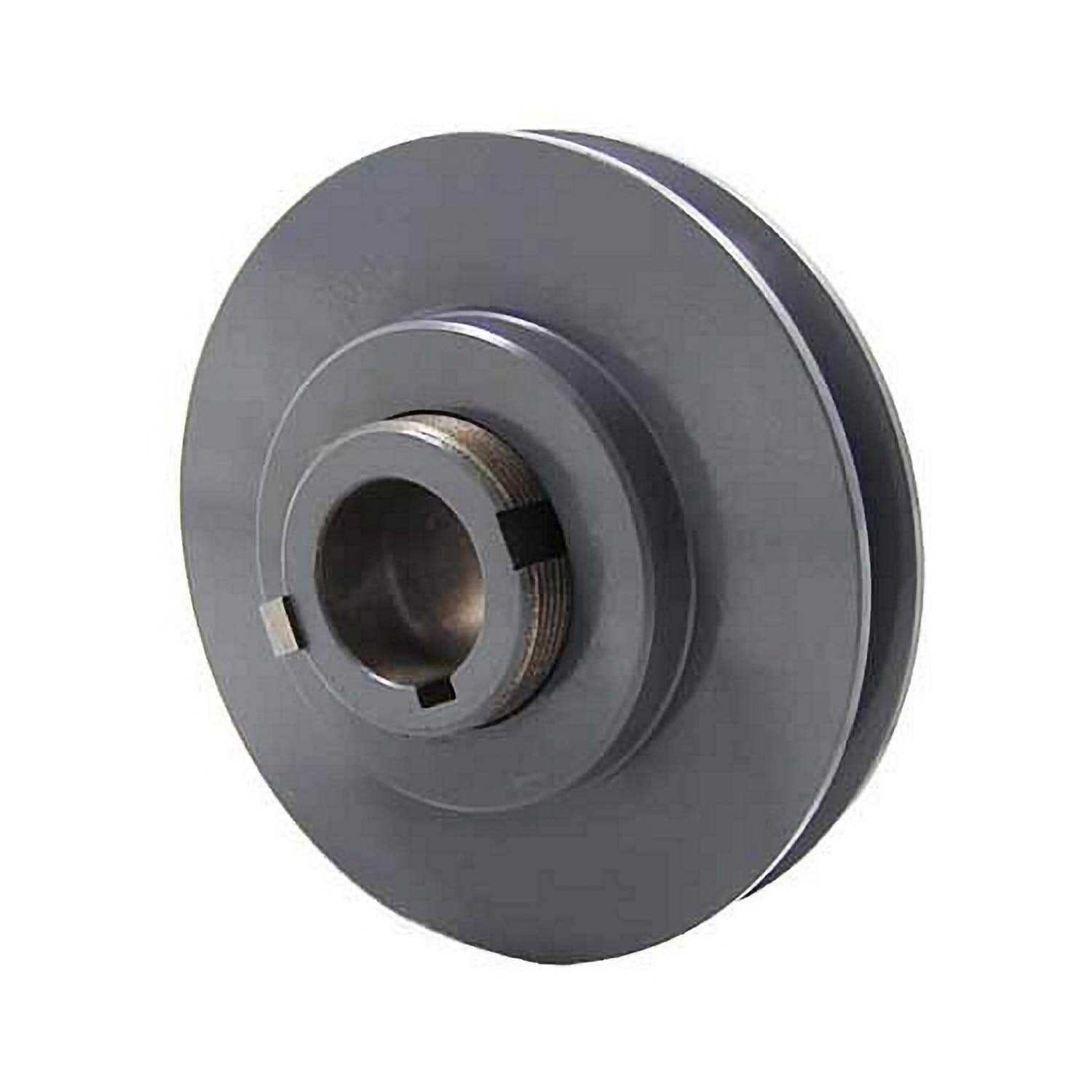

Packard PVP3412 variable pitch single groove belt pulley 3.15 inch 1/2 inch bore

Product Description

The Packard PVP3412 is a variable pitch single groove belt pulley designed for various drive systems. Featuring a 3.15 inch outside diameter and a 1/2 inch bore, this pulley is fitted with hollow head set screws for secure installation. It is compatible with 3L, 4L or A, and 5L or B belts, making it suitable for applications requiring adjustable speed ratios.

• Single groove variable pitch belt pulley for adjustable drive systems.
• Features a 3.15 inch outside diameter and a 1/2 inch bore.
• Equipped with hollow head set screws for secure mounting and operation.

Product Highlights

Adjustable variable pitch pulley compatible with multiple belt types, featuring a 1/2 inch bore and secure set screw design.

Product Information

Standard Information

• Brand: DIVERSITECH
• Manufacturer Part Number: PVP3412
• Country of Origin: China

Technical Specifications

• Pulley Type: Variable Pitch Pulley
• Outside Diameter: 3.15 Inch
• Bore Diameter: 1/2 Inch
• 3L Belts Maximum Pitch: 2.5
• 3L Belts Maximum Turns Open: 0
• 3L Belts Minimum Pitch: 1.7
• 3L Belts Minimum Turns Open: 4
• 4L or A Belts Minimum Datum: 1.9
• 4L or A Belts Maximum Datum: 2.9
• 4L or A Belts Minimum Turns Open: 5
• 5L or B Belts Maximum Turns Open: 1
• 5L or B Belts Minimum Turns Open: 5
• 5L or B Belts Maximum Datum: 3.2
• 5L or B Belts Minimum Datum: 2.4
