Product Description

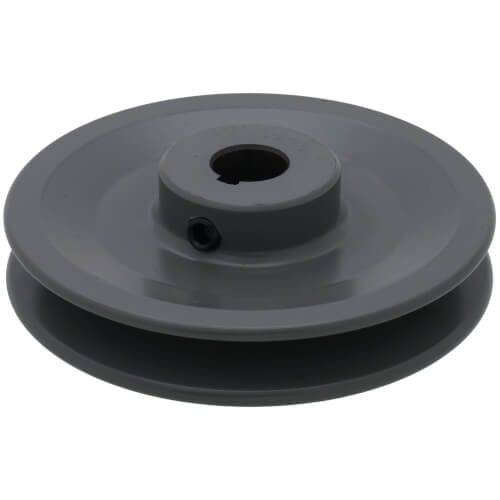

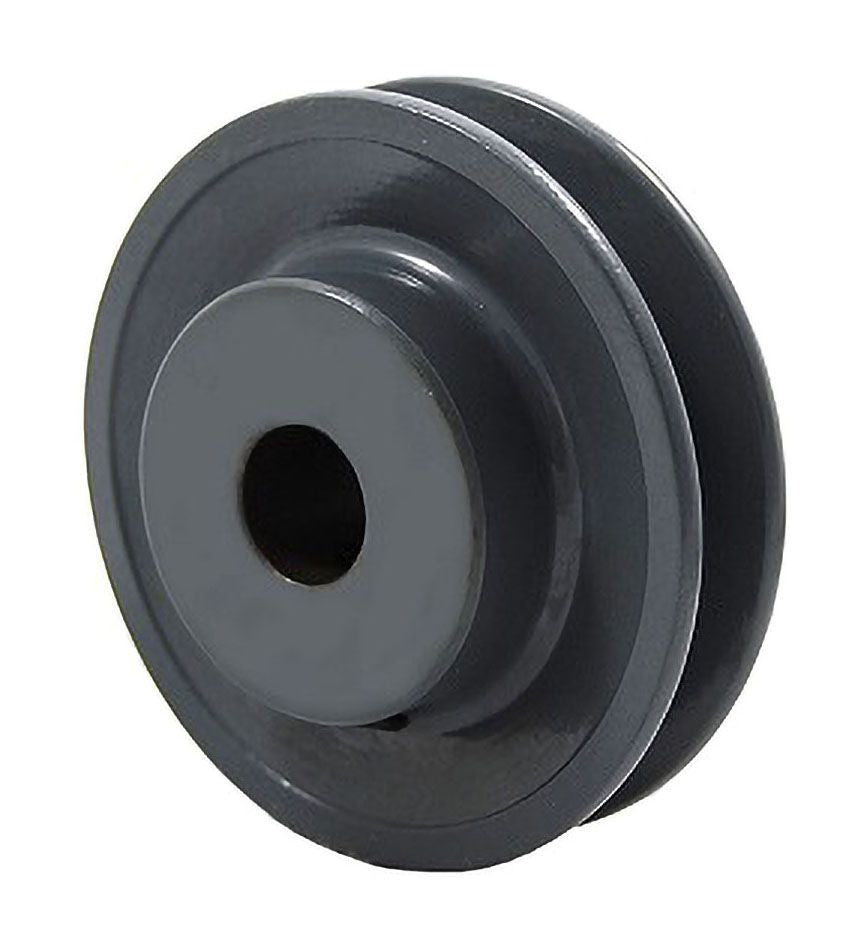

The Packard PVL4458 is a variable pitch air handling pulley with an outside diameter of four point fifteen inches. It is designed to accommodate a bore diameter of five eighths inch and has one groove for a secure fit. This type of pulley is ideal for use with various belt types including 3L, 4L/A, and 5L/B. The pitch diameter ranges from two point seven to three point five inches.
- Variable pitch design for adjustable speed control
- Compatible with multiple belt types: 3L, 4L/A, 5L/B
- Durable construction for reliable performance in HVAC systems
Product Highlights
This air handling pulley is suitable for a variety of applications in HVAC systems, ensuring efficient operation and easy installation.
Product Information
Standard Information
-
Manufacturer: Packard
-
UPC: 0840899123479
Technical Specifications
-
Outside Diameter: 4.15 inches
-
Bore Diameter: 5/8 inches
-
Pitch Diameter: 2.7 to 3.5 inches
-
Number of Grooves: 1
-
Drive Slot Size: 3/16 inches x 3/32 inches
-
Turns Open: 4 to 0 (3L Belt), 5 to 0 (4L/A Belt), 6 to 1 (5L/B Belt)
-
Datum Size: 2.8 to 3.8 inches (4L/A Belt), 3.1 to 4.1 inches (5L/B Belt)
