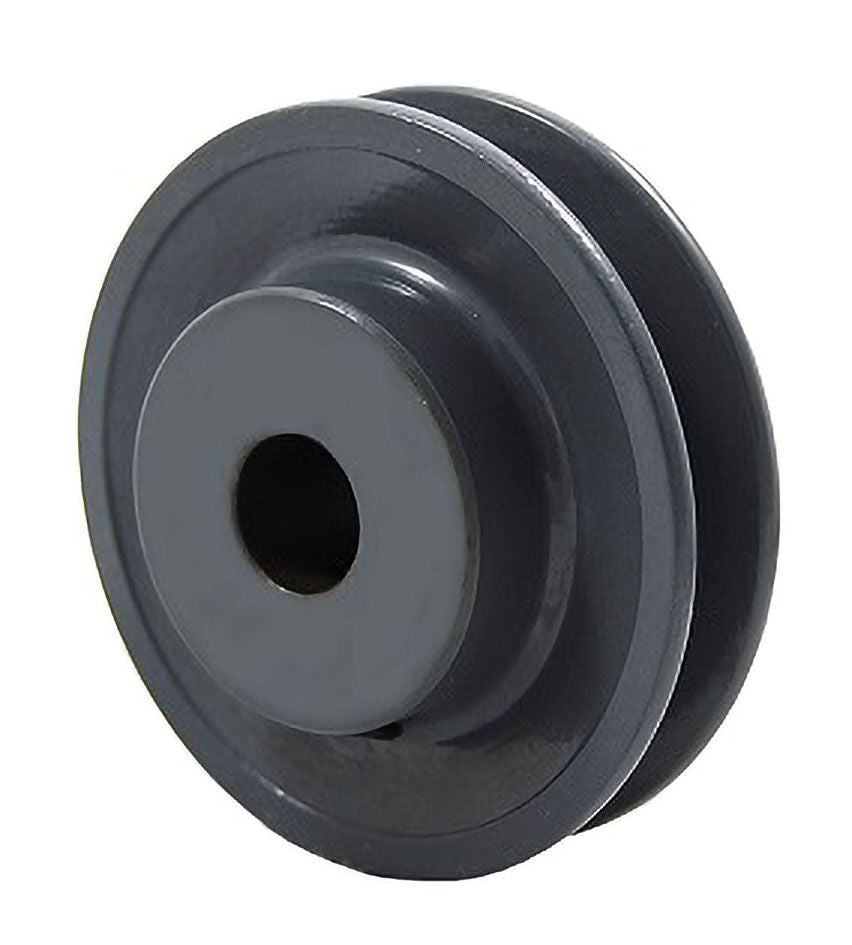

Packard PVL3458 3.15 OD, 1.7 to 2.5 3L Belt Pitch Diameter, 5/8 Diameter Bore, 1-Groove, Variable Pitch

Product Description

The Packard PVL3458 is a variable pitch air handling pulley designed for HVAC applications. It features an outside diameter of three point fifteen inches and a bore diameter of five eighths inches. This pulley is suitable for various belt types including 3L, 4L/A, and 5L/B.

• Variable pitch design for adaptable performance
• Compatible with multiple belt sizes
• Single groove for efficient operation

Product Highlights

This pulley offers flexibility in pitch diameter, ranging from one point seven inches to two point five inches, making it versatile for different setups. It is ideal for applications that require a drive system with adjustable tension.

Product Information

Standard Information

• Manufacturer: Packard
• Part Number: PVL3458

Technical Specifications

• Outside Diameter: 3.15 inches
• Bore Diameter: 5/8 inches
• Drive Slot Size: 3/16 inch x 3/32 inch
• Pitch Diameter: 1.7 to 2.5 inches
• Number of Grooves: 1
• For Belt Type: 3L, 4L/A, 5L/B
• Datum Size: 1.9 to 2.9 inches (4L/A Belt), 2.4 to 3.2 inches (5L/B Belt)
• Turns Open: 4 to 0 (3L Belt), 5 to 0 (4L/A Belt), 5 to 1 (5L/B Belt)
