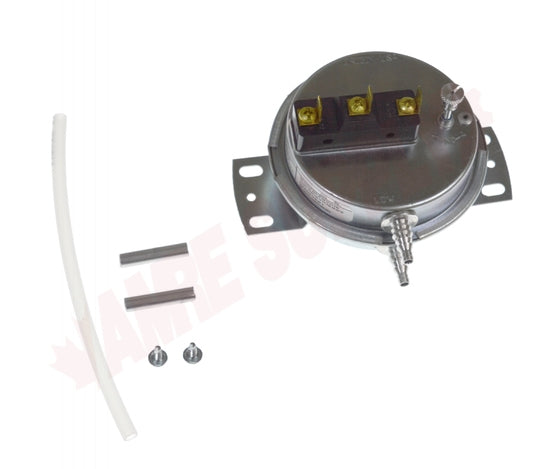

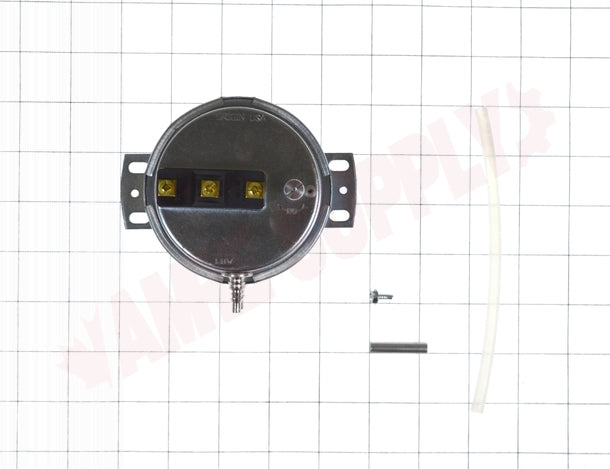

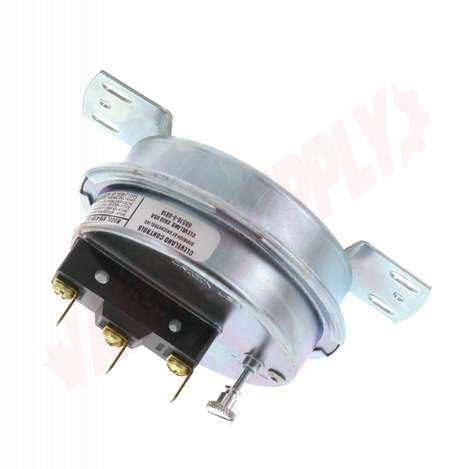

Packard PS415 Adjustable Pressure Switch Kit

Product Description

The Packard PS415 is an adjustable pressure switch designed for HVAC applications. This switch is used for air pressure sensing and features easy field adjustability and an auto reset function.

• SPDT contacts for versatile switching options.
• Designed for use in HVAC systems for effective pressure monitoring.
• Temperature range of -40 to 180 degrees Fahrenheit.

Product Highlights

This switch offers reliable performance in air pressure monitoring and control, meeting a variety of HVAC needs.

Product Information

Standard Information

• Brand: Packard
• Category: Electrical > Switches & Relays > All Relays & Switches > Air Flow Switches

Technical Specifications

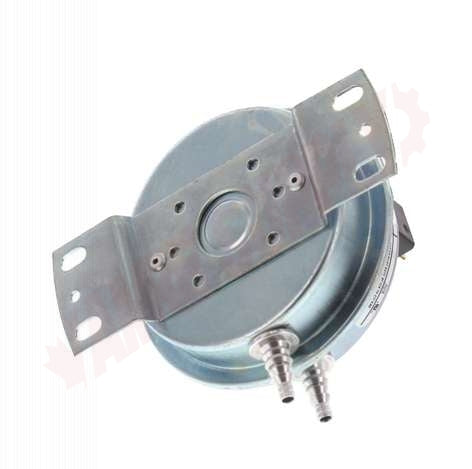

• Mounting: With the diaphragm in any vertical plane

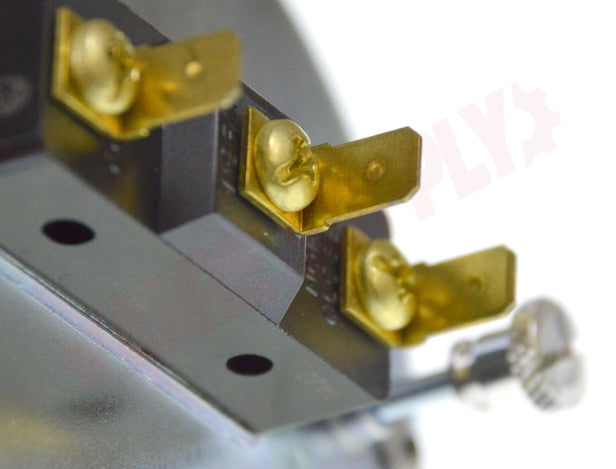

• Connection: 1/4 90-degree quick-connect terminals, screw terminals with cup washers
• Temperature Range: -40 to 180 degrees Fahrenheit
• Switch Type: SPST-NO, SPST-NC, SPDT
• Electrical Rating: 15 Amps noninductive at 277 VAC, 300VA pilot duty at 115-277 VAC, 60 Hz
• Set Point: 0.10 +/- 0.02 w.c. to 2 w.c. / 0.10 +/- 0.02 w.c. to 5 w.c.
• Adjustable Range: 0.12 w.c. to 2 w.c., 0.12 w.c. to 5 w.c., 0.09 w.c. to 1.9 w.c., 0.09 w.c. to 4.7 w.c.
• Phase: Single
• Reset: Auto
• Range: 0.15 to 5.0
• Country of Origin: Mexico
