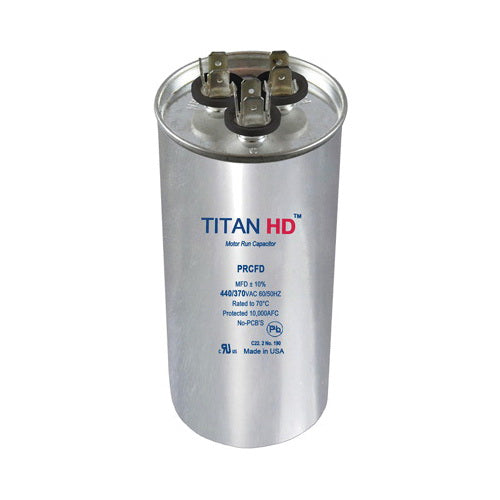

Packard PRCFD705A Titan HD Dual Section Motor Run Capacitor 70/5 MFD 440/370VAC Round

Product Description

Packard PRCFD705A Titan HD Dual Section Motor Run Capacitor is designed to meet the needs of HVAC professionals. It features a dual-section capability with 70/5 MFD and can operate at a voltage of 440/370. Made with high-quality aluminum and incorporating metalized polypropylene film technology, this capacitor is built to last in demanding conditions.

• 60,000 hours operating life
• Meets EIA-456-A industry standard
• Environmentally friendly oil for heat transfer

Product Highlights

Product Information

Standard Information

• Manufacturer: Packard
• Part #: PRCFD705A
• Country of Origin: US

Technical Specifications

• Type: Dual Section
• Shape: Round
• Voltage Rating: 440/370 VAC
• Capacitance: 70/5 uF
• Frequency Rating: 50/60 Hz
• Temperature Rating: -40 to 70 degrees C
• Average Life: 60000 hr
• Case Material: Aluminum
• Case Height: 3.91 inches
• Diameter: 2 inches
• Height: 4.41 inches
• Terminal Type: Standard Blade
• Standards/Certifications: cRUus listed, UL 801 and CUL listed, RoHS compliant, EIA 456A, IEC 60252
