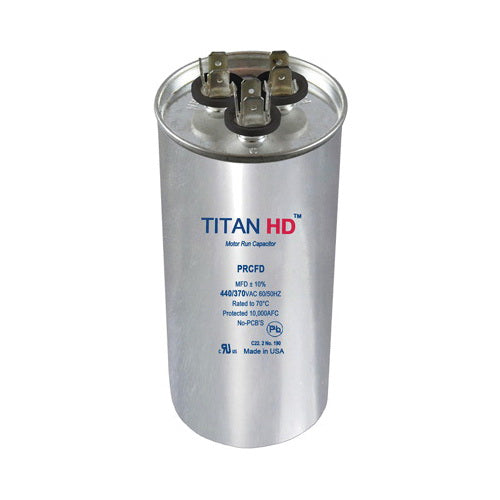

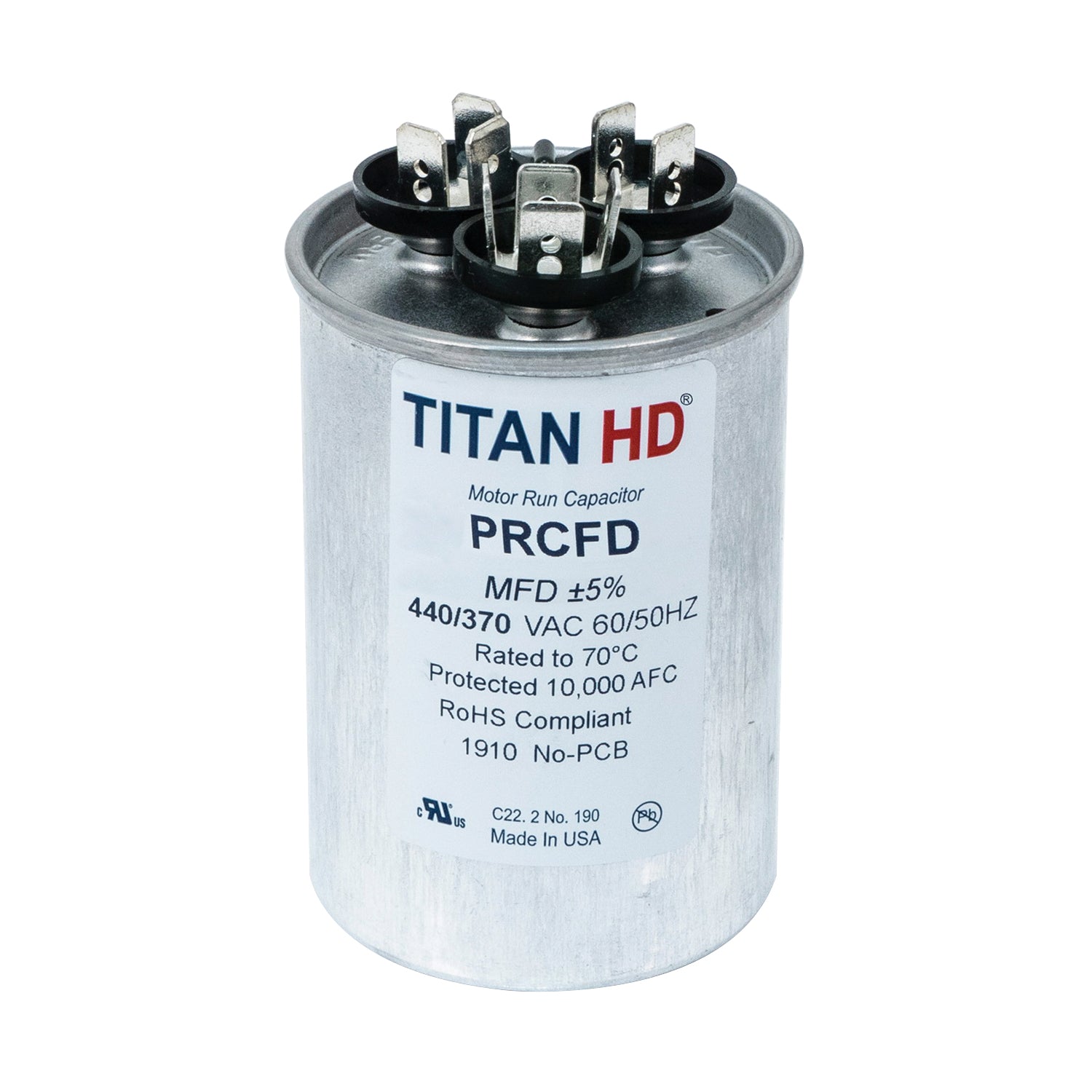

Packard PRCFD605A Titan HD Dual Section Motor Run Capacitor 60/5 uF 440/370 VAC

Product Description

Packard PRCFD605A is a dual section motor run capacitor with a capacitance of sixty and five microfarads. This model operates at voltage ratings of four hundred forty and three hundred seventy volts alternating current. The round shape features an aluminum case and steel cover. Designed for reliability, it meets industry standards and is made in the US.

• Operating life of sixty thousand hours
• Meets EIA-456-A standards for performance
• Environmentally-friendly oil for heat transfer

Product Highlights

This capacitor features self-restoration technology using metalized polypropylene film. It includes a UL approved pressure sensitive interrupter for safety and performance.

Product Information

Standard Information

• Brand: Packard
• Manufacturer: Packard

Technical Specifications

• MPN: PRCFD605A
• Capacitance: 60/5 uF
• Voltage Rating: 440/370 VAC
• Shape: Round
• Dimensions: 2.5 in diameter x 2.5 in width x 2.88 in height
• Case Material: Aluminum
• Cover Material: Steel
• Terminal Type: 1/4 inch Male Quick Connect Terminal
• Temperature Rating: -40 to 70 degrees Celsius
• Frequency Rating: 50/60 Hz
