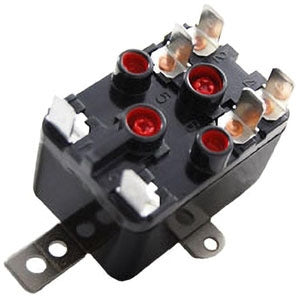

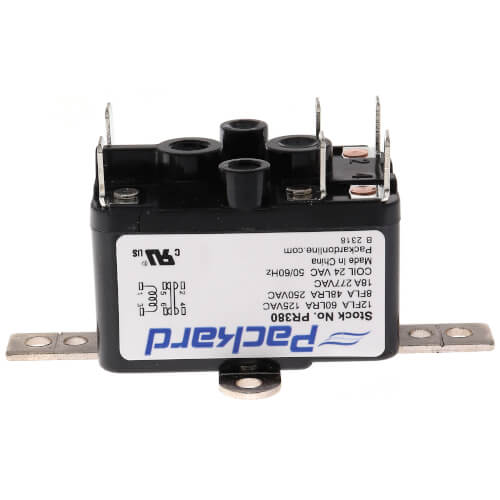

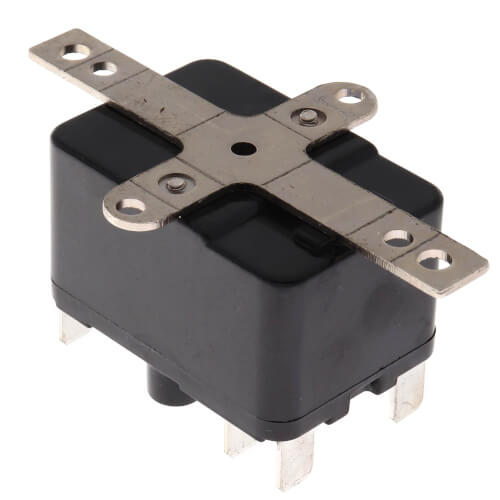

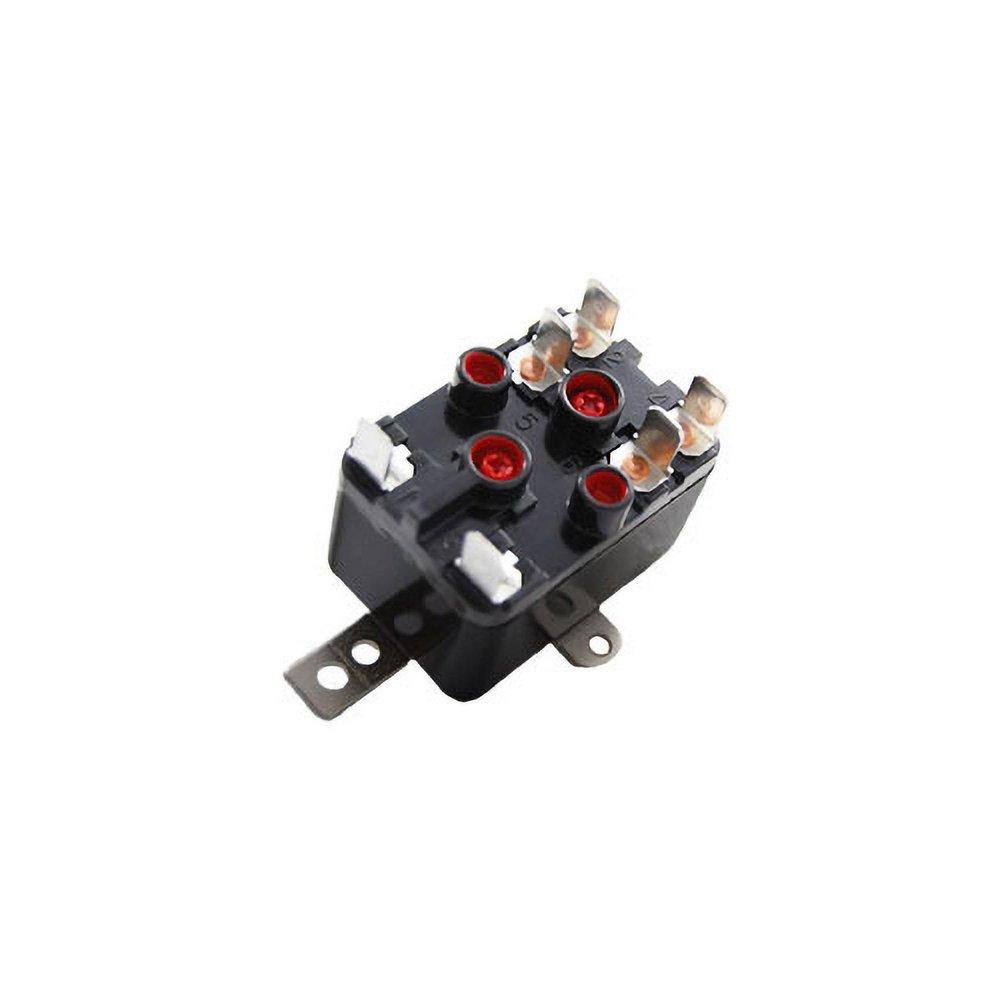

Packard PR380 Switching Fan Relay 24 VAC SPST NO-NC

Product Description

The Packard PR380 is a robust fan relay designed for efficient operation of fan motors and solenoids. Engineered by Packard, this relay is optimized for 24 VAC systems.

• Durable SPST, NO-NC contact configuration
• Operates with 24 VAC and supports various current ratings for different applications
• Features quarter-inch quick connect terminals for easy installation

Product Highlights

Ideal for controlling fan motors and switching solenoids, this relay is versatile in use across multiple HVAC and electrical applications. With a focus on reliability, the PR380 ensures smooth operation under full load conditions up to 12 amps and locked rotor situations up to 60 amps at 125 volts.

Product Information

Standard Information

• Brand: Packard
• Model: PR380

Technical Specifications

• Coil Voltage: 24 Volt AC
• Contact Configuration: SPST, NO-NC
• Current Ratings: 12 A Full Load/60 A Locked Rotor at 125 V, 8 A Full Load/48 A Locked Rotor at 250 V
• Terminal Type: 1/4 Inch Quick Connect
