Product Description

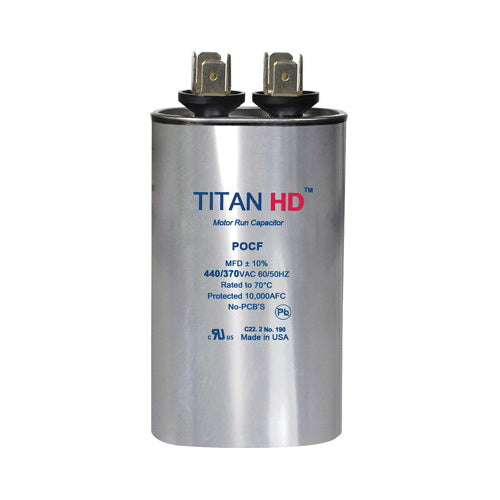

The Packard Titan HD POCF5A is a single section motor run capacitor designed for HVAC applications. This capacitor has a capacitance of five microfarads and operates at voltage ratings of four hundred forty and three hundred seventy VAC. It comes in an oval shape made with aluminum and steel materials.
- Rated for sixty thousand hours of operating life
- Equipped with a UL-approved pressure-sensitive interrupter
- Environmentally friendly oil reduces corrosion and optimizes heat transfer
Product Highlights
The Titan HD series provides reliability and performance in demanding environments, making it suitable for contractors.
Product Information
Standard Information
-
Brand: Packard
-
Manufacturer: Packard
Technical Specifications
-
Capacitance: 5 uF
-
Voltage Rating: 440/370 VAC
-
Dimensions: 2 inches Diameter x 2 inches Width x 1.25 inches Depth x 1.56 inches Height
-
Shape: Oval
-
Case Material: Aluminum
-
Cover Material: Steel
-
Terminal Type: 1/4 inch Male Quick-Connect Terminal
-
Average Life: 60,000 hours
-
Temperature Rating: -40 to 70 degrees Fahrenheit
-
Standards: cRUus Listed, EIA-456-A, RoHS Compliant, UL 801
