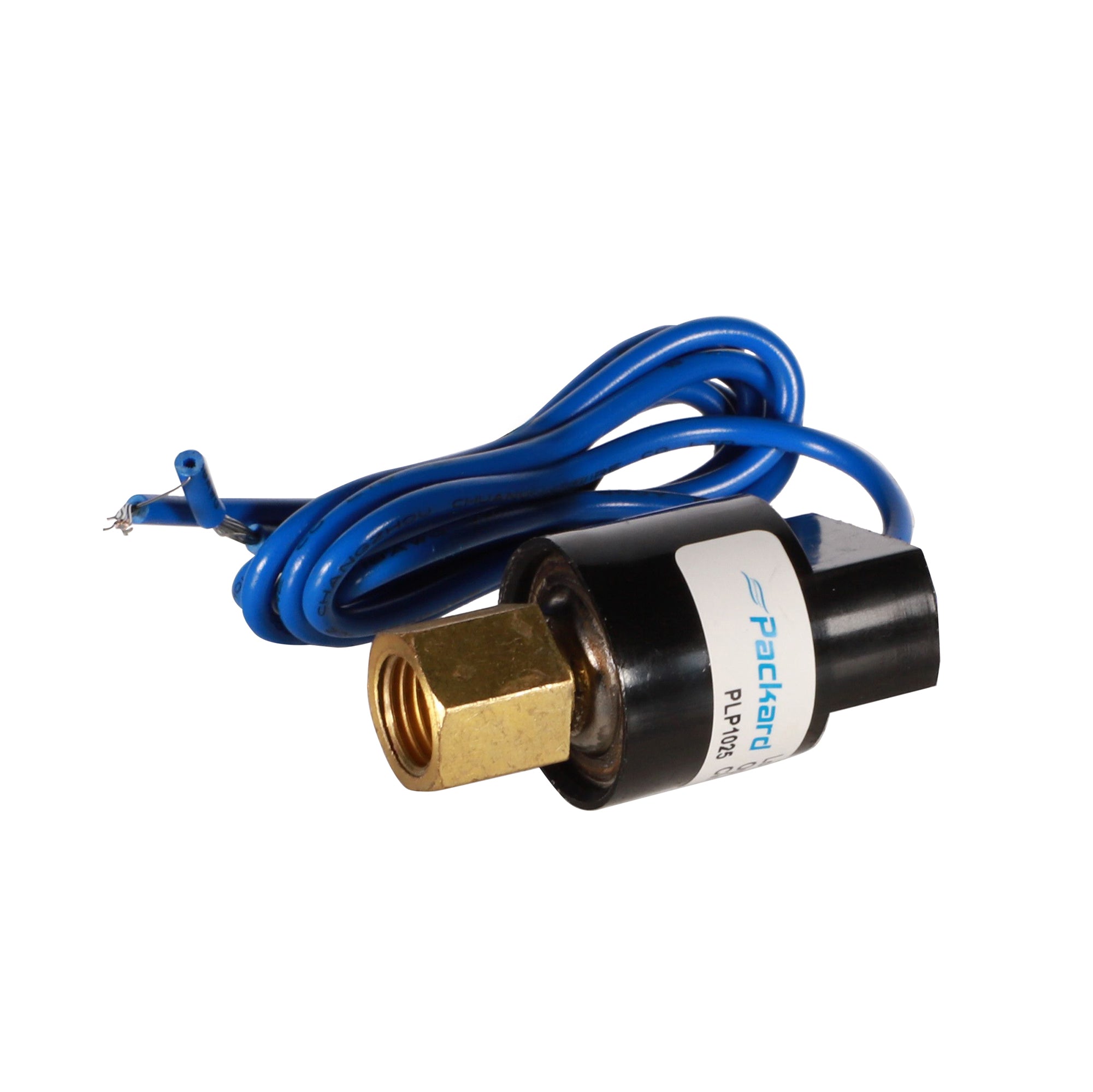

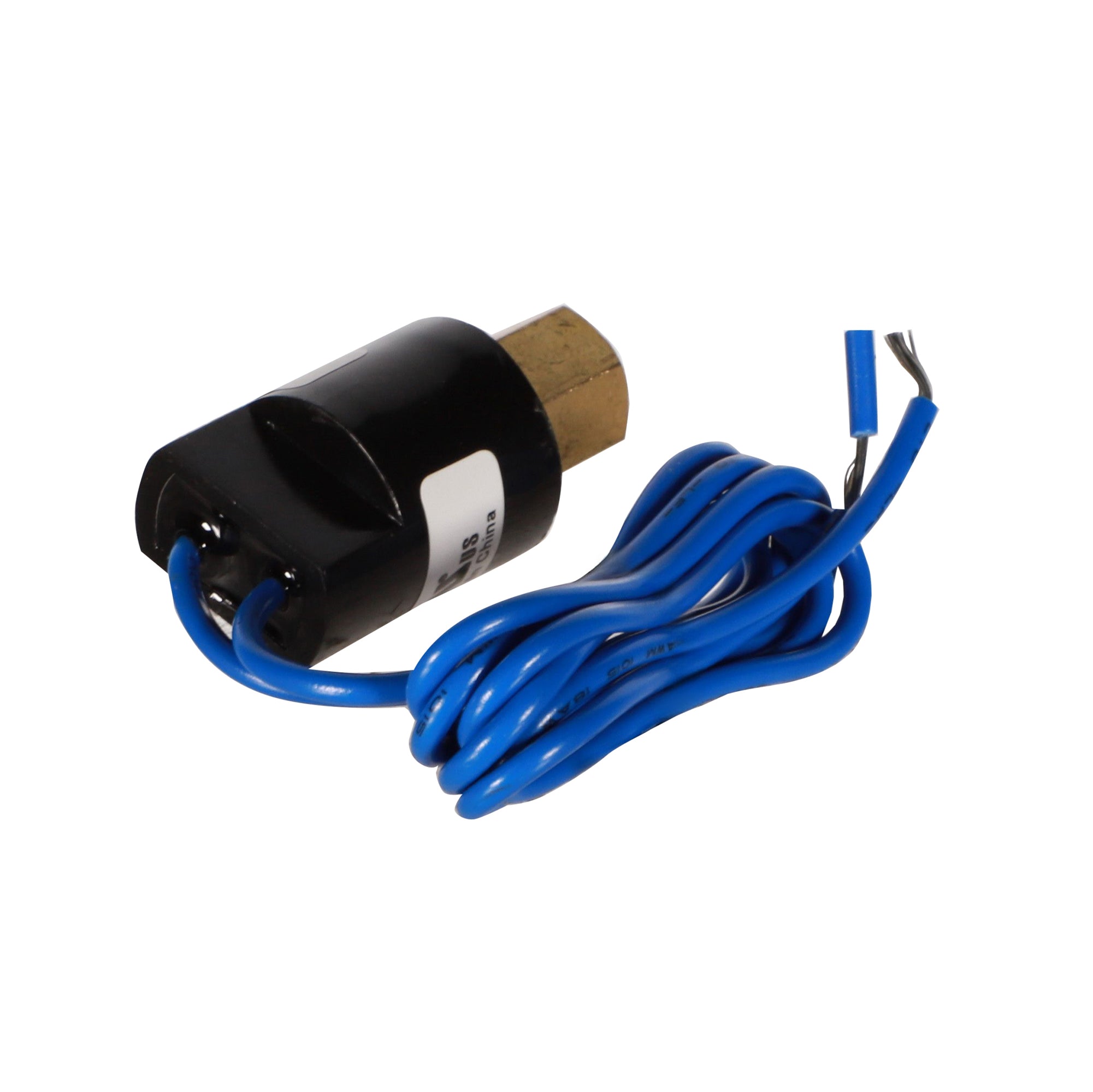

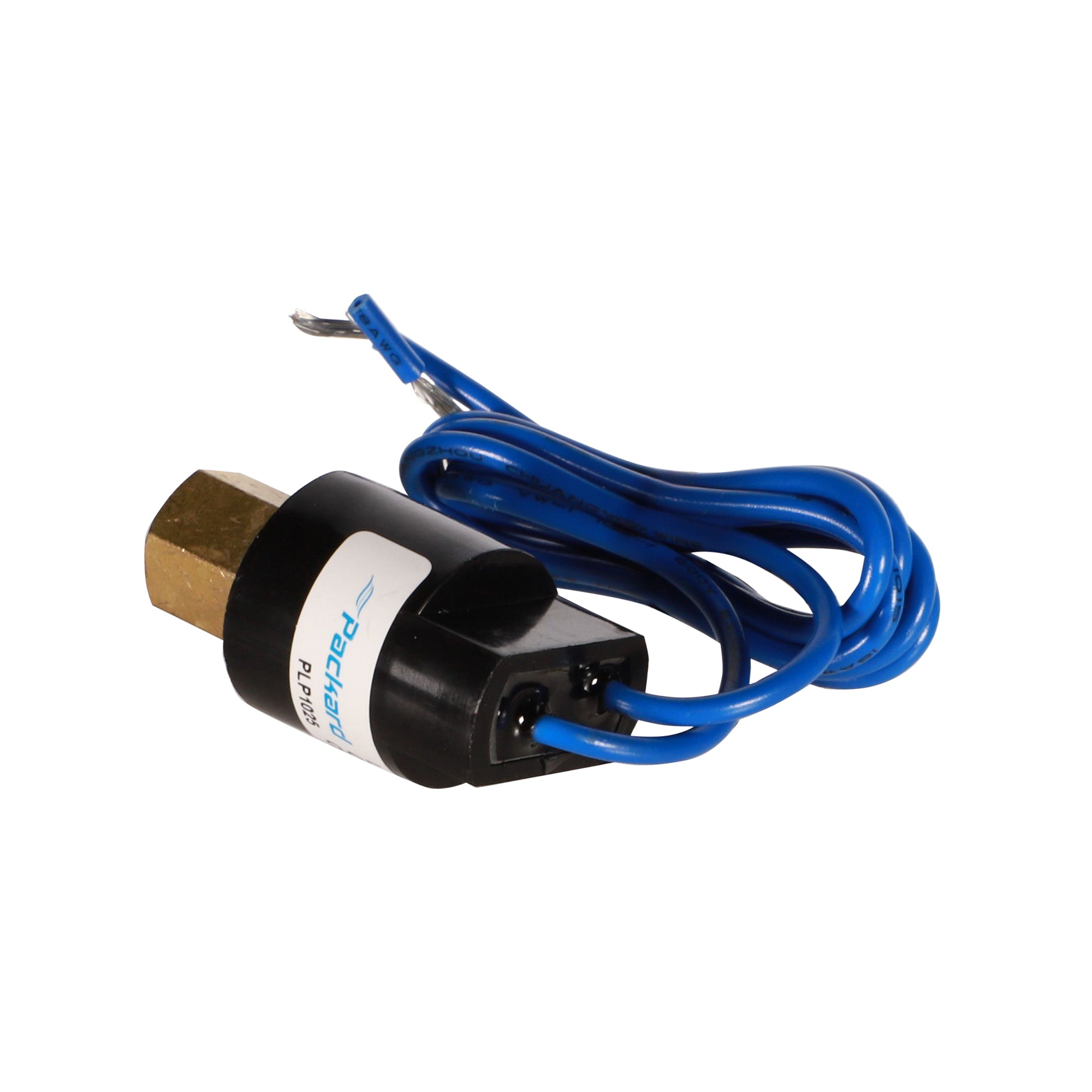

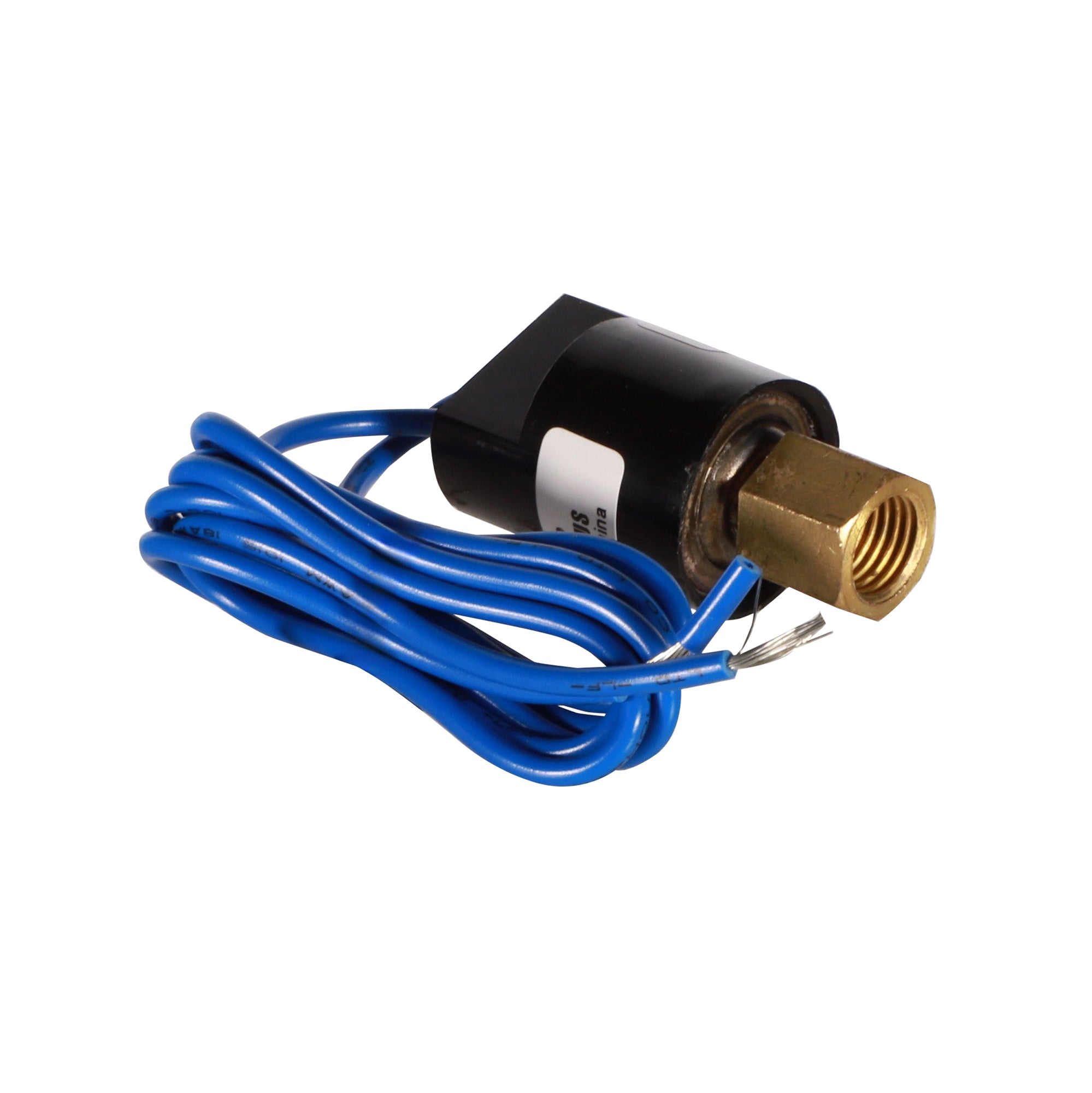

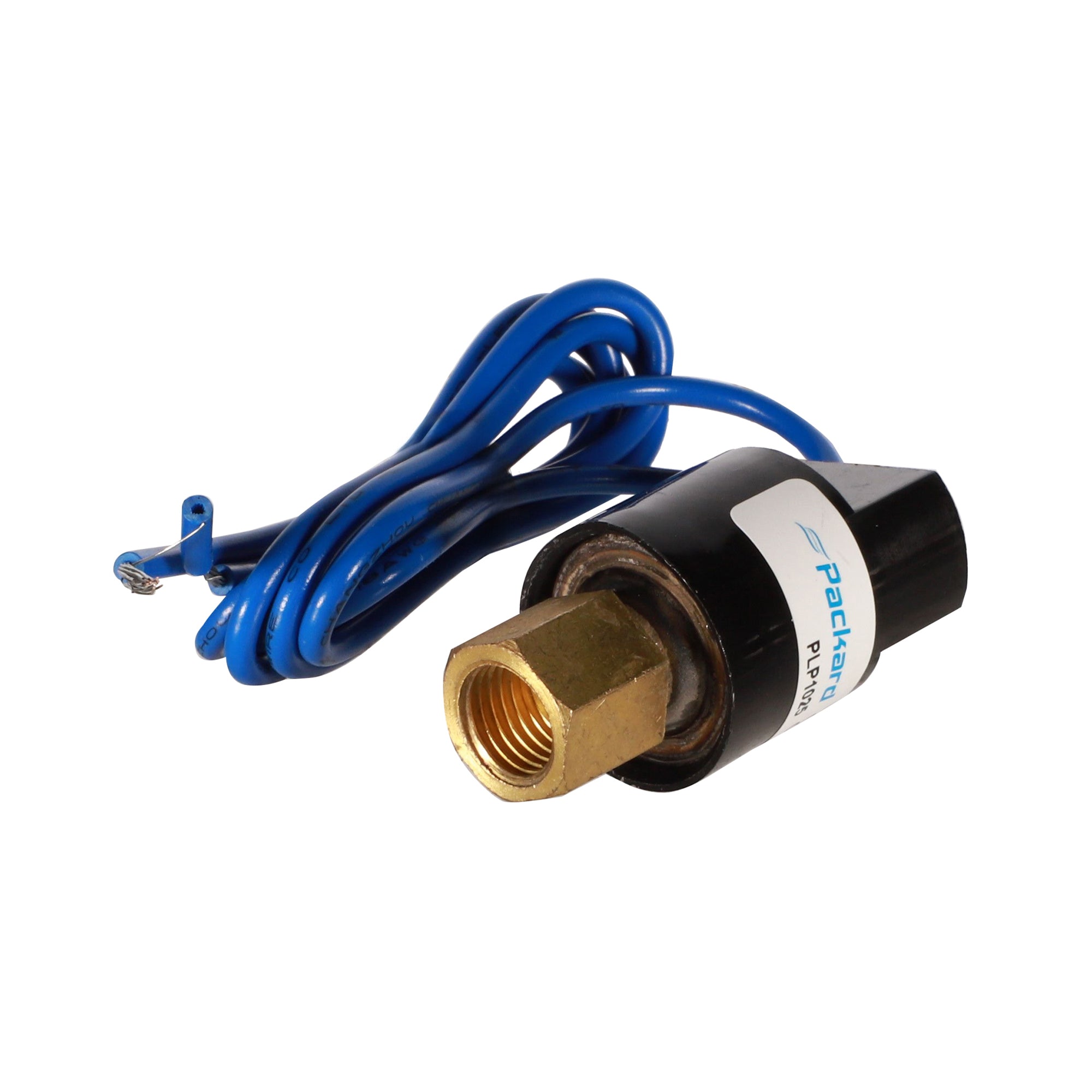

Packard PLP1025 Low Pressure Control +/-15 PSI (Open 10 PSI/Close 25 PSI) 24/120/240V (1/4 inches Flare)

Product Description

The Packard PLP1025 is a factory-set low pressure control switch that opens at 10 PSI and closes at 25 PSI with a 15 PSI differential. It is a non-adjustable, encapsulated single pole single throw (SPST) device for HVAC/R systems, rated for 24/120/240 V at 50/60 Hz and designed for direct mounting with a 1/4" SAE female flare connection.

• Set points: opens at 10 PSI, closes at 25 PSI; factory-set differential 15 PSI; pressure range 0 to 650 PSI; burst 5000 PSI
• Electrical: rated 24/120/240 V, 50/60 Hz; contact type SPST opens on pressure fall; electrical rating specified as 6 RLA, 36 LRA
• Construction: snap-acting stainless steel hermetically sealed sensor; 1/4" SAE female flare fitting with valve core depressor; life at rated load 100,000 cycles

Product Highlights

Factory-set low pressure control for HVAC/R applications with direct-mount 1/4" flare connection and hermetically sealed snap-acting sensor

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PLP1025

Technical Specifications

• Brand: Packard
• MPN: PLP1025
• Product Type: Low pressure control / pressure switch
• Set Point Open (PSI): 10
• Set Point Close (PSI): 25
• Differential/Tolerance (PSI): 15 (factory-set differential)
• Pressure Range: 0 to 650 PSI
• Burst Pressure: 5000 PSI
• Rated Voltage: 24/120/240 V
• Frequency: 50/60 Hz
• Electrical Rating: 6 RLA, 36 LRA
• Contact Type: Single pole single throw (SPST), opens on pressure fall
• Life at Rated Load: 100,000 cycles
• Pressure Connection Size: 1/4"
• Pressure Connection Type: SAE female flare fitting with valve core depressor
• Electrical Connection: Wire leads
• Sensor Type: Snap-acting stainless steel hermetically sealed sensor
• Mounting Type: Direct mount
• Compatible Refrigerants: HFC, HCFC, CFC
