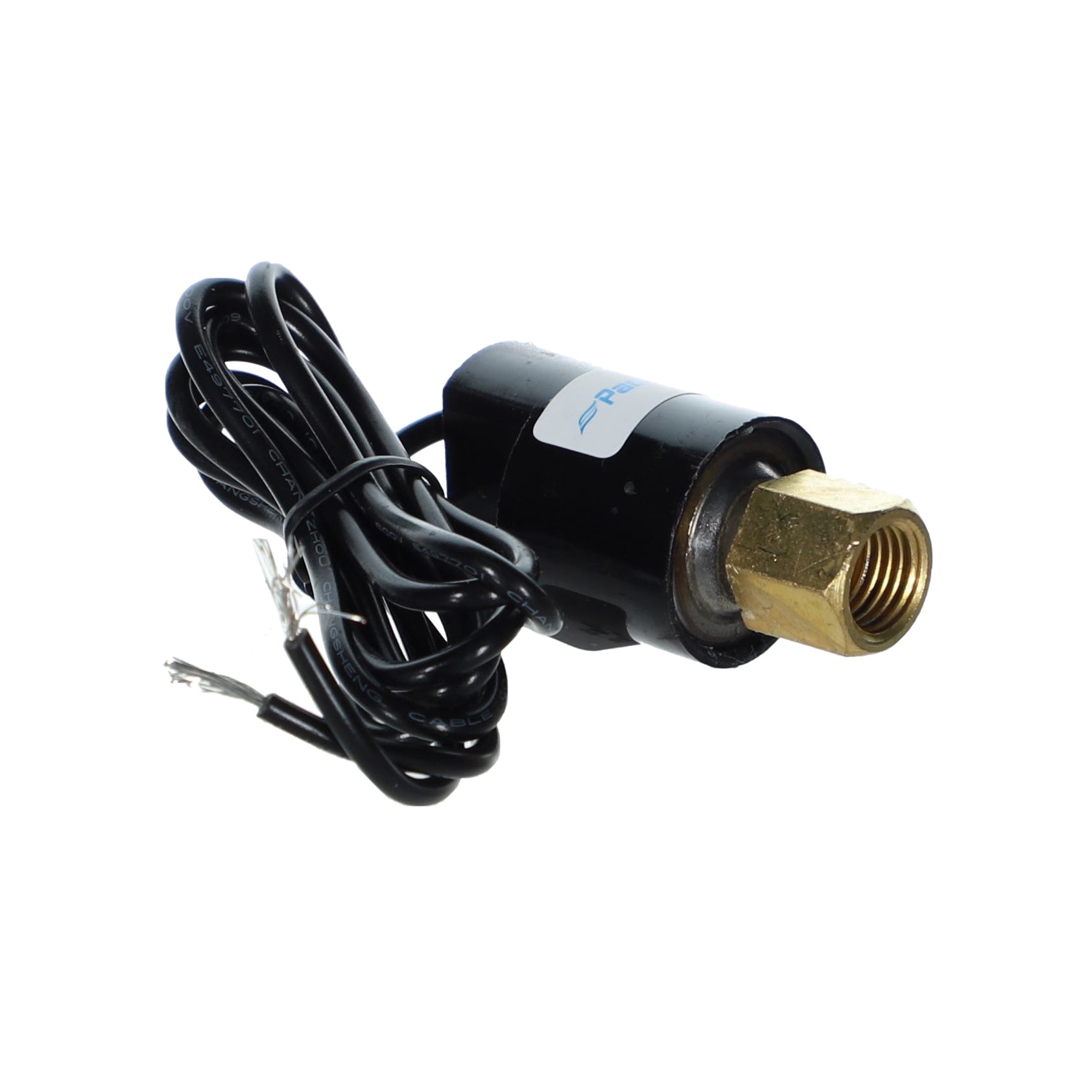

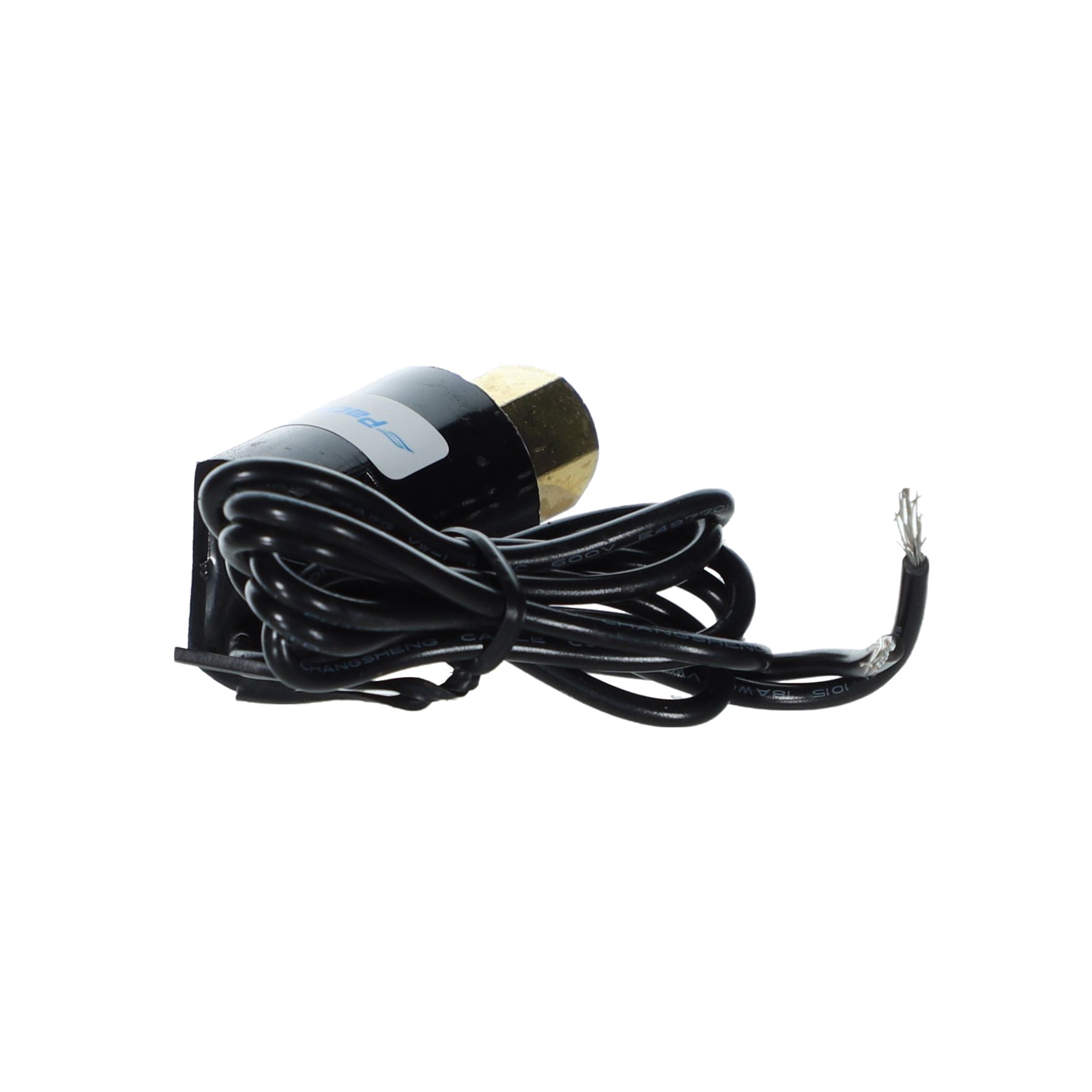

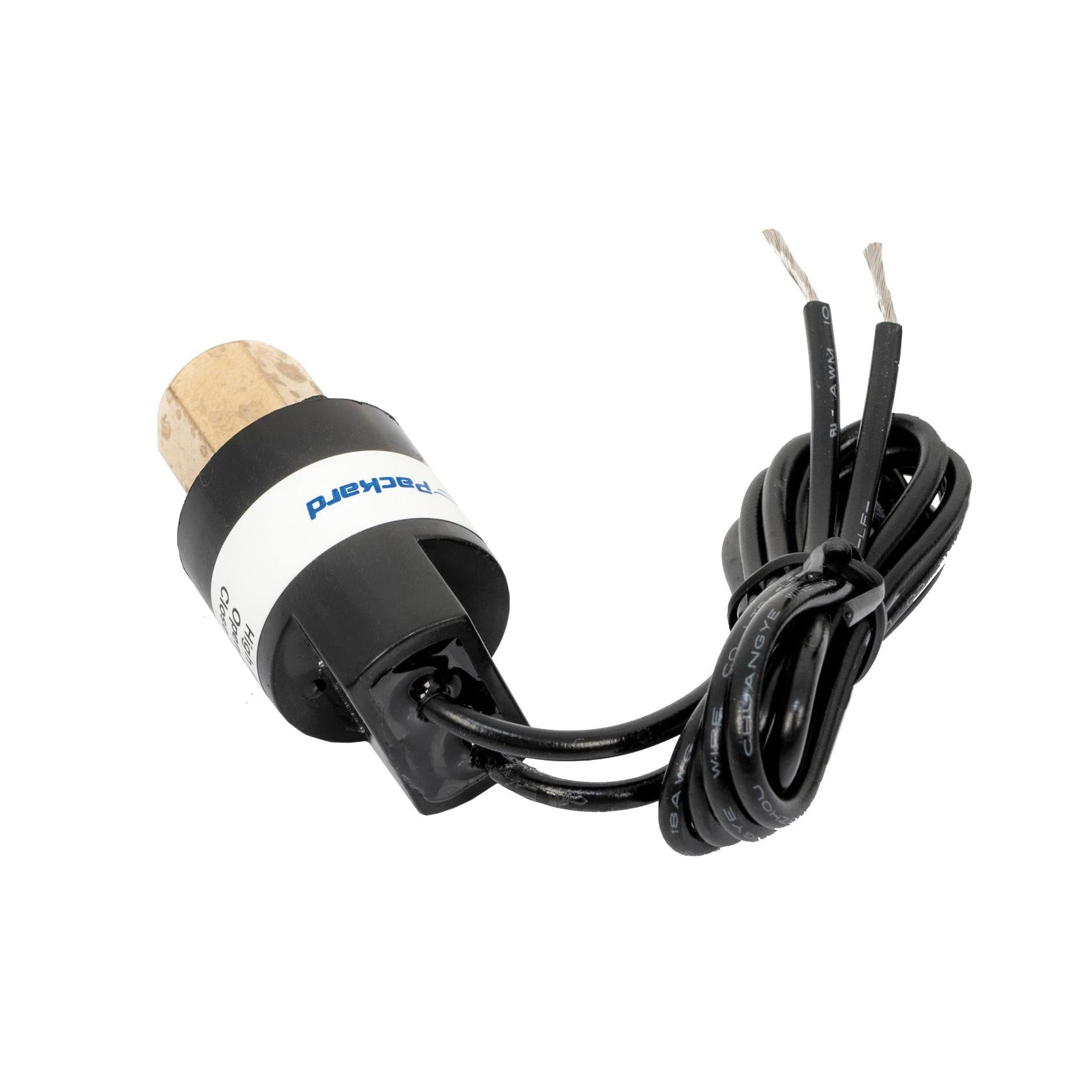

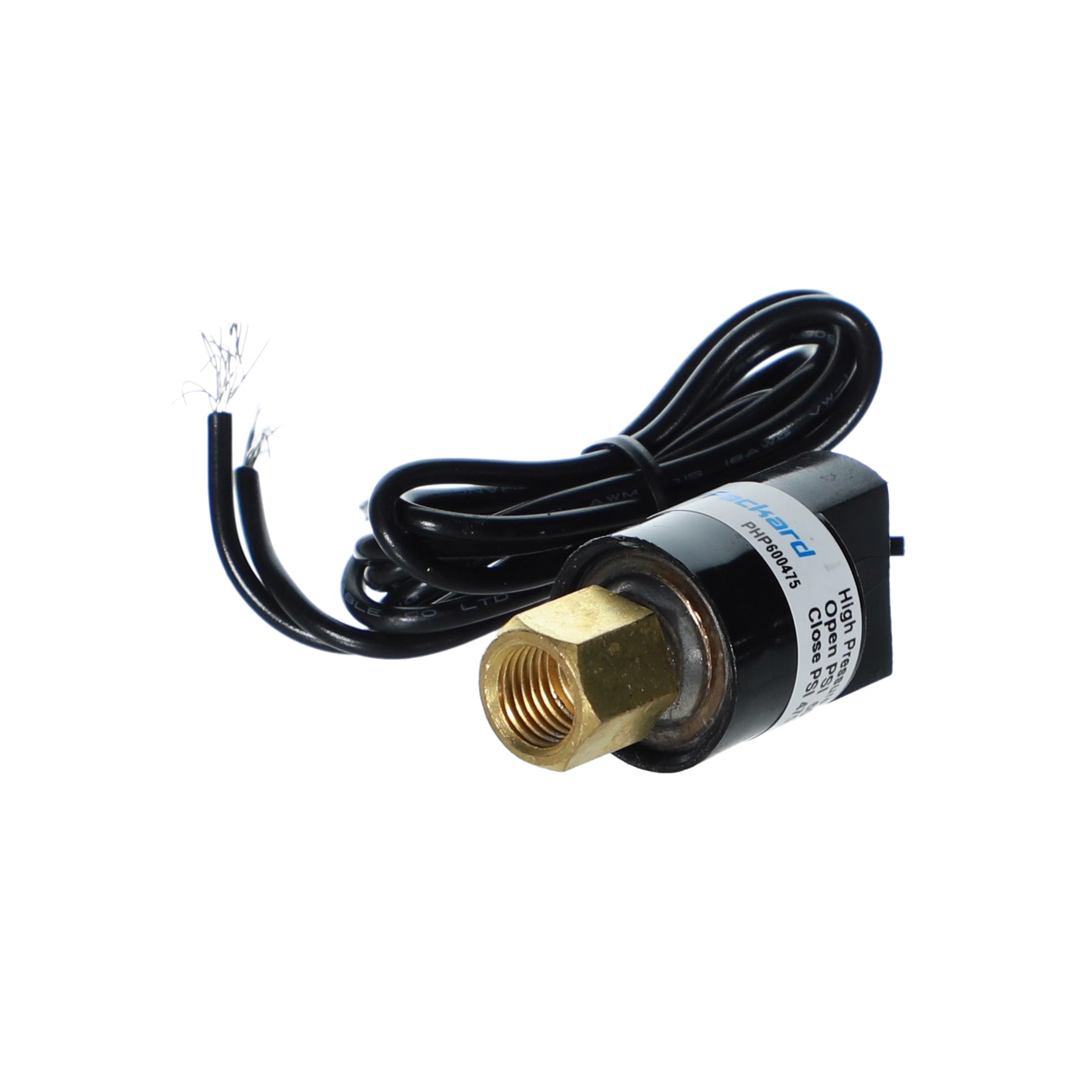

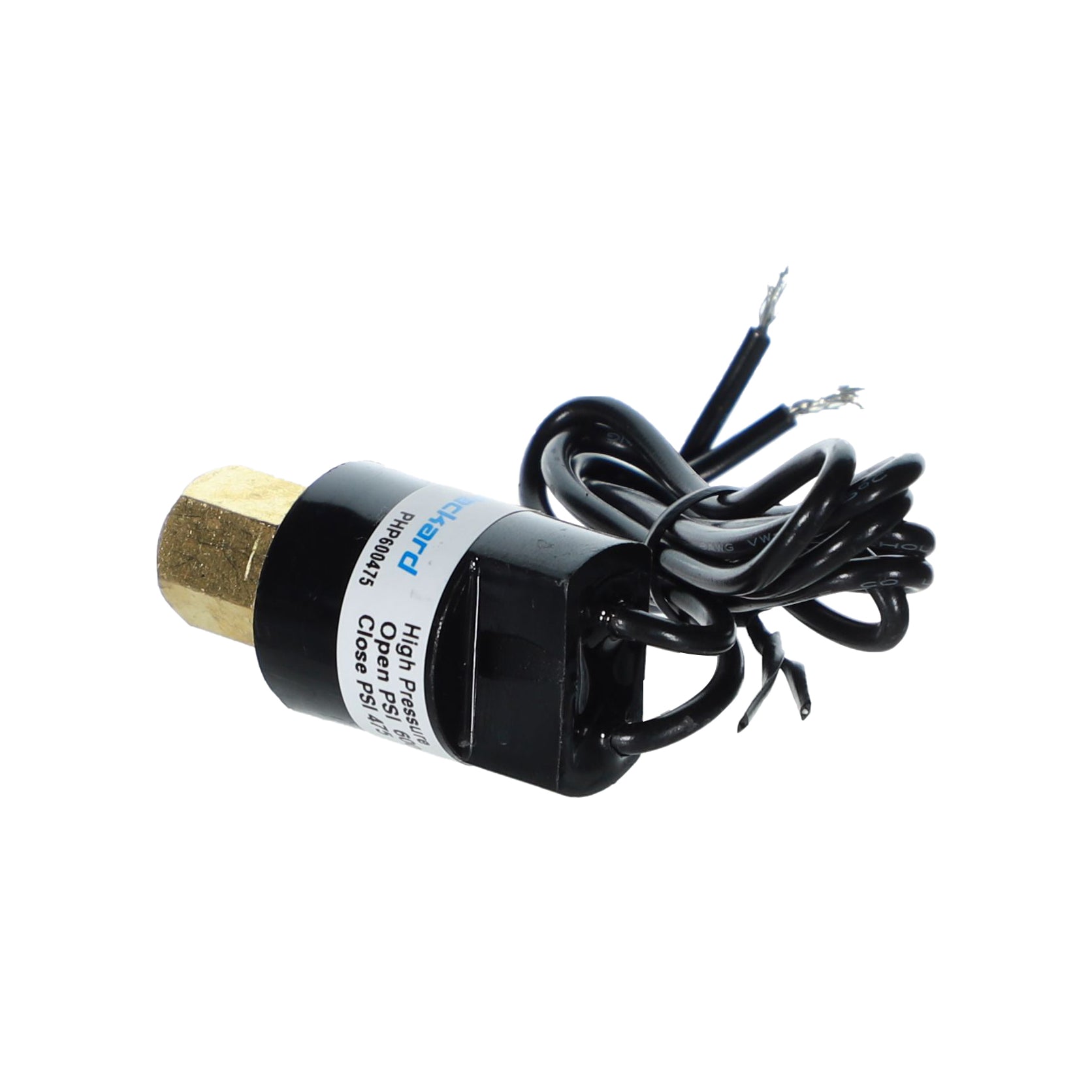

Packard PHP600475 High Pressure Control 24/120/240 VAC (1/4 in) 388633

Product Description

Packard PHP600475 is a high pressure control that opens at 600 PSI and closes at 475 PSI. The SPST switch is rated for 24/120/240 VAC (50/60 Hz) with 6 RLA and 36 LRA, a pressure range to 650 PSI and a 5000 PSI burst rating, and is designed for direct mounting in HVAC and refrigeration systems. It features a snap-acting stainless steel hermetically sealed sensor and is rated for 100,000 cycles.

• Opens at 600 PSI, closes at 475 PSI with +/-15 PSI tolerance; pressure range 0 to 650 PSI and 5000 PSI burst pressure
• Electrical rating 24/120/240 VAC, 50/60 Hz (6 RLA, 36 LRA); SPST switch with rated life 100,000 cycles
• 1/4 in SAE female flare connection with valve core depressor; snap-acting stainless steel hermetically sealed sensor; ambient -30 C to 80 C (-22 F to 176 F)

Product Highlights

High pressure control switch opens 600 PSI / closes 475 PSI; 24/120/240 VAC; 1/4 in female flare connection; 100,000 cycle life.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PHP600475
• Country of Origin: United States

Technical Specifications

• Brand: Packard
• Manufacturer: Packard
• Manufacturer Part Number: PHP600475
• Function: High pressure control (opens at 600 PSI, closes at 475 PSI)
• Open Pressure: 600 PSI
• Close Pressure: 475 PSI
• Tolerance: +/-15 PSI
• Pressure Range: 0 to 650 PSI
• Burst Pressure: 5000 PSI
• Switch Type: SPST
• Voltage Rating: 24/120/240 VAC
• Frequency: 50/60 Hz
• Electrical Rating Notes: 6 RLA, 36 LRA
• Rated Life: 100,000 cycles
• Connection Type: SAE female flare fitting with valve core depressor
• Connection Size: 1/4 in
• Lead Length: 18 in
• Sensor Type: Snap-acting stainless steel hermetically sealed sensor (SHP, SLP, SFC)
• Operating Temperature (Ambient): -30 C to 80 C (-22 F to 176 F)
• Operating Temperature (Fluid): -50 C to 120 C (-58 F to 248 F)
• Mounting: Direct mounting on tubing
• Application: Residential and commercial air conditioning and commercial refrigeration
• Weight (spec sheet): 0.20 lbs
• Alternate Part Number: 388633
• Alternate Supplier Part Number: MOTPHP600475
