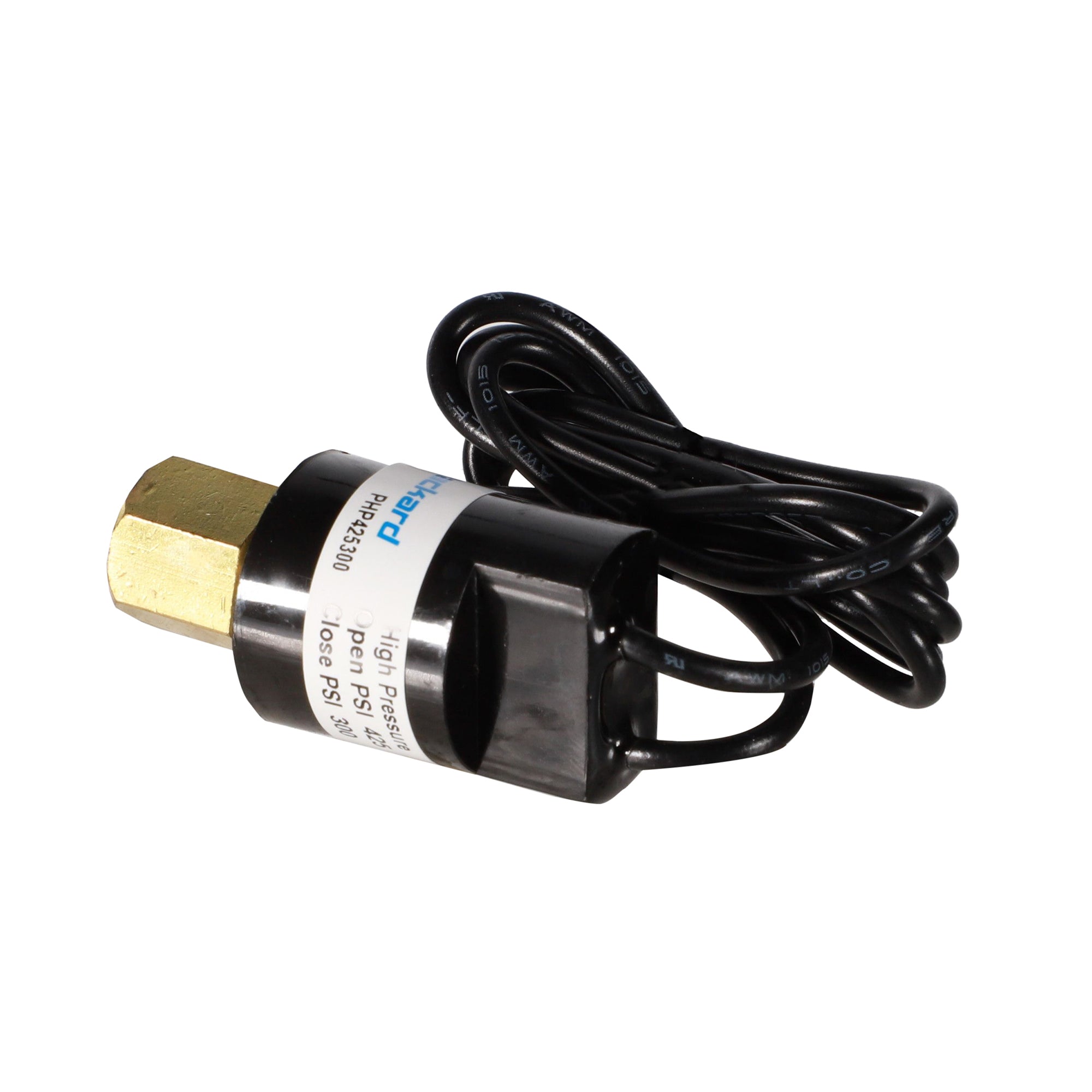

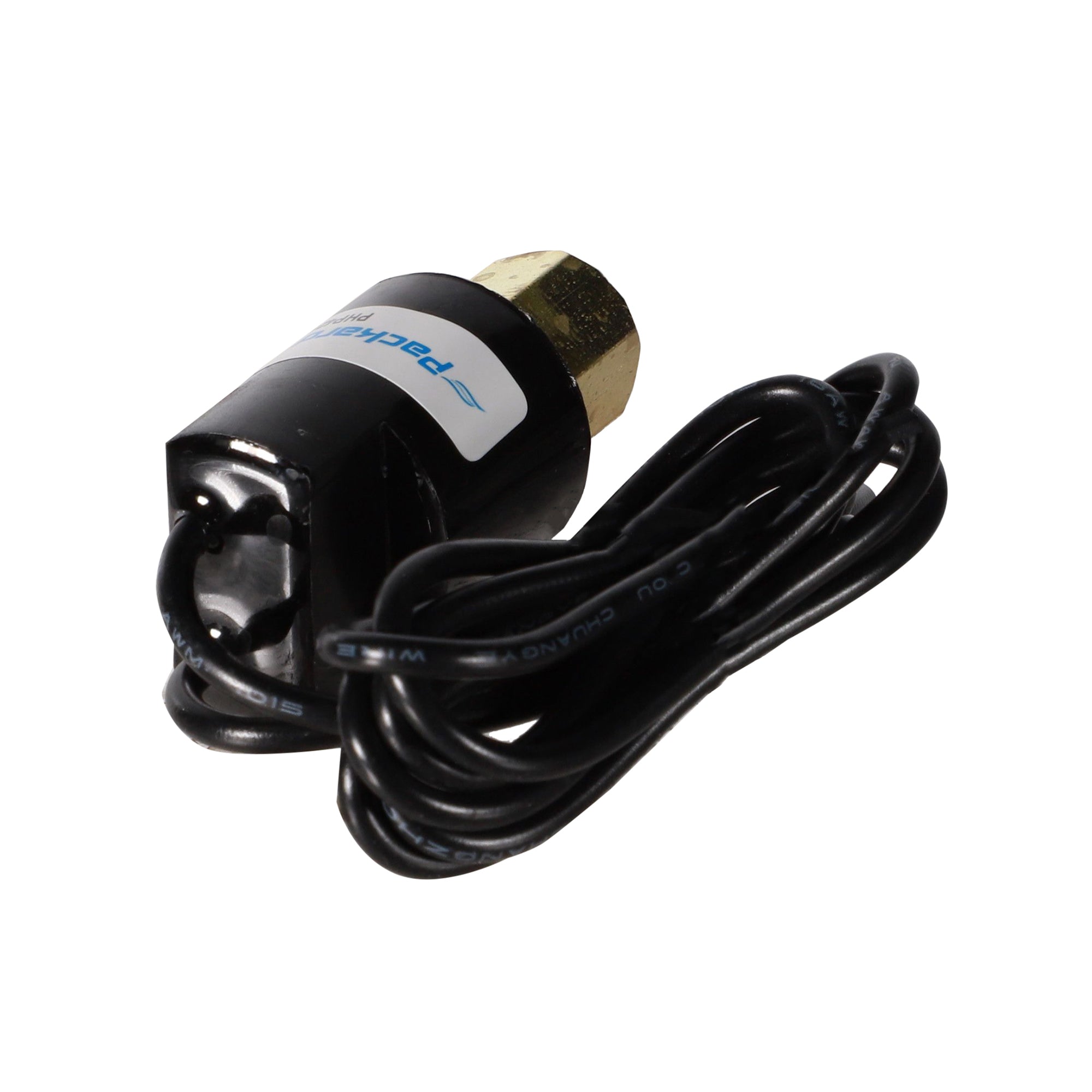

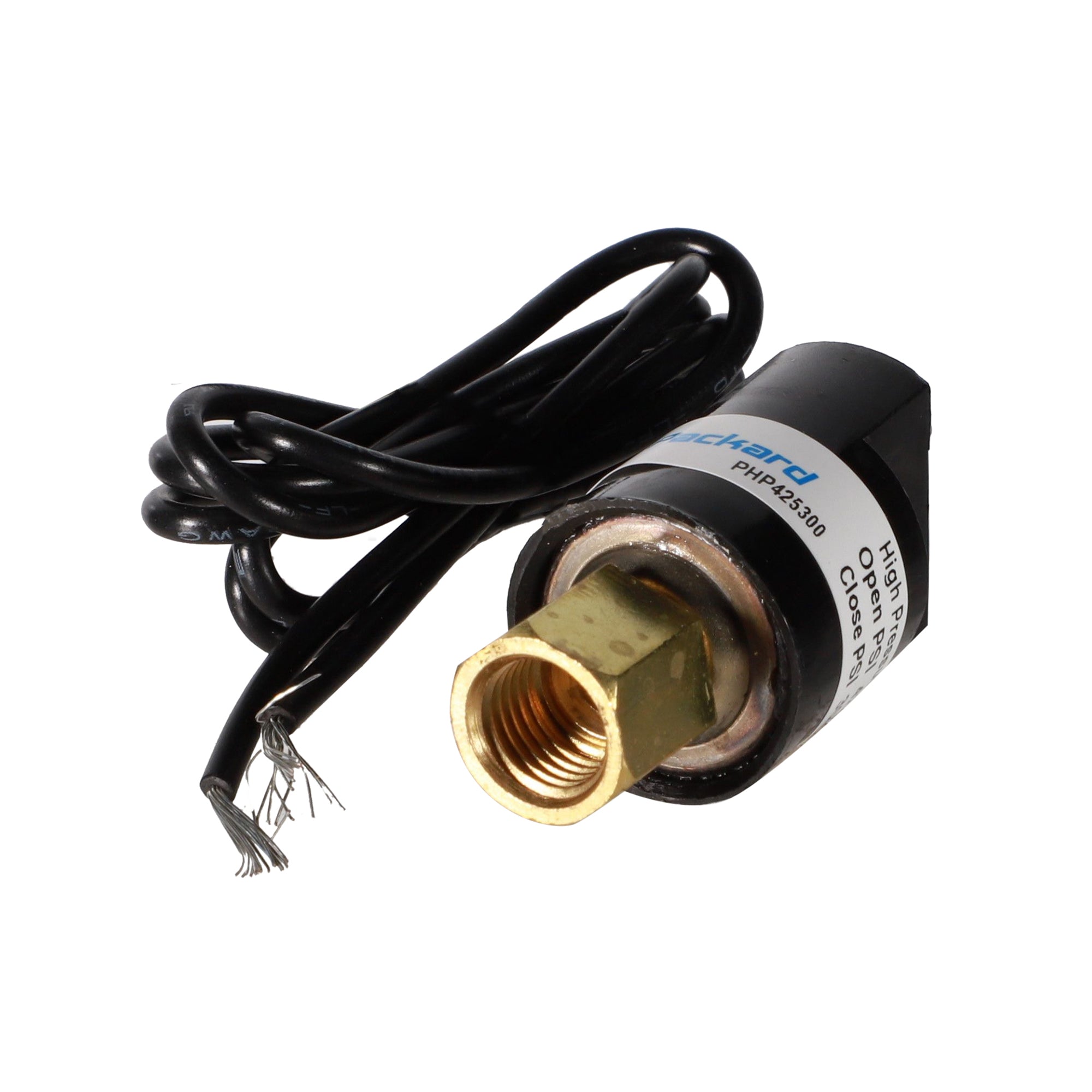

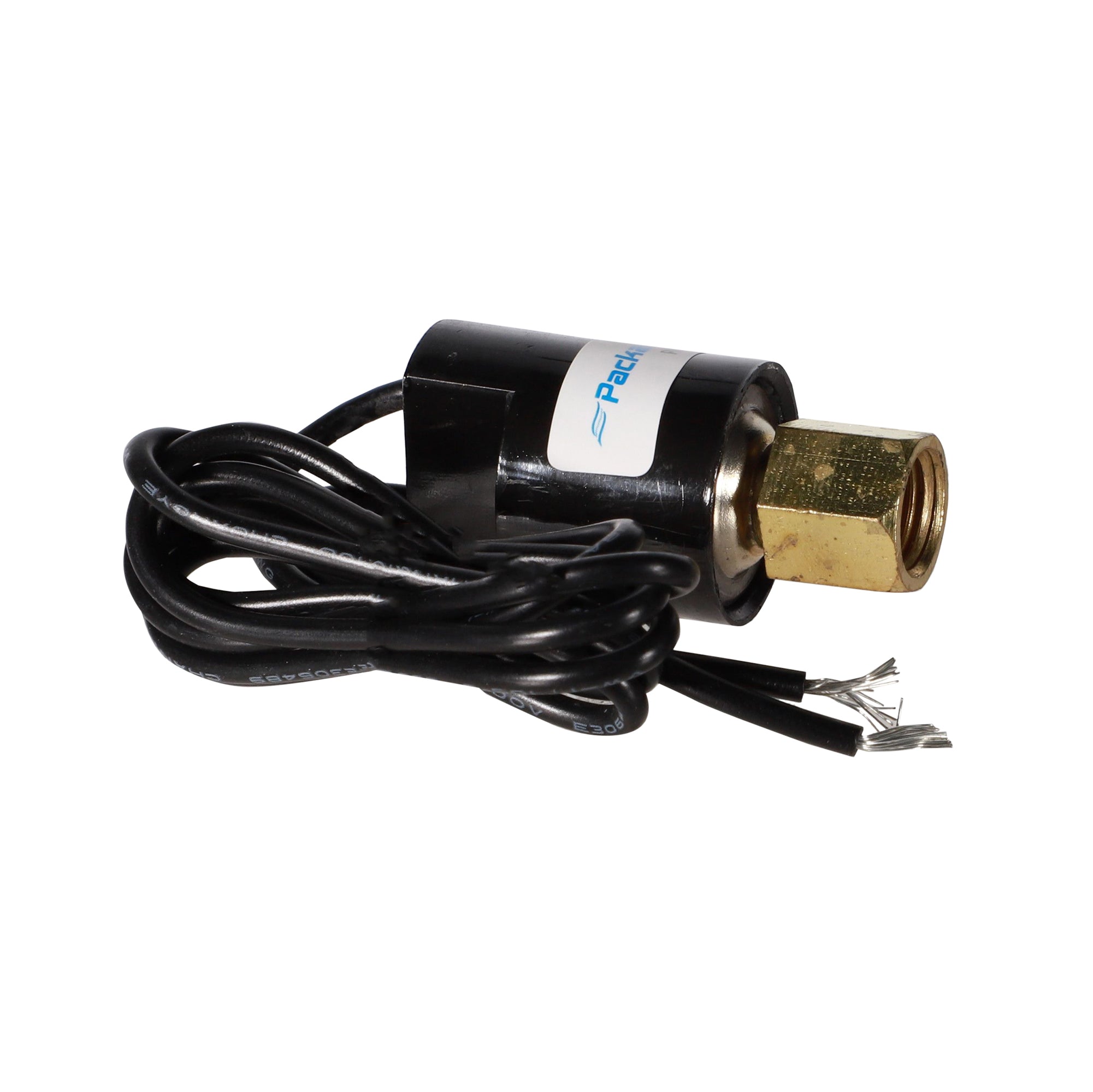

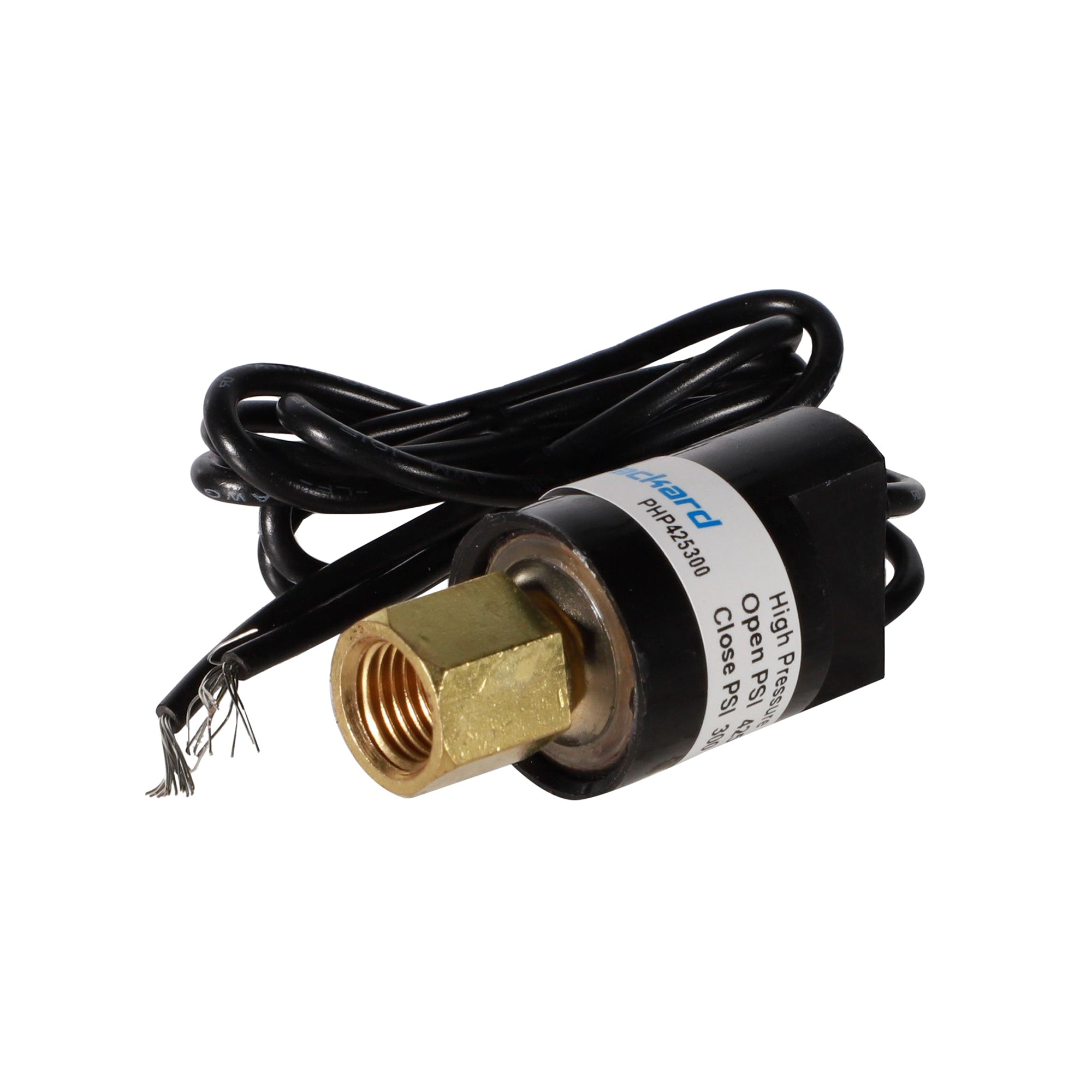

Packard PHP425300 High Pressure Control 24/120/240V (1/4 inches SAE) Supco SHP425300

Product Description

Packard PHP425300 is a high-pressure control switch that opens at 425 psi and closes at 300 psi with ±15 psi tolerance. It uses an SPST contact that opens on pressure fall and a snap-acting stainless steel hermetically sealed sensor. Electrical rating is 24/120/240 V (50/60 Hz) with 6 RLA/36 LRA. Connection is a 1/4" SAE female flare with valve core depressor. Operating ambient 20°F–176°F, fluid 60°F–250°F; pressure range 0–650 psi; burst 5000 psi.

• Set points: opens 425 psi, closes 300 psi, ±15 psi tolerance
• Electrical: 24/120/240 V (50/60 Hz); 6 RLA, 36 LRA; SPST contact (opens on pressure fall)
• Construction: snap-acting stainless steel hermetically sealed sensor; 1/4" SAE female flare fitting with valve core depressor; 100,000 cycles mechanical life

Product Highlights

High-pressure SPST safety/control switch with 425/300 psi set points, 24/120/240 V rating, and 1/4" SAE flare connection

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PHP425300
• Country of Origin: China

Technical Specifications

• Brand: Packard
• MPN: PHP425300
• Product Name: High pressure control (SPST)
• Switch Type: High pressure SPST (opens on pressure fall)
• Open Pressure: 425 psi
• Close Pressure: 300 psi
• Set Point Tolerance: ±15 psi
• Pressure Range: 0 to 650 psi
• Burst Pressure: 5000 psi
• Sensor Type: Snap-acting stainless steel hermetically sealed (SHP, SLP, SFC)
• Connection Type: 1/4" SAE female flare fitting with valve core depressor
• Rated Voltage: 24/120/240 V (50/60 Hz)
• Electrical Rating: 6 RLA, 36 LRA
• Operating Temperature (Ambient): 20°F to 176°F (-30°C to 80°C)
• Operating Temperature (Fluid): 60°F to 250°F (-50°C to 120°C)
• Mechanical Life: 100,000 cycles at rated load
• Mounting: Direct mount
• Dimensions (W x H x D): 5.4 in x 3.2 in x 1.4 in
• Weight: 0.15 lb
• Lead Length: 18 in
• Certifications: UL
• Country of Origin: China
• Cross Reference / Replacement MPNs: Jard 43932; Johnson Controls P100CA-2; Klixon 43332; Klixon PS80-K1-0360-425-300; Mars 43332, 33325, 43932; Ranco MPH7108; Robertshaw 3100-203; Supco SHP425300
