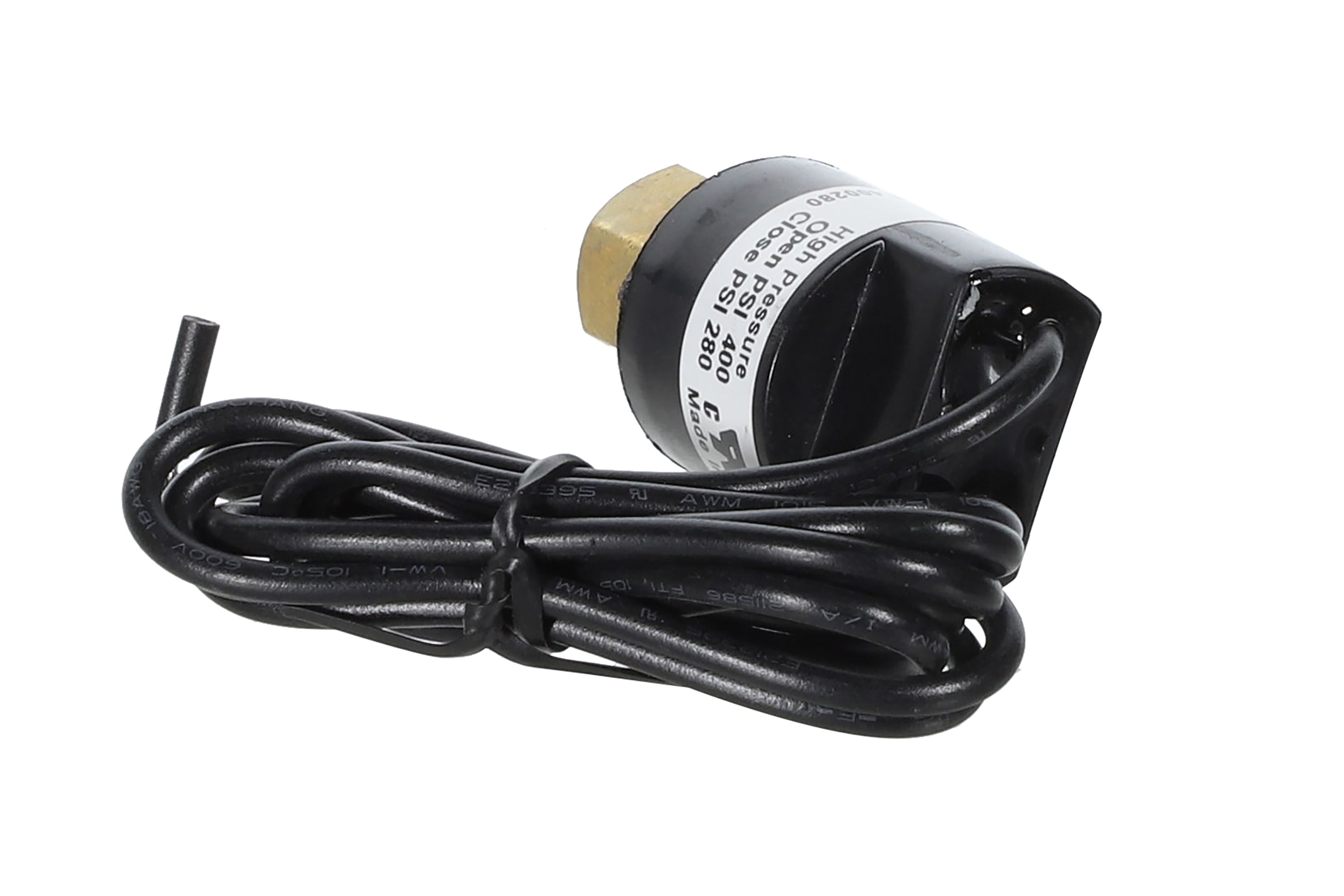

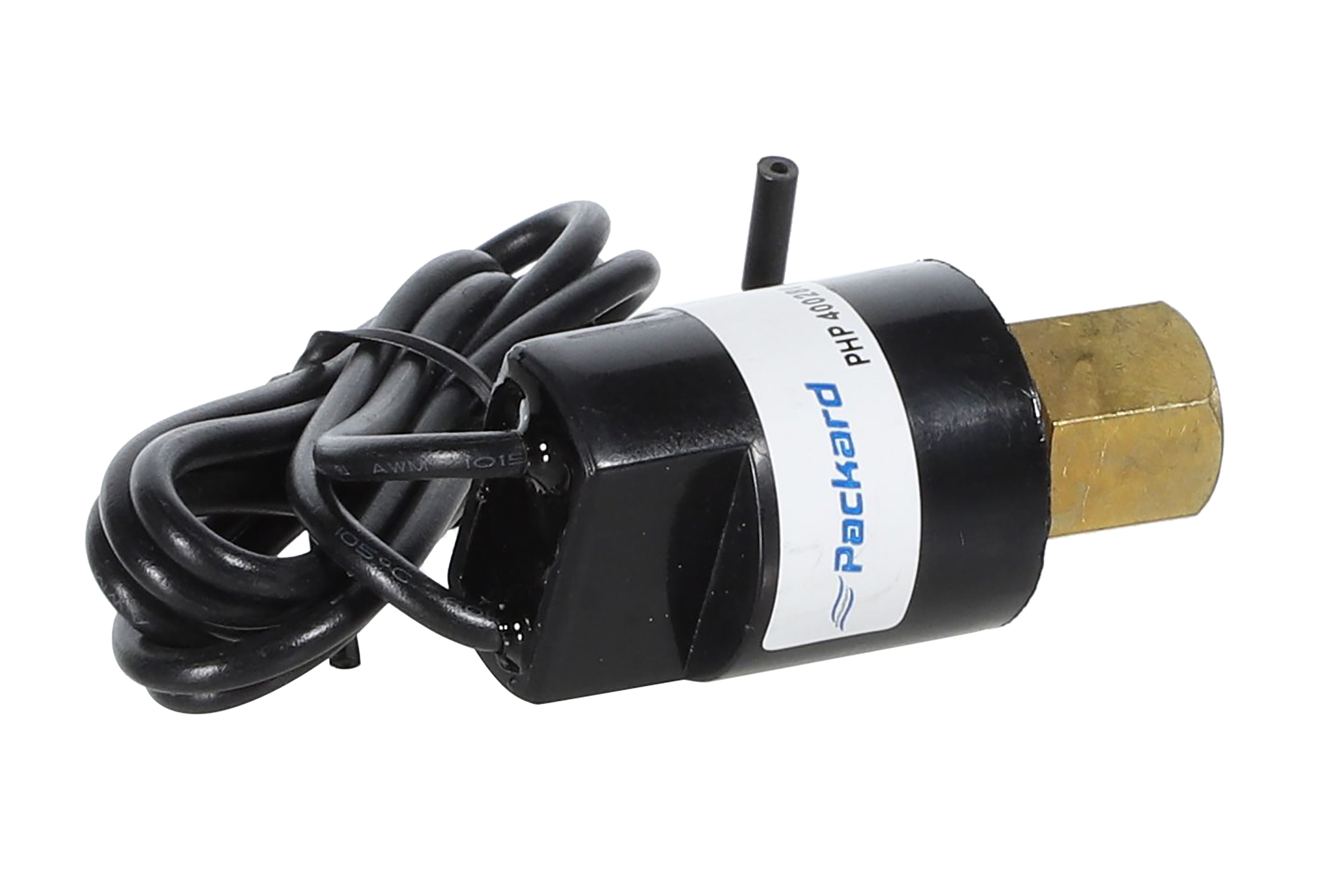

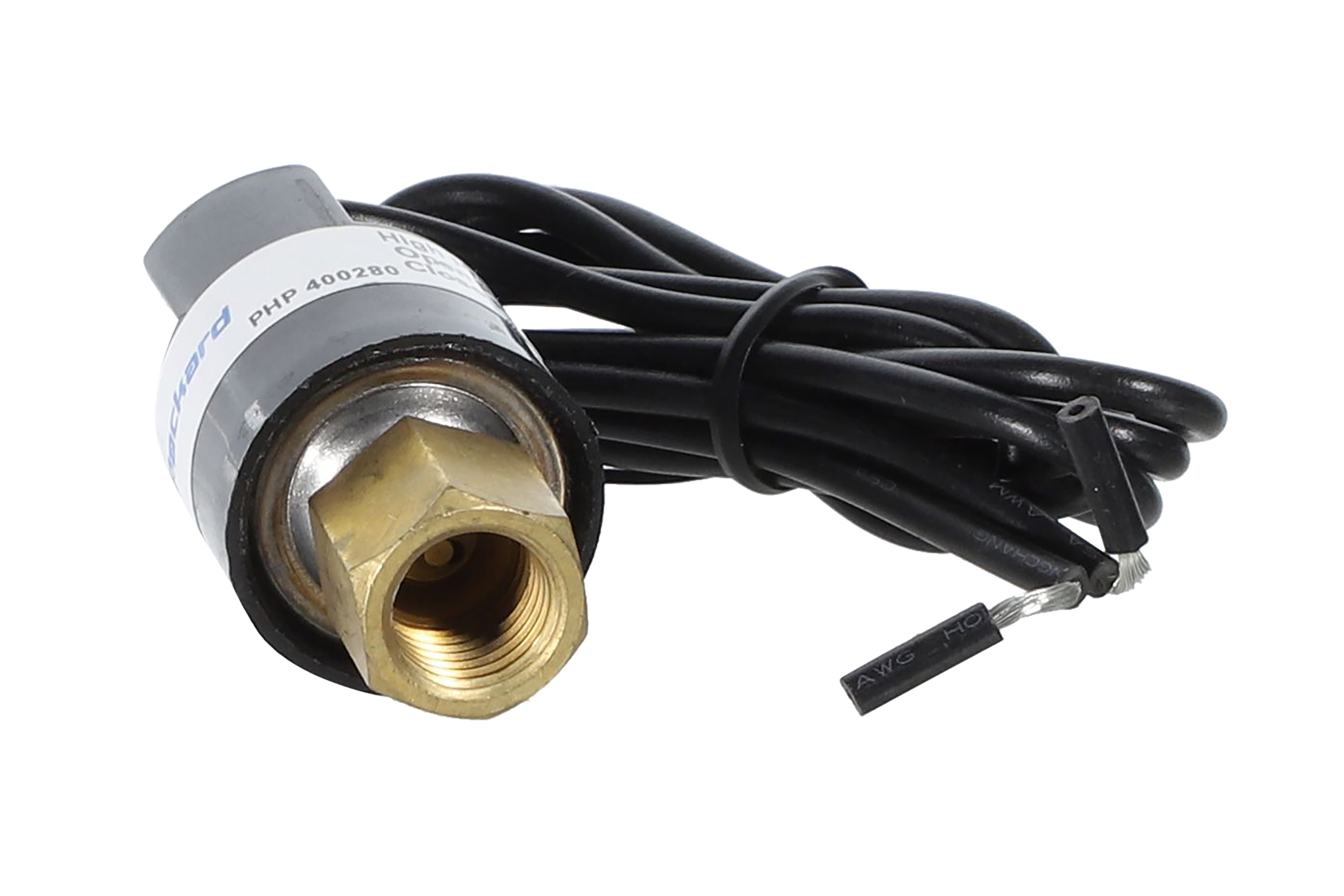

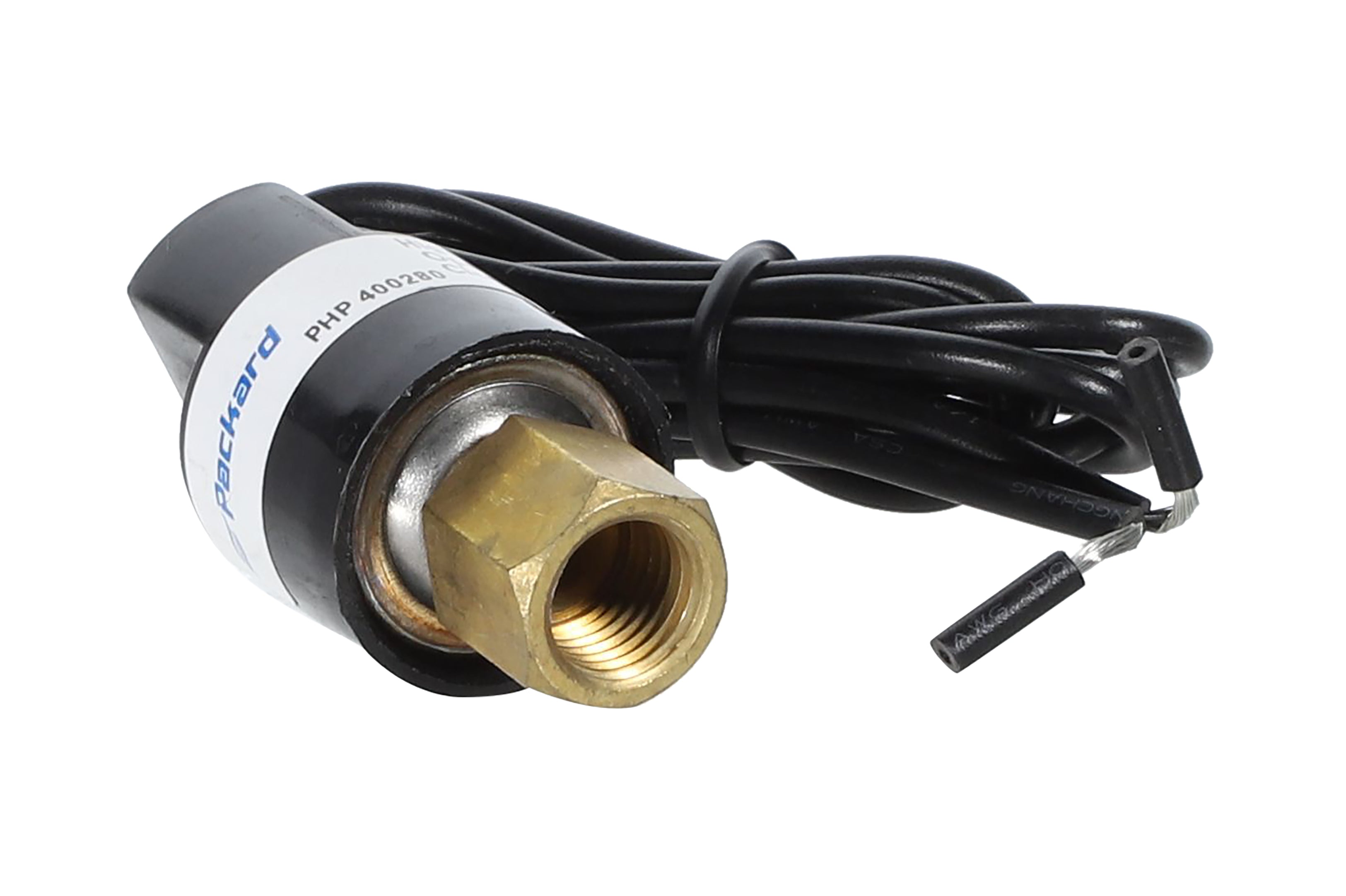

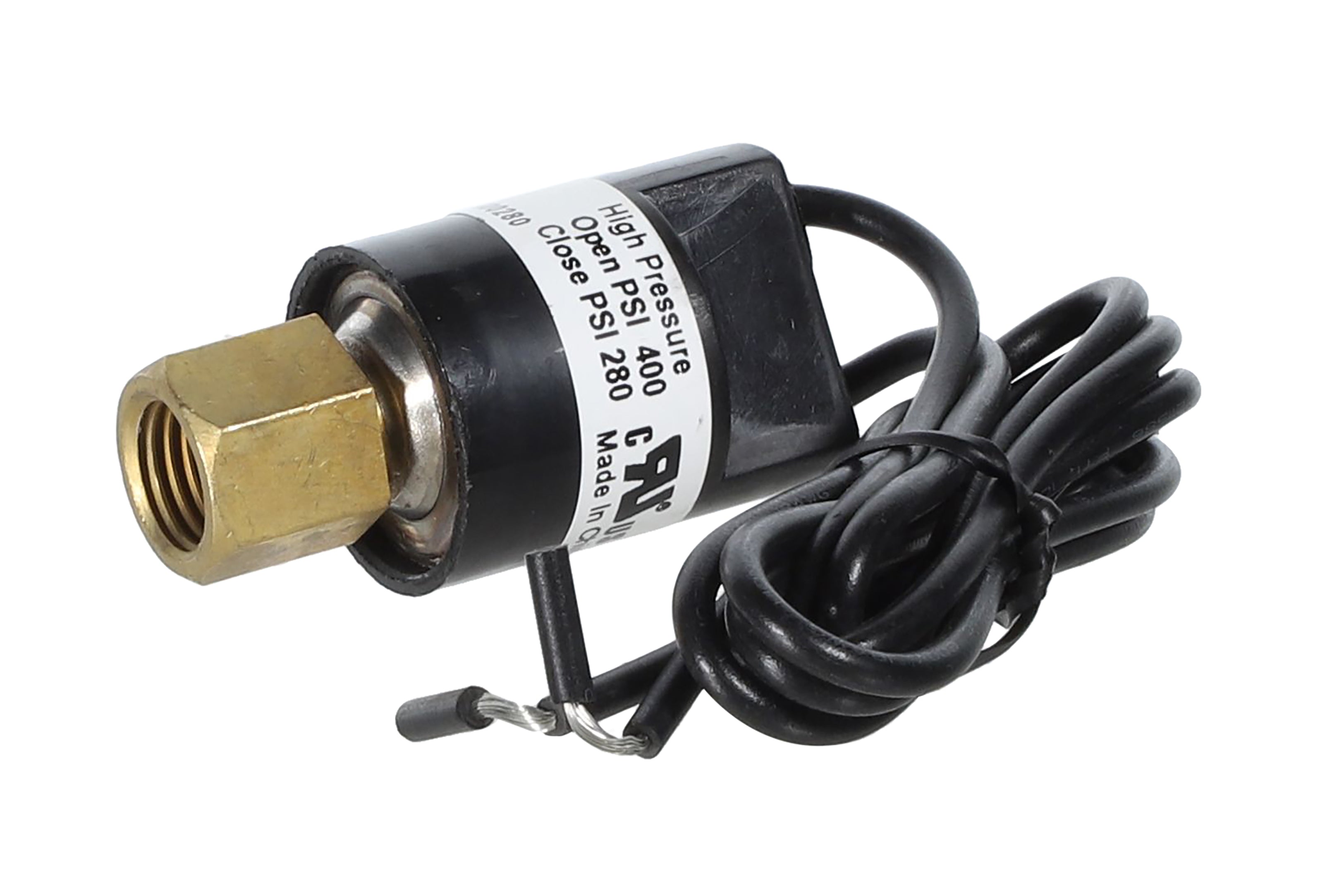

Packard PHP400280 High pressure control 24/120/240 V (EA) Jard 43930

Product Description

The Packard PHP400280 is a high pressure control that opens at 400 PSI and closes at 280 PSI with +/-15 PSI tolerance. It is a SPST switch that opens on pressure fall and uses a snap-acting stainless steel hermetically sealed sensor. Rated for 50/60 Hz at 24/120/240 V with a life at rated load of 100,000 cycles, it includes a 1/4" SAE female flare fitting with valve core depressor and a 0 to 650 PSI range.

• Opens at 400 PSI and closes at 280 PSI with +/-15 PSI tolerance; pressure range 0 to 650 PSI; burst pressure 5000 PSI
• Electrical: 50/60 Hz, 24/120/240 V (6 RLA, 36 LRA); snap-acting stainless steel hermetically sealed sensor; SPST open on pressure fall
• Mechanical: 1/4" SAE female flare fitting with valve core depressor; ambient 20 F to 176 F (-30 C to 80 C); fluid 60 F to 250 F (-50 C to 120 C)

Product Highlights

High pressure SPST control, opens 400 PSI/ closes 280 PSI (+/-15 PSI), rated 24/120/240 V, 1/4" SAE female connection, 0–650 PSI range, 100,000 cycle life

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PHP400280
• Country of Origin: China

Technical Specifications

• Brand: Packard
• MPN: PHP400280
• Product Type: Pressure control
• Open Pressure (PSI): 400
• Close Pressure (PSI): 280
• Tolerance: +/-15 PSI
• Pressure Range (PSI): 0 to 650
• Burst Pressure (PSI): 5000
• Input Voltage: 24/120/240 V
• Rated Frequency: 50/60 Hz
• Electrical Rating: 6 RLA, 36 LRA
• Life at Rated Load: 100,000 cycles
• Connection Type: SAE female flare fitting with valve core depressor
• Connection Size: 1/4"
• Sensor Type: Snap-acting stainless steel hermetically sealed (SHP, SLP, SFC)
• Operating Temperature (Ambient): 20 F to 176 F (-30 C to 80 C)
• Operating Temperature (Fluid): 60 F to 250 F (-50 C to 120 C)
• Dimensions (W x H x D in): 5.5 x 3.3 x 1.7
• Weight (lbs): 0.13
• Lead Length (in): 18
• Certifications: UL
• Country of Origin: China
• Cross References / Alternate Part Numbers: Jard 43930; Klixon PS80-K1-0358-400-280; Mars 33322, 43330, 43930; Supco SHP400280
• UPC: 840899121154
• GTIN: 840899121154
