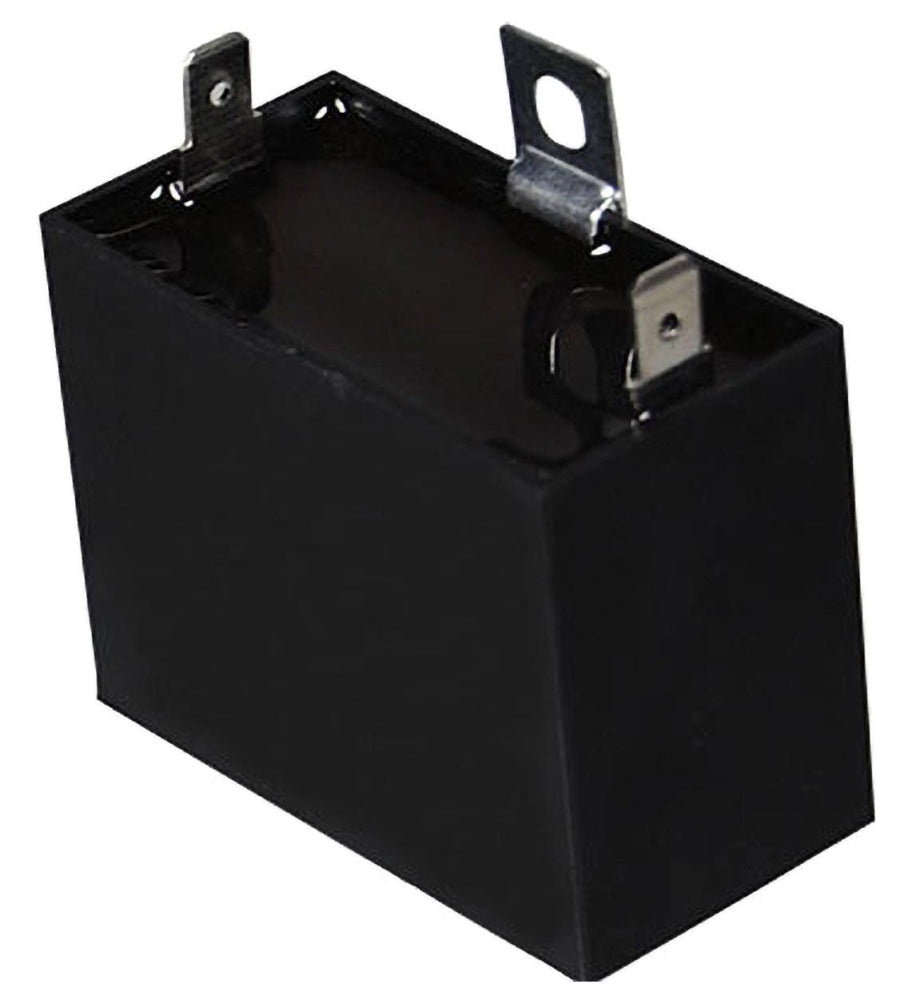

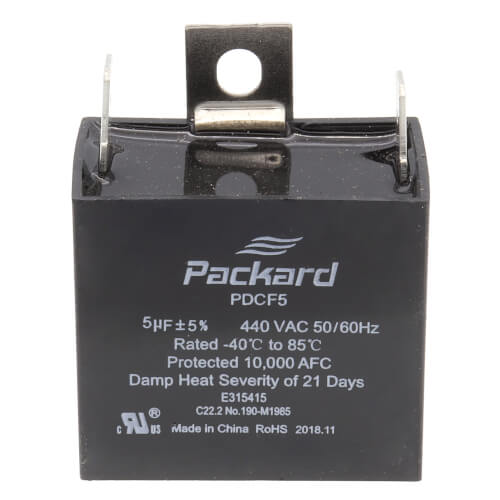

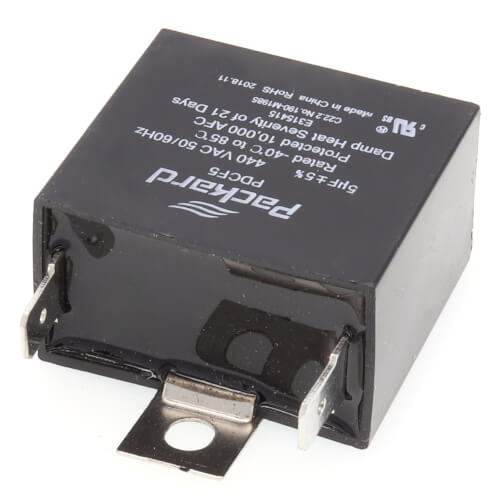

Packard PDCF5 440V Dry AC Motor Run Capacitor (5 MFD)

Product Description

The Packard PDCF5 is a 440 volt dry AC motor run capacitor, designed for various electric motor applications. This dual-section run capacitor is built with dielectric metalized polypropylene film, ensuring reliable performance in HVAC systems. It is suitable for motors used in fans, pumps, and blowers.

• Capacitance of 5 Microfarad
• Voltage rating of 440 VAC 50/60 Hz
• ABS plastic can for durability

Product Highlights

This capacitor is equipped with quick connect terminals for easy installation and has a temperature operating range of negative forty degrees Celsius to eighty-five degrees Celsius. The tolerance level of plus or minus five percent ensures accuracy in performance.

Product Information

Standard Information

• Manufacturer: Packard
• UPC: 84089910996

Technical Specifications

• Capacitance: 5 Microfarad
• Voltage Rating: 440 Volt AC 50/60 Hertz
• Can Size: 0.94 Inch Length x 2 Inch Width x 2 Inch Height
• Can Material: ABS Plastic
• Film Material: Dielectric Metalized Polypropylene
• Terminal Type: (2) 1/4 Inch Blade Quick Connect
• Operating Temperature Rating: -40 to 85 Deg C
• Tolerance: +/-5 Percent
• Included Mounting: Metal Tab Mounting Bracket
• Approval: UL
