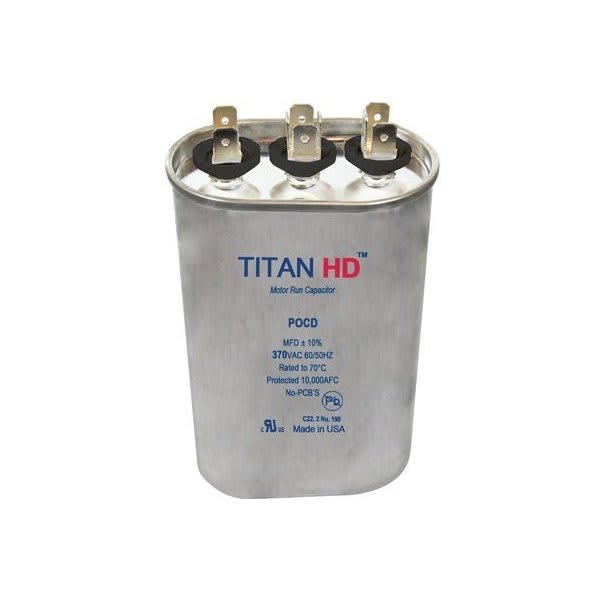

PACKARD OV45-370 Titan HD Run Capacitor - 45/15 uF, 370V

Product Description

The PACKARD OV45-370 Titan HD Run Capacitor is suitable for motor run applications. It has an oval shape and is made with an aluminum case. This capacitor operates at fifty to sixty Hertz and is rated for forty-five over fifteen microfarads at three hundred seventy volts. It works efficiently in temperatures ranging from negative forty degrees Celsius to seventy degrees Celsius. The capacitor utilizes metalized polypropylene film technology for self-restoration and has a UL-approved pressure sensitive interrupter for enhanced safety.

• Operating life of sixty thousand hours.
• Constructed with metalized polypropylene film for reliable performance.
• Includes a UL-approved safety interrupter for end-of-life protection.

Product Highlights

This capacitor is manufactured in the USA and meets EIA-456-A industry standards. Its eco-friendly oil helps prevent corrosion and improves heat transfer.

Product Information

Standard Information

• Brand: PACKARD, INC.
• MPN: OV45-370

Technical Specifications

• Capacitor Shape: Oval
• Capacitor Type: Motor Run Capacitor
• Case Material: Aluminum
• Frequency: 50/60 Hz
• Maximum Working Temperature: 70 C
• Microfarad Rating: 45/15
• Minimum Working Temperature: -40 C
• Package Quantity: 5
• Voltage: 370 V
• Product Depth: 1.75 inches
• Product Height: 2.91 inches
• Product Width: 2.75 inches
• Weight: 0.530 LB
