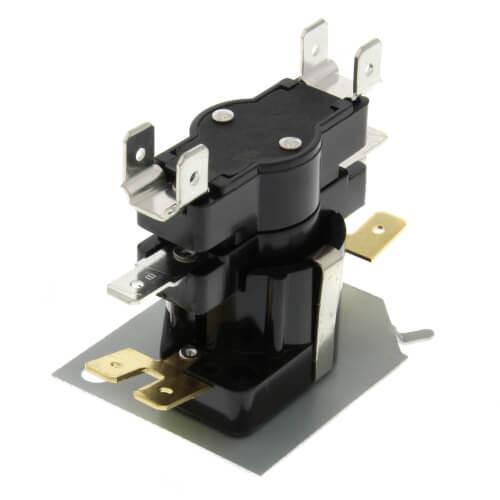

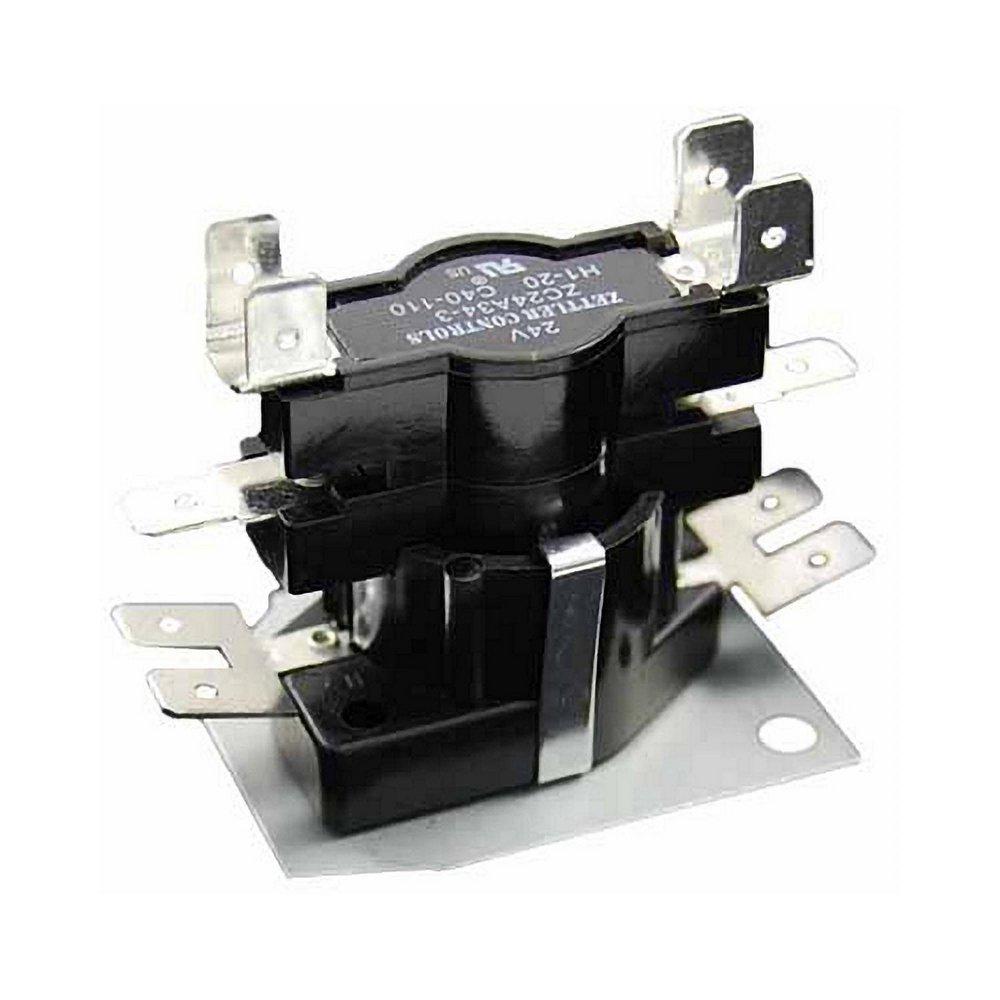

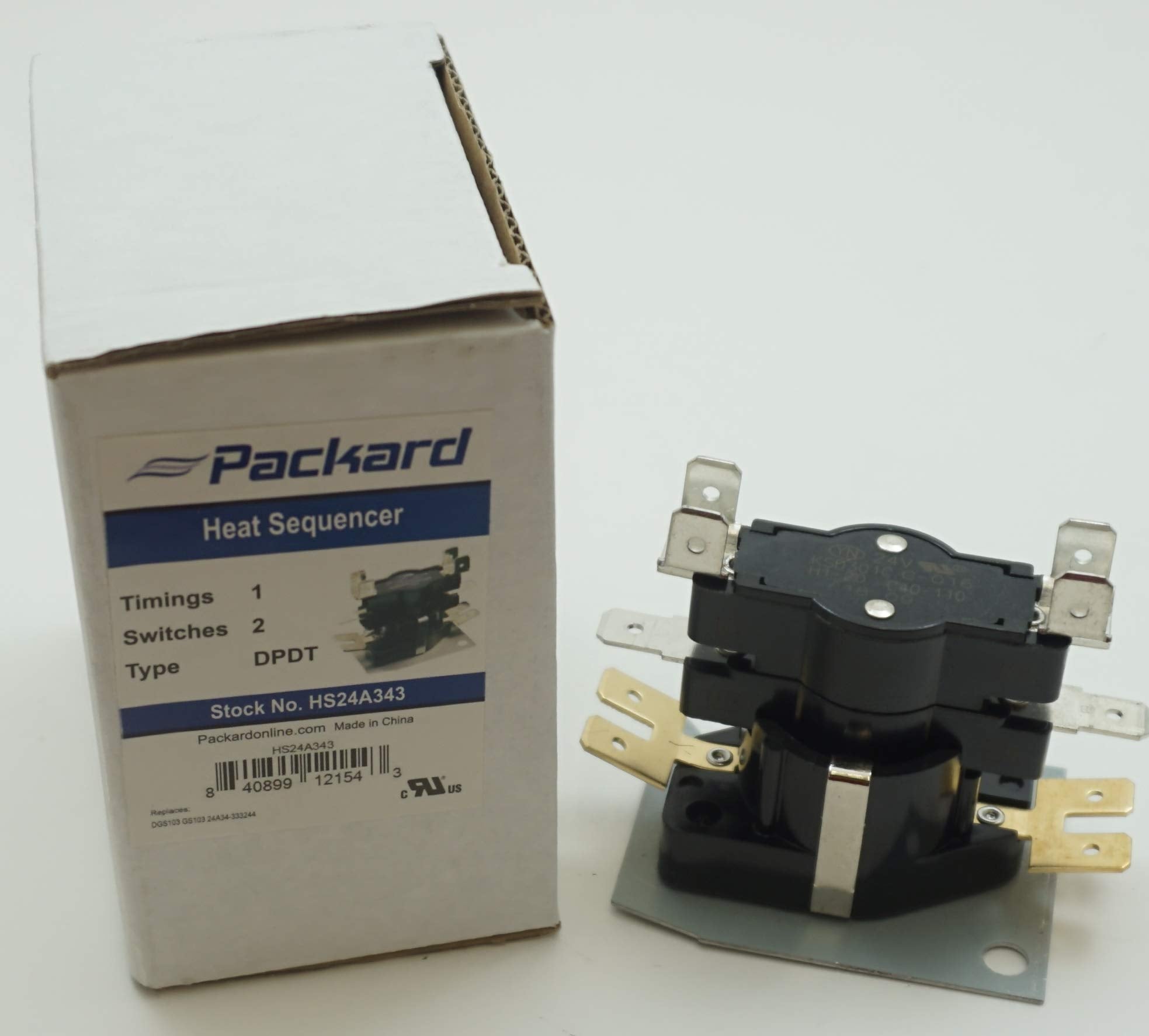

Packard HS24A343 120/240/480V Heat Sequencer

Product Description

The Packard HS24A343 is a versatile heat sequencer designed for electric heating systems. This model operates effectively at 120, 240, and 480 volts, making it suitable for a variety of applications. It features one timing setting and two switches, ensuring reliable performance in demanding environments.

• Fully solid-state design
• Compatible with multiple part numbers including 1056789 and 60000EOM51172
• Shock and vibration resistant for durability

Product Highlights

This heat sequencer is built to handle contact ratings of up to twenty-five amps at 120 or 240 volts, and twelve point five amps at 480 volts. It functions in a standard ambient temperature range between negative fifty degrees Fahrenheit and one hundred sixty-five degrees Fahrenheit. Quick-connect terminals simplify installation.

Product Information

Standard Information

• Brand: Packard
• MPN: HS24A343

Technical Specifications

• Voltage Ratings: 120V, 240V, 480V
• Max Amperage: 25A at 120V, 25A at 240V, 12.5A at 480V
• Operational Temperature Range: -50°F to 165°F
• Switch Configuration: DPDT
• Timings: 1
• Weight: 0.12 lbs
• Dimensions: Length 3.3 inches, Width 2.9 inches, Height 1.95 inches
