Packard EM552 Vent Fan Motor 120V 0.95 Amps

Product Description

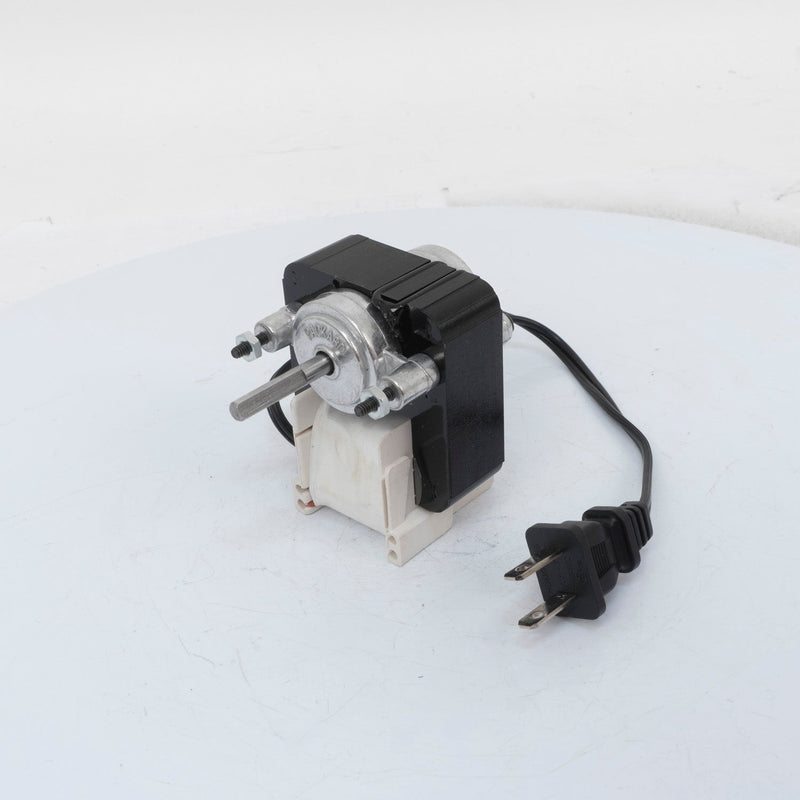

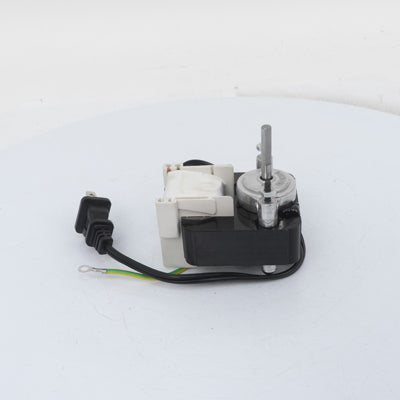

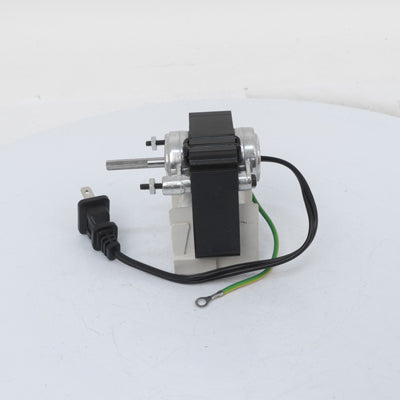

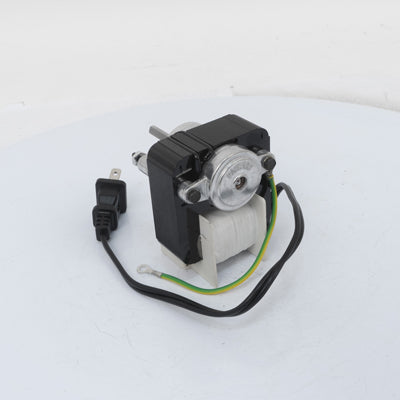

The Packard EM552 is a shaded pole motor designed for bath ventilation and other ventilator applications. This motor operates at 120V, 60Hz, and has a current draw of 0.95 Amps. It features a C-Frame design and an open enclosure. The motor runs at a single speed of 3000 RPM with counter-clockwise shaft end rotation. The shaft measures seven thirty-seconds by one and one-quarter inches. Mounting is achieved through studs. This motor comes with nine-inch leads and a 120VAC plug for easy electrical connection. It serves as a replacement for Nutone range hood ventilators, including the 9415 and 9425 series. The unit is CSA approved and UL listed.

• Operates at 120V, 0.95 Amps, and 60Hz with a speed of 3000 RPM.
• C-Frame design with stud mounting and nine-inch leads with a 120VAC plug.
• Ideal for bathroom exhaust fans and other ventilator applications; replaces Nutone models 9415 and 9425.

Product Highlights

The Packard EM552 is used in various ventilator applications and is essential for effective air circulation.

Product Information

Standard Information

• Brand: Packard
• Country of Origin: China

Technical Specifications

• Motor Voltage: 120
• Amps: 0.95
• Motor Type: Shaded Pole
• NEMA Frame: C-Frame
• RPM: 3000
• Shaft Dimensions: 7/32 x 1-1/4
• Rotation: CCW (Shaft End)
• Leads: 9 w/120VAC Plug
