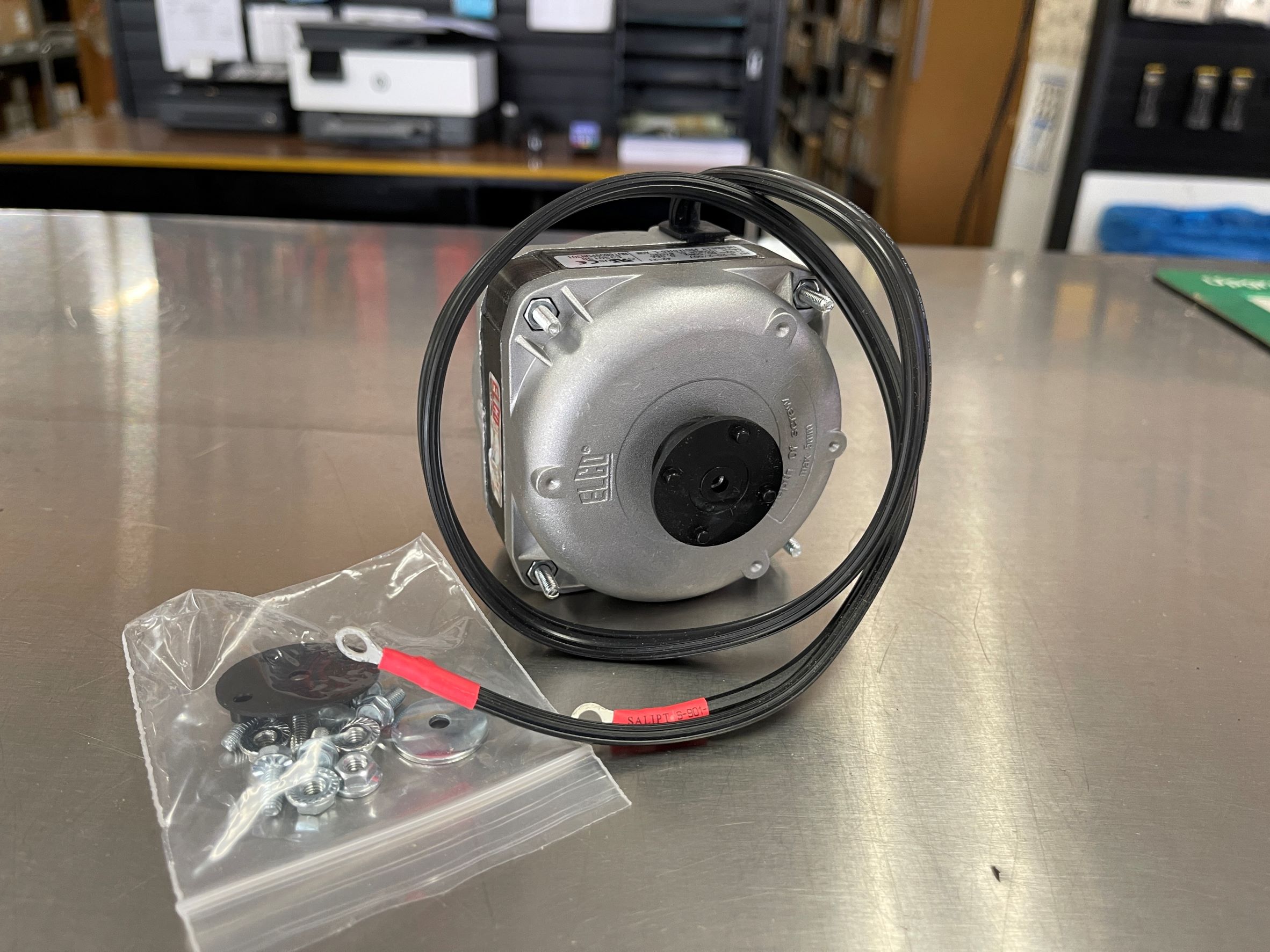

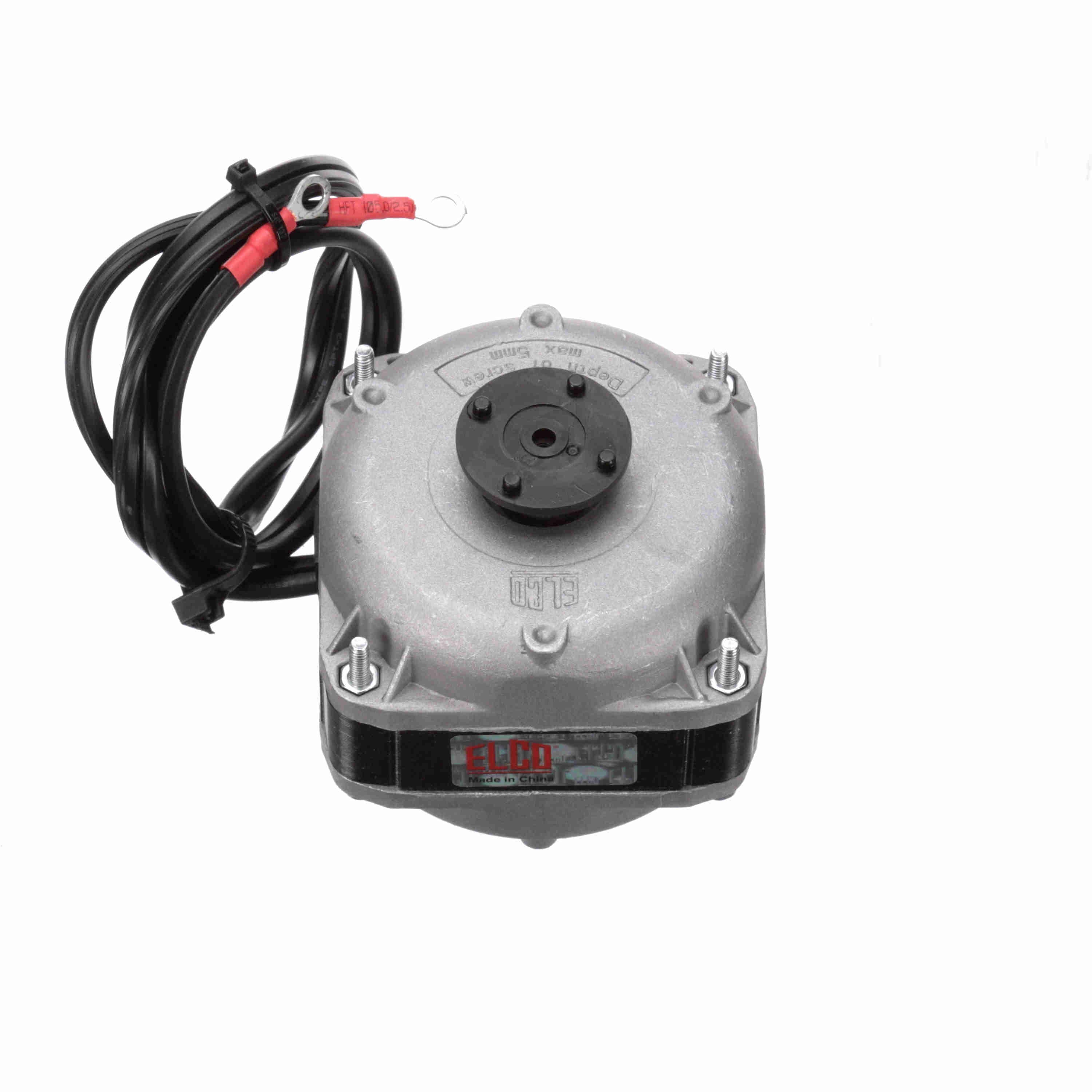

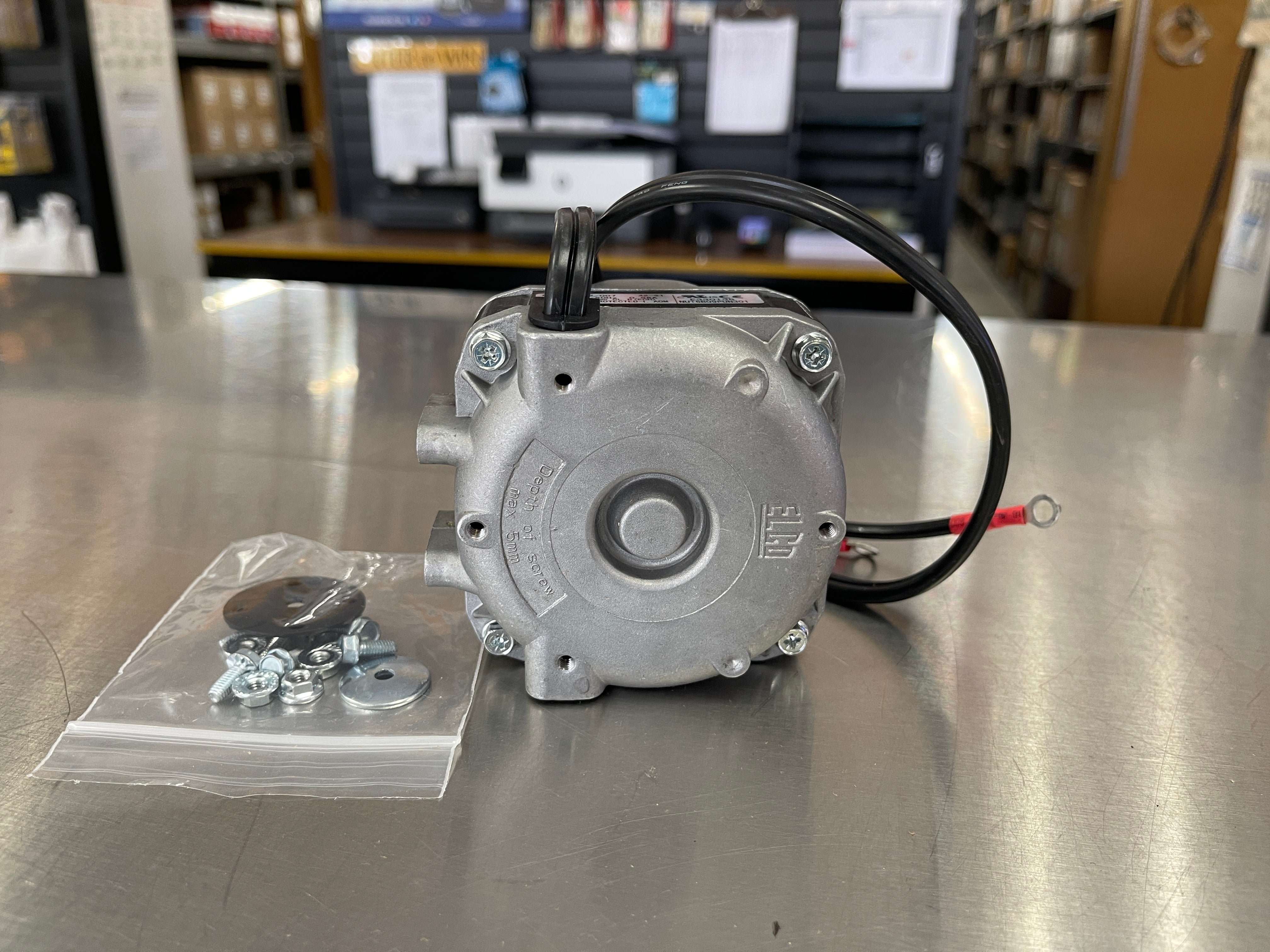

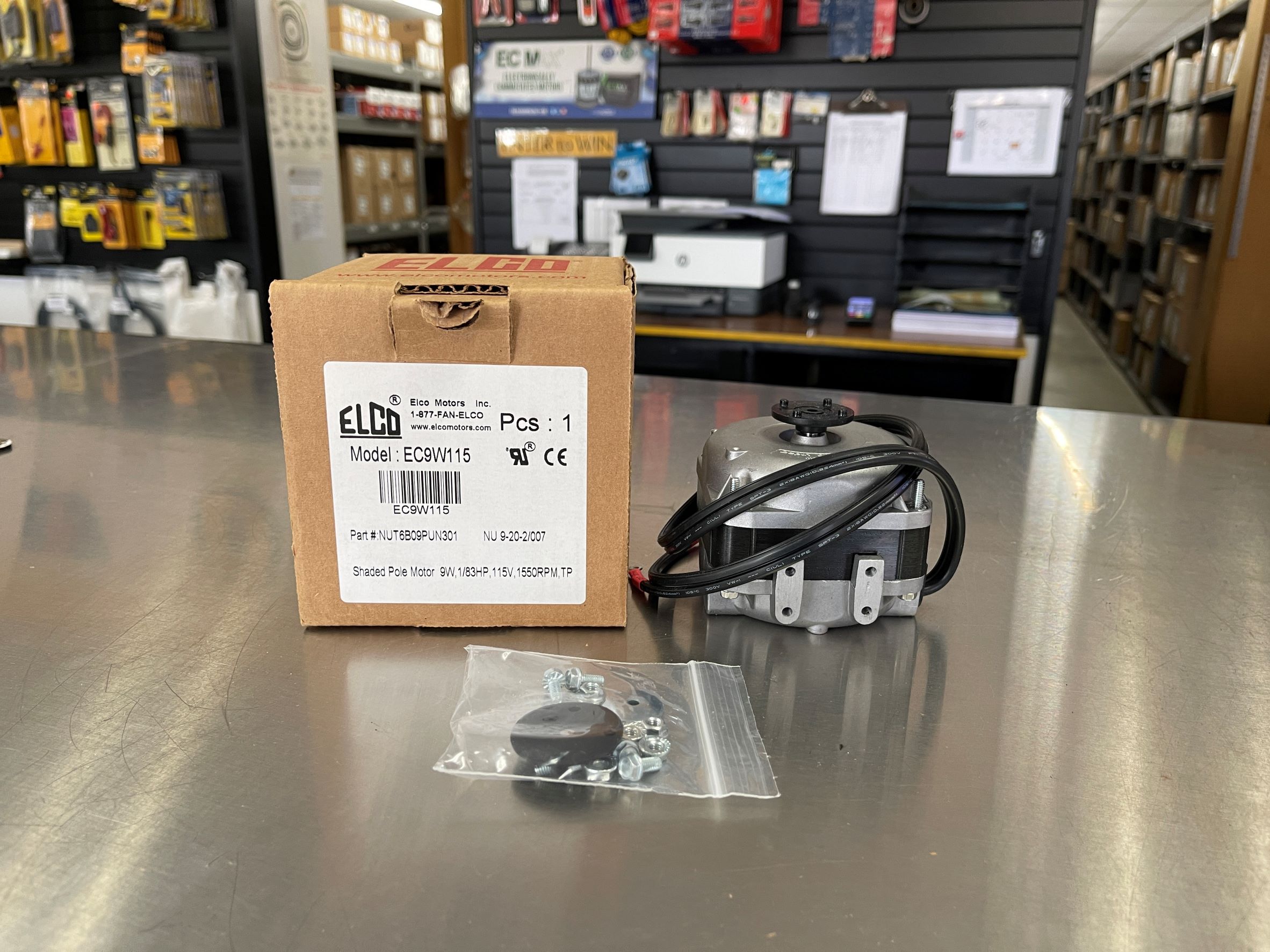

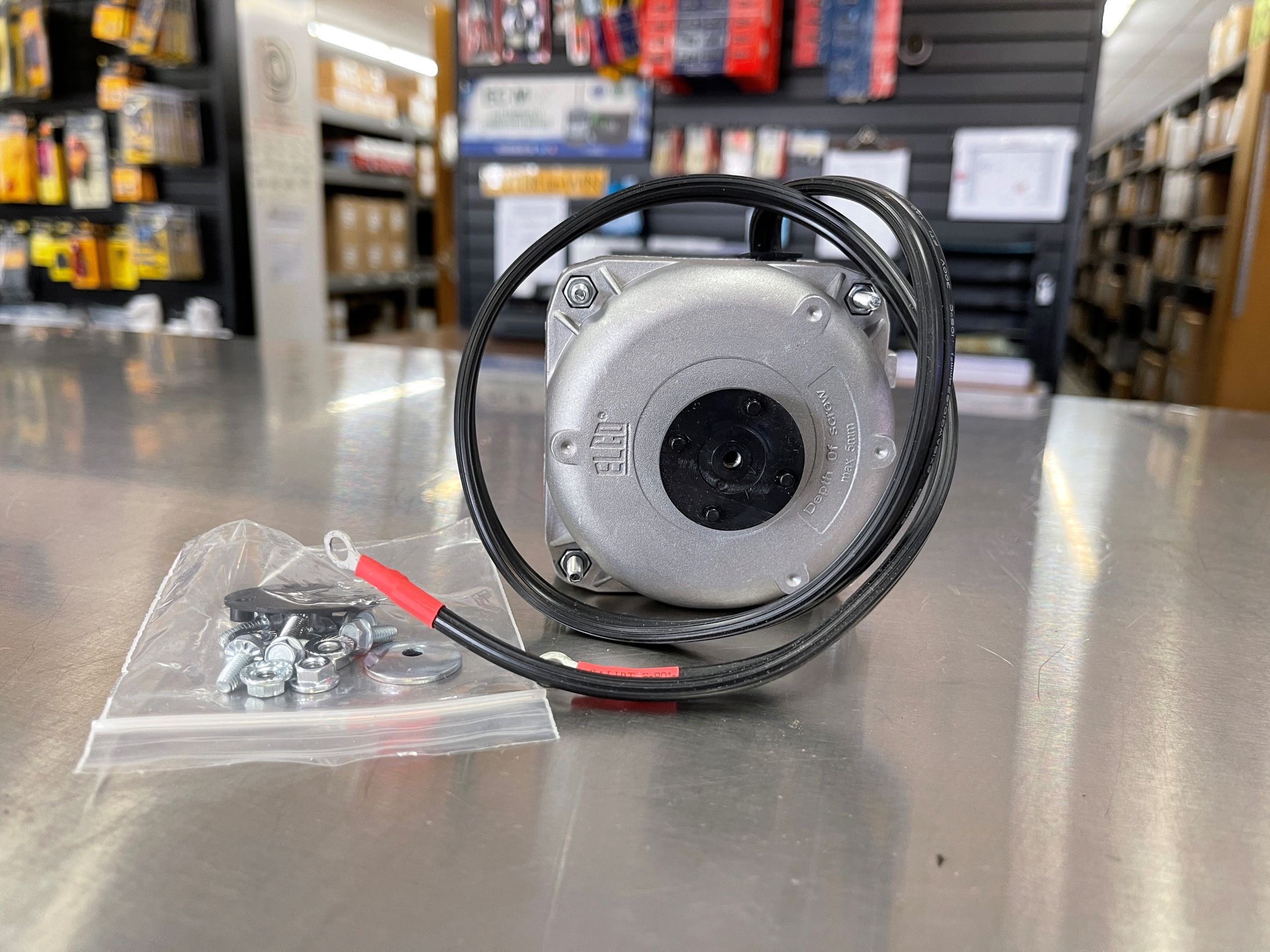

PACKARD EC9W115 Refrigeration Fan Motor 115V 9 Watt

Product Description

The PACKARD Elco EC9W115 is a refrigeration fan motor suitable for HVAC/R applications. It runs at one hundred fifteen volts with a frequency of sixty hertz and has a rated speed of one thousand five hundred fifty RPM. This is a single-phase, shaded pole motor with a totally enclosed air over enclosure, designed for continuous operation.

• Operates at one hundred fifteen volts and provides a rated speed of one thousand five hundred fifty RPM.
• Includes a Class B insulation for thermal protection.
• Features multiple mounting options for versatile installation.

Product Highlights

This motor is thermally protected and features a continuous air over duty rating. It can be mounted in various orientations, making it a flexible solution for many applications.

Product Information

Standard Information

• Brand: PACKARD
• Catalog Number: EC9W115

Technical Specifications

• HP: 1/47
• Volts: 115
• Frequency: 60
• Amps: 0.89
• RPM: 1550
• Number of Phases: 1
• Enclosure Type: Totally Enclosed Air Over
• Mounting Type: 3 tapped holes @ 120° & 2 @ 180°, Single side pad mounting
• Shaft Diameter: 0.275 inches
• Operating Temperature: -40°F to 104°F
• Certifications: UL Recognized, CSA and CE Certified
