Packard BL6414 Century Blower Motor 1/5-1/8-1/10HP REPLACEMENT S88-270, 70852 and 02431433000

Product Description

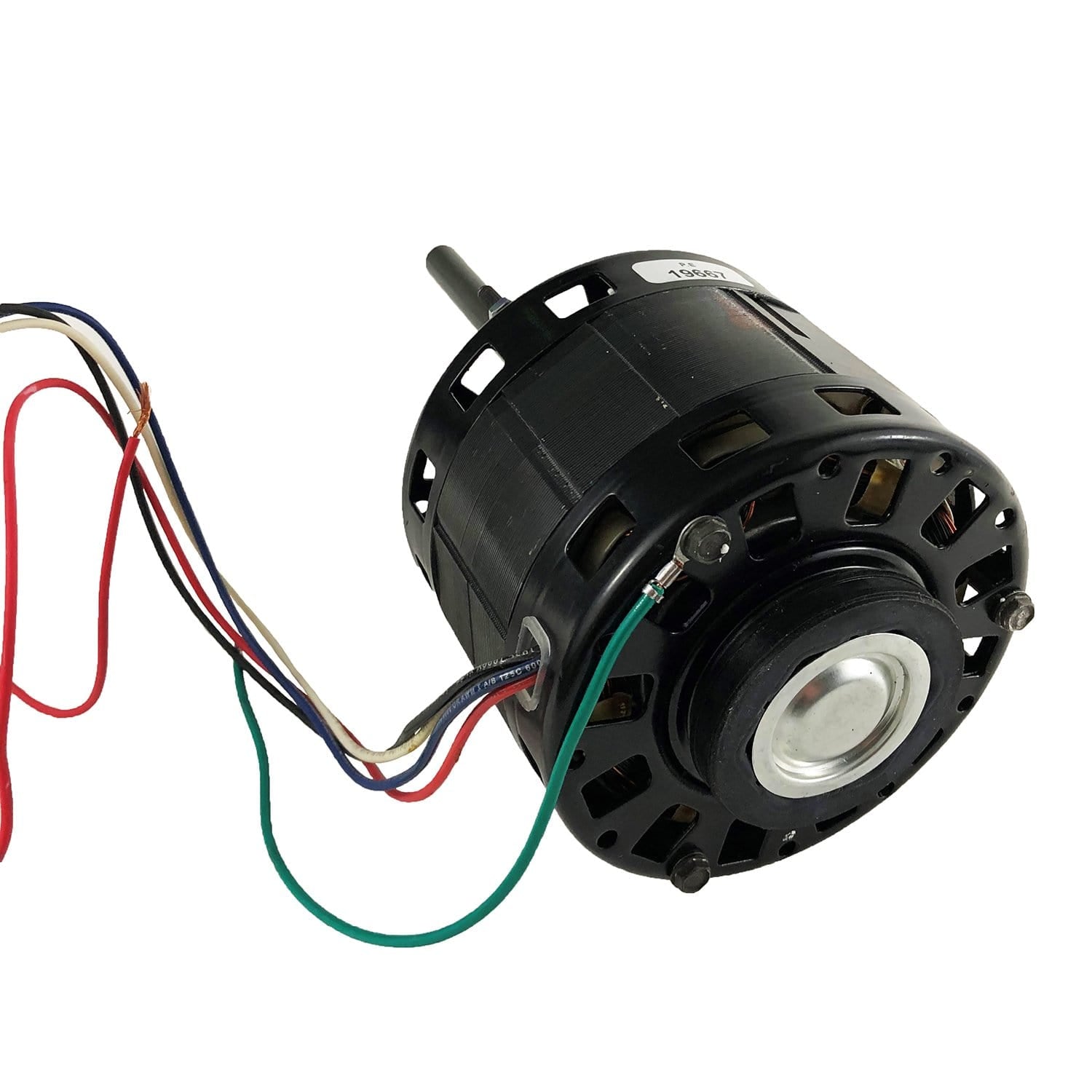

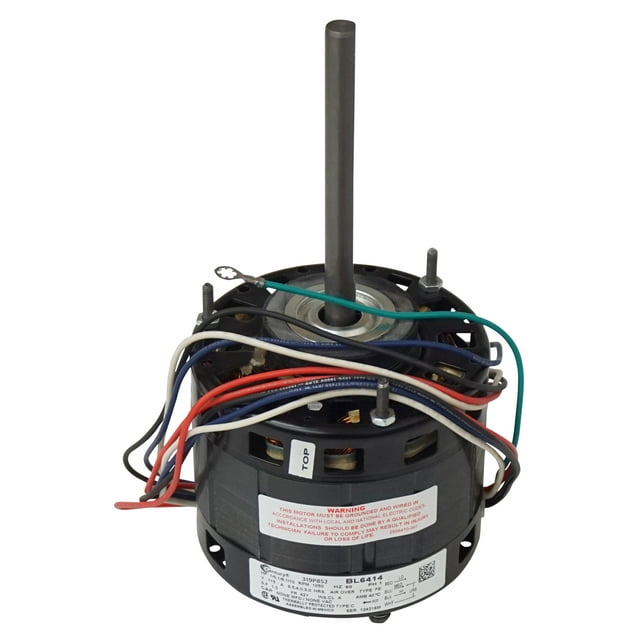

The Packard BL6414 Century Blower Motor is a shaded pole direct drive motor. This motor is a 115V, 1050 RPM, 1/5-1/8-1/10 HP motor with automatic overload protection and CCWLE rotation. It features a 1/2 x 5.5" flat shaft and sleeve bearing. It replaces S88-270, 70852 and 02431433000.

• Automatic Protector
• CCWLE Rotation
• Sleeve Bearing

Product Highlights

The Packard BL6414 is suitable for furnace blower applications. It operates at 60 Hertz and has a 42Y frame.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: BL6414
• Country of Origin: China

Technical Specifications

• Brand: Century
• MPN: BL6414
• UPC: 786674014061
• Country of Origin: China
• Model: BL6414
• Volts: 115 V
• Maximum rpm: 1050 rpm
• Electrical Type: Shaded Pole
• Phase: Single
• HP: 1/5-1/8-1/10
• Frame: 42Y
• Speeds: 3
• Enclosure: Open
• RPM: 1050
• Overload Protection: Automatic
• Rotation: CCWLE
• Amps: 6.5, 4.0, 3.0
• Bearing: Sleeve
• Ambient: 40
• Shaft: 1/2 x 5.5" Flat
• manufacturer_part_number: bl6414
• hertz: 60 Hz
• insulation class: A
• length less shaft: 3-7/8"
• material: Rolled Steel
• motor type: Shaded Pole
• mounting option: Resilient Rings
• nema frame: 42Y
• service factor: 1
• shaft dimensions: 1/2 x 5-1/2
• voltage: 115 V
