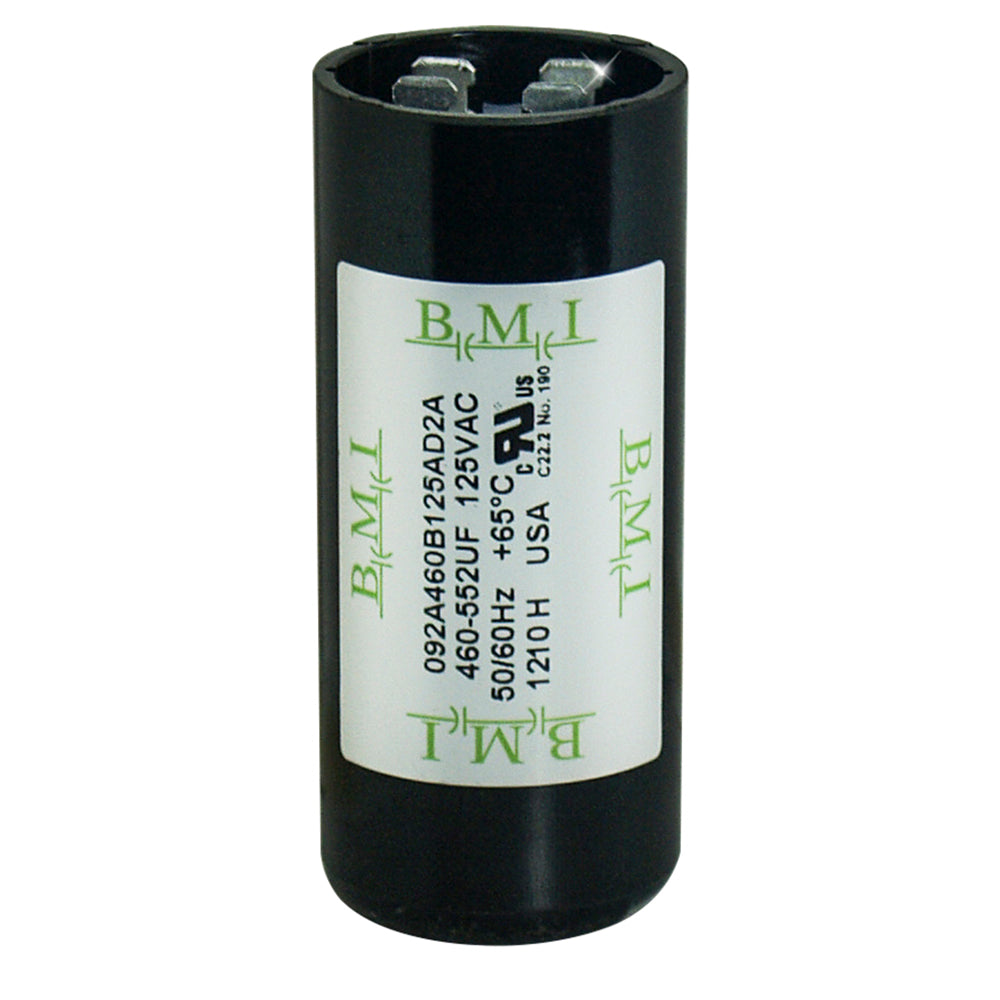

Packard BC460-125 Motor Start Capacitor

Product Description

The Packard BC460-125 is a motor start capacitor used in applications requiring a capacitance range of 460-552 uF. It operates efficiently at a maximum voltage of 125V and is suitable for 50/60 Hz frequency. The capacitor is made with a round phenolic casing and equipped with 1/4-inch quick disconnect terminals. This component meets UL 810 standards and is capable of functioning within temperature ranges from -40 to 65 degrees Celsius.

• Capacitance: 460-552 uF
• Temperature range: -40 to 65 degrees Celsius
• Durable round phenolic case

Product Highlights

This capacitor offers reliable start-up for motors, ensuring efficiency and safety. It is packed individually to maintain quality and protection during transport.

Product Information

Standard Information

• Brand: Packard
• MPN: BC460-125

Technical Specifications

• Capacitance: 460-552 uF
• UL Certification: Recognized
• Case Type: Round Phenolic
• Length: 3-3/8 inches (+.02/- .03)
• Frequency: 50/60 Hz
• Maximum Operating Temperature: 65 degrees Celsius
• Maximum Operating Voltage: 125 V
• Minimum Operating Temperature: -40 degrees Celsius

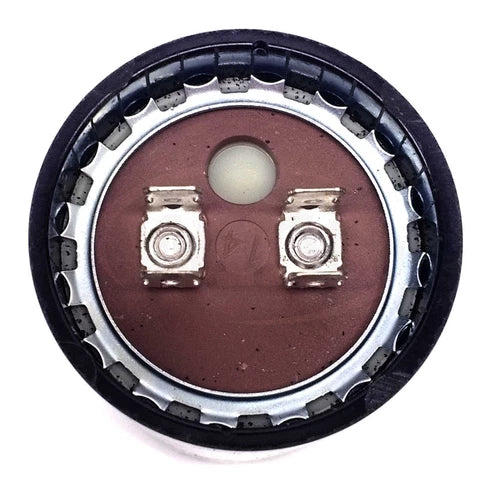

• Terminals: 1/4-inch Quick Disconnect
