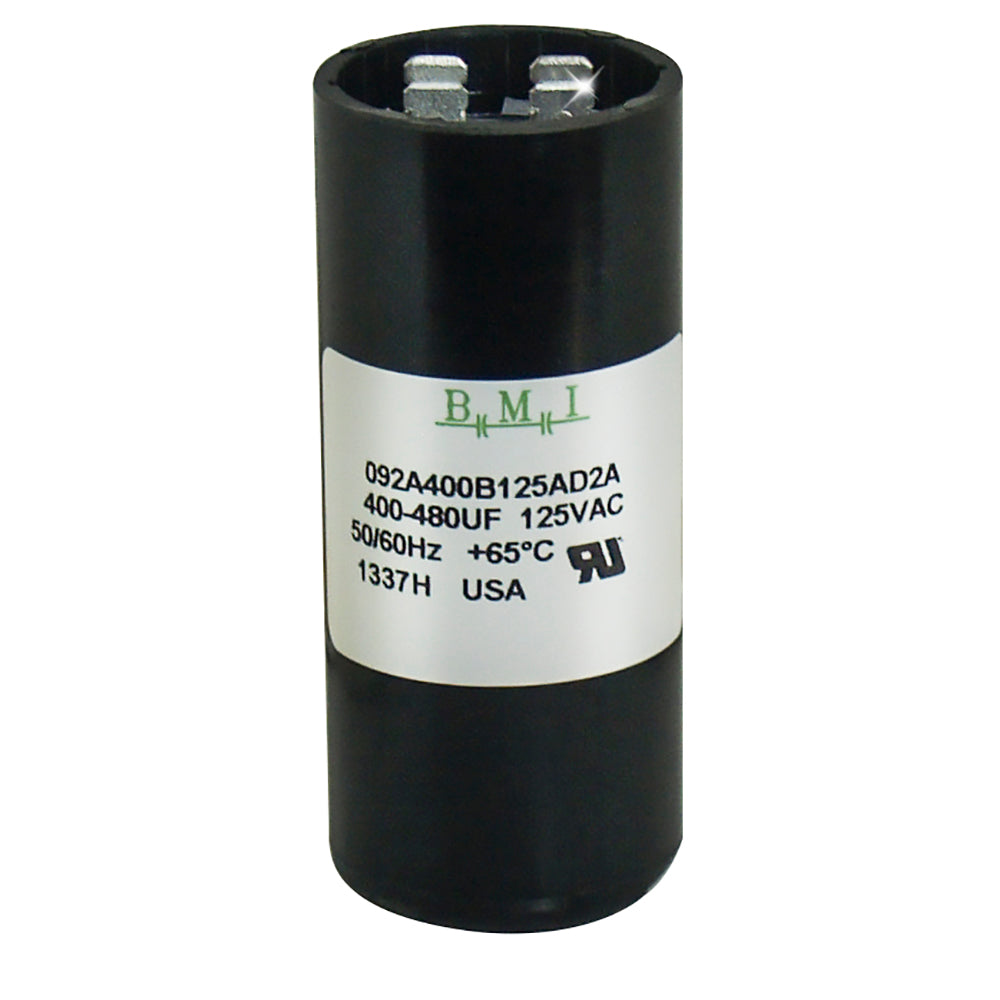

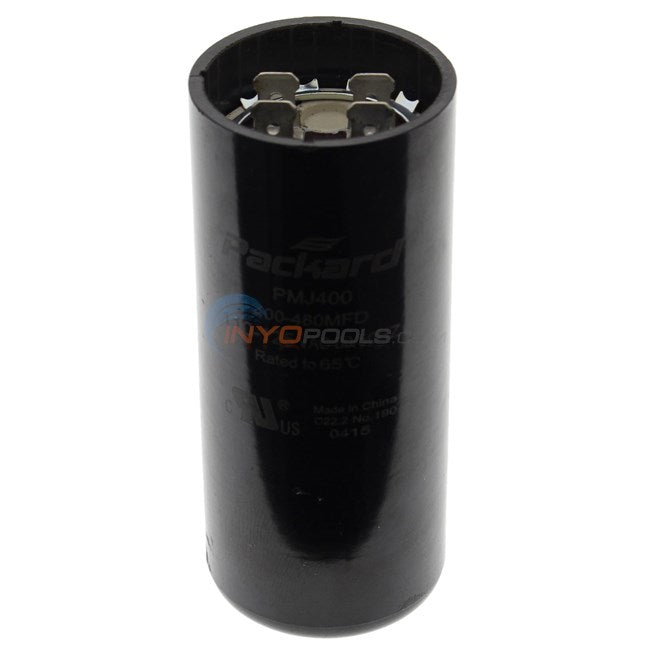

Packard BC400-125 PACKARD BC400-125 400-480 MFD Start Capacitor

Product Description

The Packard BC400-125 is a start capacitor with a voltage rating of 110 to 125 Volts. It is designed for use in motor starting circuits and has a capacitance of 400 to 480 MFD. This capacitor operates at frequencies of 50 and 60 Hz and features a durable plastic case that is moisture and oil resistant.

• Capacitance range: 400-480 MFD
• Temperature tolerance: -40 to 65 degrees Celsius
• UL and CUL approved under UL 810

Product Highlights

This capacitor provides reliable performance for motor starts and can handle a maximum of 20 starts per hour. The quick disconnect terminals simplify installation and maintenance.

Product Information

Standard Information

• Brand: Packard
• MPN: BC400-125

Technical Specifications

• Capacitance: 400-480 MFD
• Operating Temperature: -40 to 65 degrees Celsius
• Voltage: 110-125 Volts

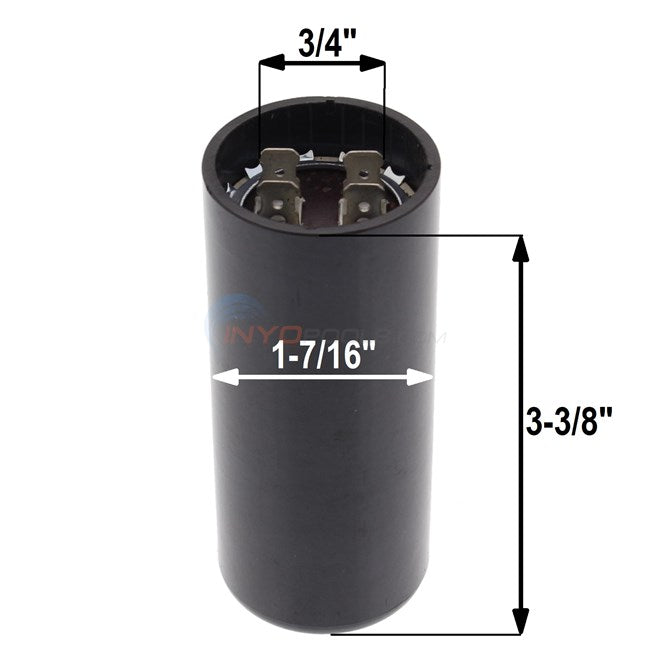

• Diameter: 1-7/16 inches
• Height: 3-3/8 inches
• Frequency: 50/60 Hz
• Terminals: 1/4 inches Quick Disconnect
• Compliance: EIA Standard RS-463 type 2
