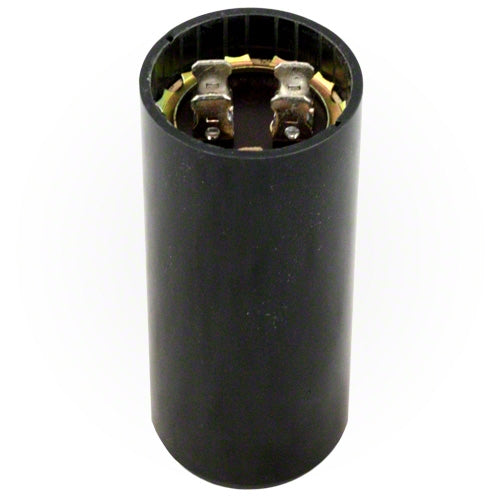

Packard BC340-125 Start Capacitor 110-125 Volts 340-408 MFD

Product Description

The Packard BC340-125 is a start capacitor designed for motor starting applications. This capacitor operates efficiently with a capacitance range of 340-408 MFD and a voltage rating of 110-125 volts. It is suitable for use in 50/60 Hertz systems and can achieve a start in three seconds, allowing for up to twenty starts per hour.

• Capacitance: 340-408 MFD, Voltage: 110-125 Volts
• Operating temperature range: -40 to 65 degrees Celsius
• Rated for 20 starts per hour

Product Highlights

The Packard BC340-125 meets Electronic Industries Association (EIA) Standard RS-463 type 2 and is recognized by UL and approved by CUL.

Product Information

Standard Information

• Diameter: 1-7/16 inches
• Height: 3-3/8 inches

Technical Specifications

• MFD: 340-408
• Volts: 110 - 125
• Diameter: 1-7/16 inches
• Height: 3-3/8 inches
• Hertz: 50/60
• Rated Start: 3-second start
• Starts per hour: 20
• Operating temperature range: -40 to 65 degrees Celsius
