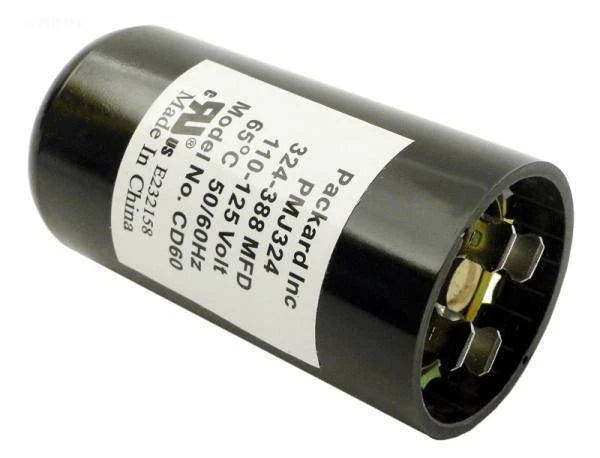

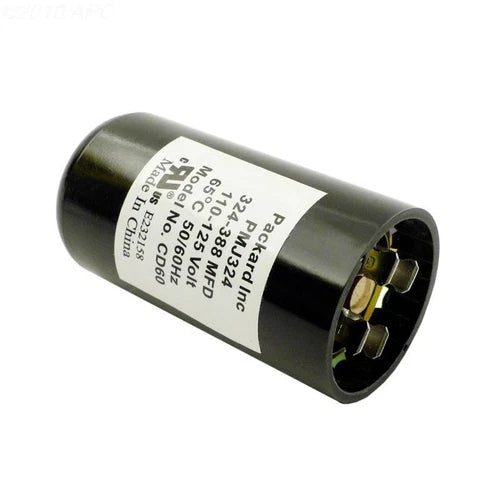

PACKARD BC324-125 Start Capacitor 324-388 MFD 110 - 125 Volts

Product Description

The PACKARD BC324-125 is a reliable motor start capacitor designed for efficient operation. It features a capacitance range of 324-388 MFD and a voltage rating from 110 to 125 volts. This component is constructed with aluminum electrolytic material and operates effectively within a frequency of 50/60 Hz.

• Supports up to twenty starts per hour
• Designed for a three-second start
• Operational temperature range from -40 to 65 degrees Celsius

Product Highlights

Ideal for HVAC and other motor start applications, the PACKARD BC324-125 ensures reliable performance in various environments. This component is UL recognized and CUL approved, adhering to EIA Standard RS-463 type 2.

Product Information

Standard Information

• Brand: PACKARD
• MPN: BC324-125

Technical Specifications

• MFD: 324-388
• Voltage: 110 - 125
• Diameter: 1-7/16 inches
• Height: 2-3/4 inches
• Frequency: 50/60 Hz
• Material: Aluminum
• Maximum Operating Temperature: 65 °C (149 °F)
• Minimum Operating Temperature: -40 °C (-40 °F)
